Select


Applicable to library's version 1.0

The Select component allows to indicate one of the In slots to pass its value to the Out slot. In slots receive numeric values. The In slot to pass the value is indicated in the Select slot—the Select slot receives values from 0 to 9, 0 indicating the InA to pass the value to the Out slot, 1 indicating the InB, 2 indicating the InC, etc.

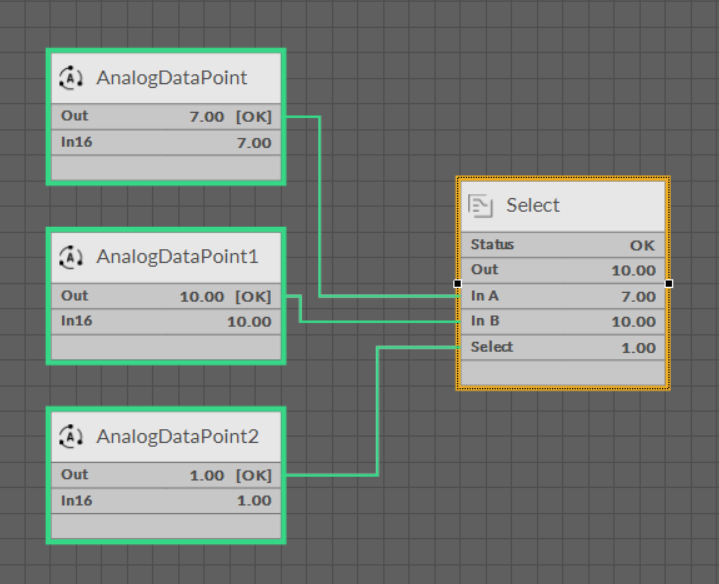

The Select component

Slots

The Select component has the following slots:

  • Status: indicates the current status of the component (OK, Fault);
  • Out: the value passed from the In slot indicated in the Select slot;
  • InA⁠-InJ: 10 input slots;
  • Select: indicates the number of input, which passes the value to the Out slot.
