Installation

PA-LED10

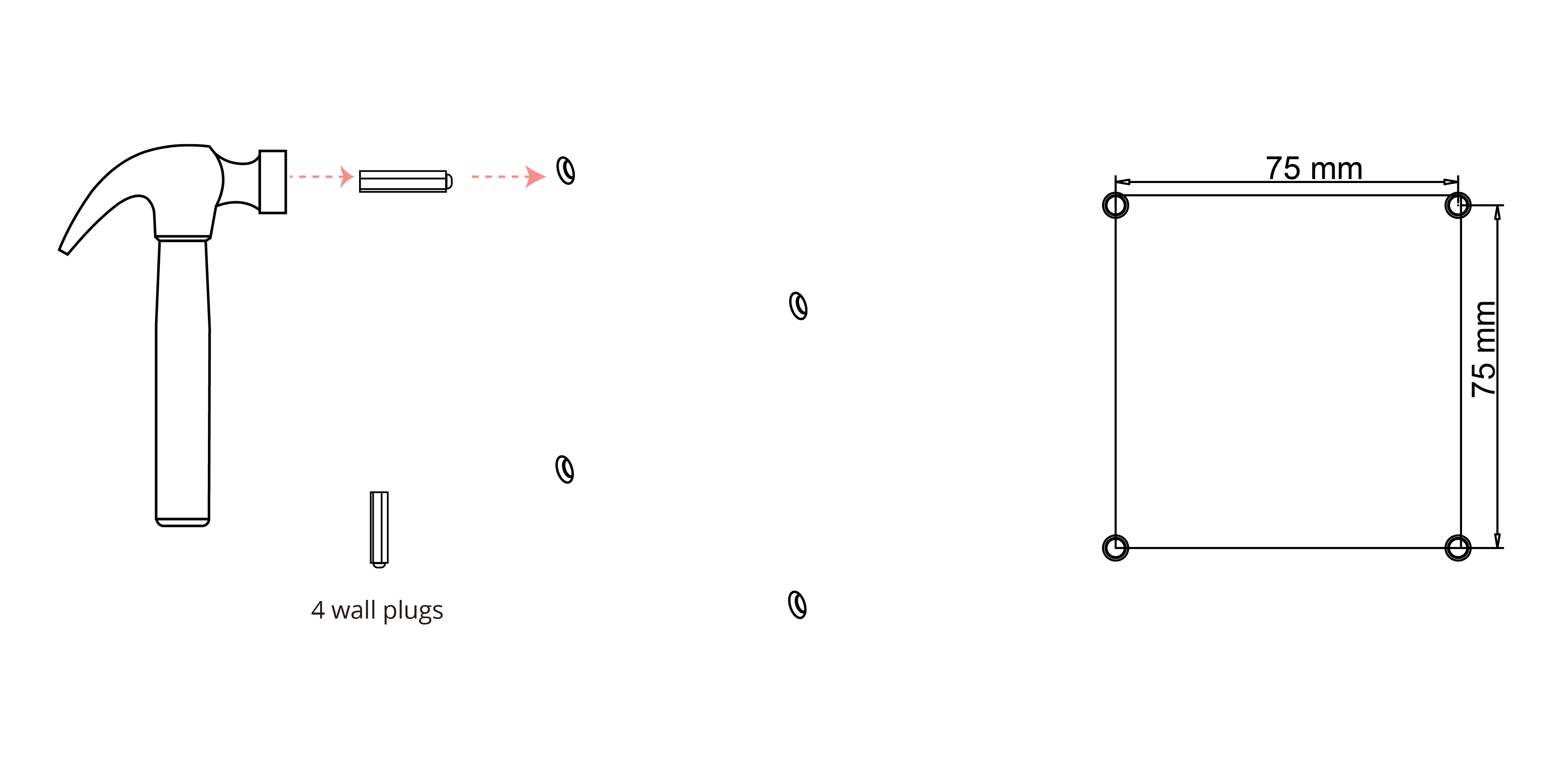

  • Insert 4 expansion plugs in the wall, 75 mm separate from each other:

Mounting PA-LED 01.png

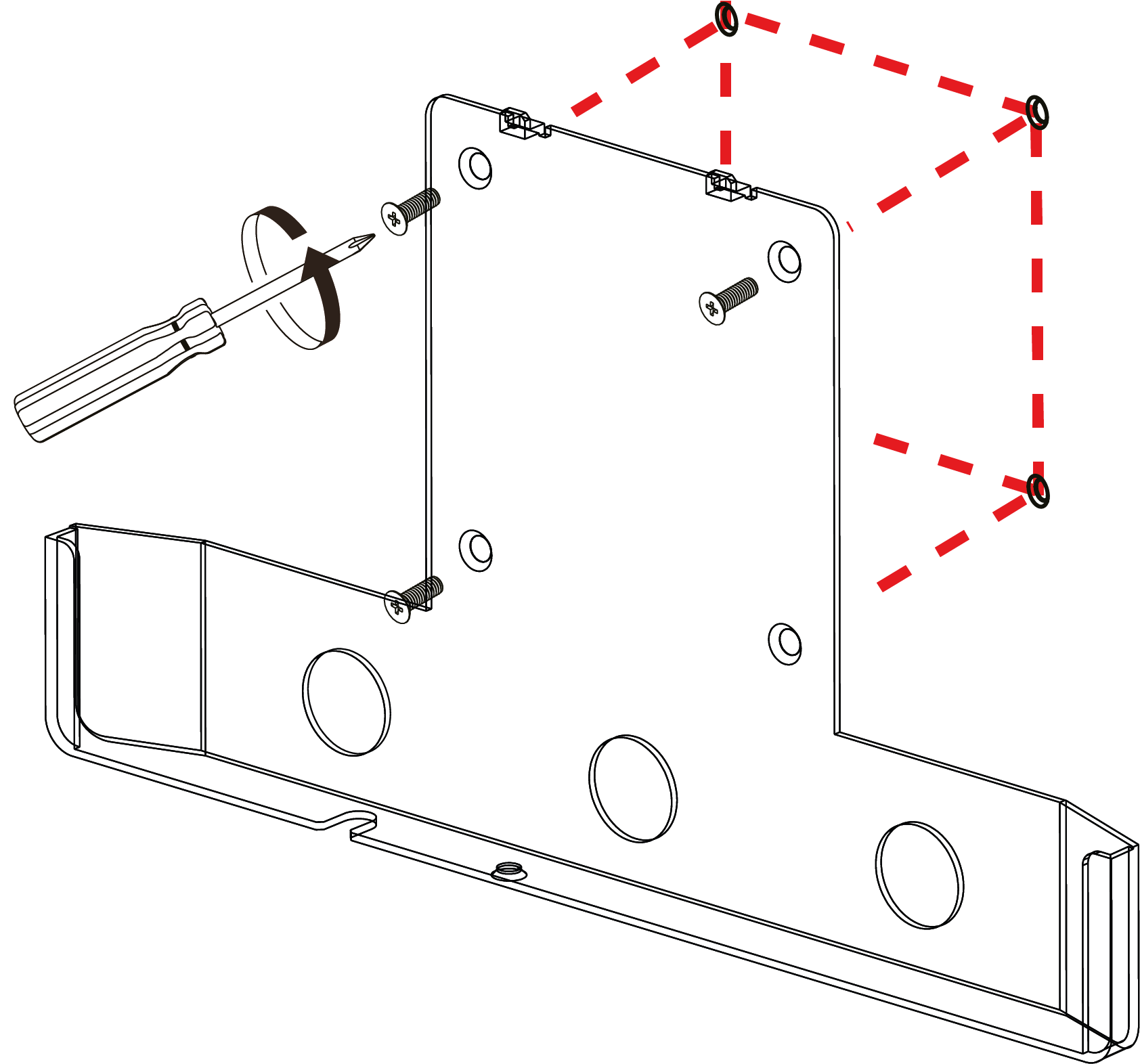

  • Screw the metal mounting plate to the expansion plugs:

Mounting PA-LED10 02.png

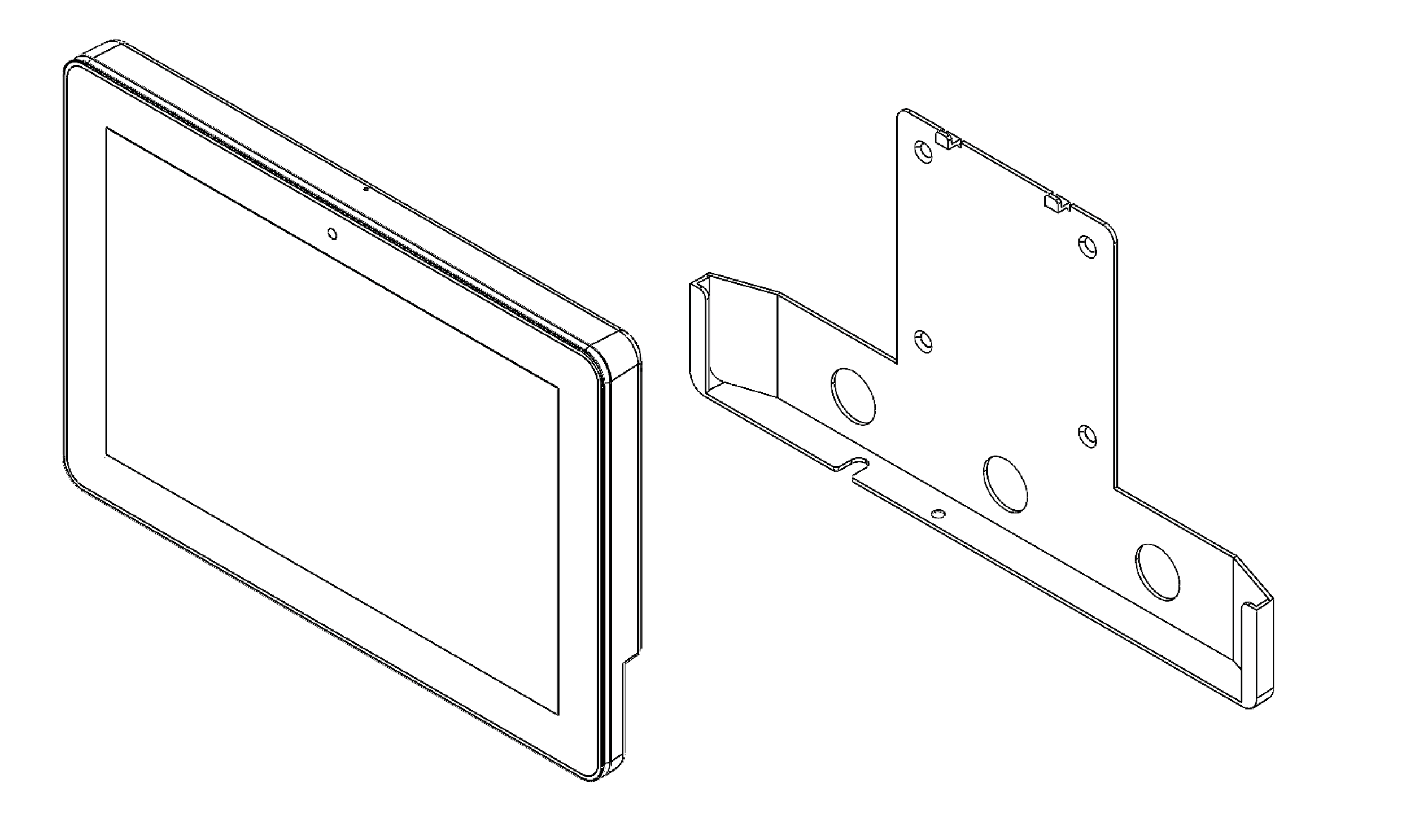

  • Connect the power/communication cables and mount the panel on the mounting plate:

Mounting PA-LED10 03.png

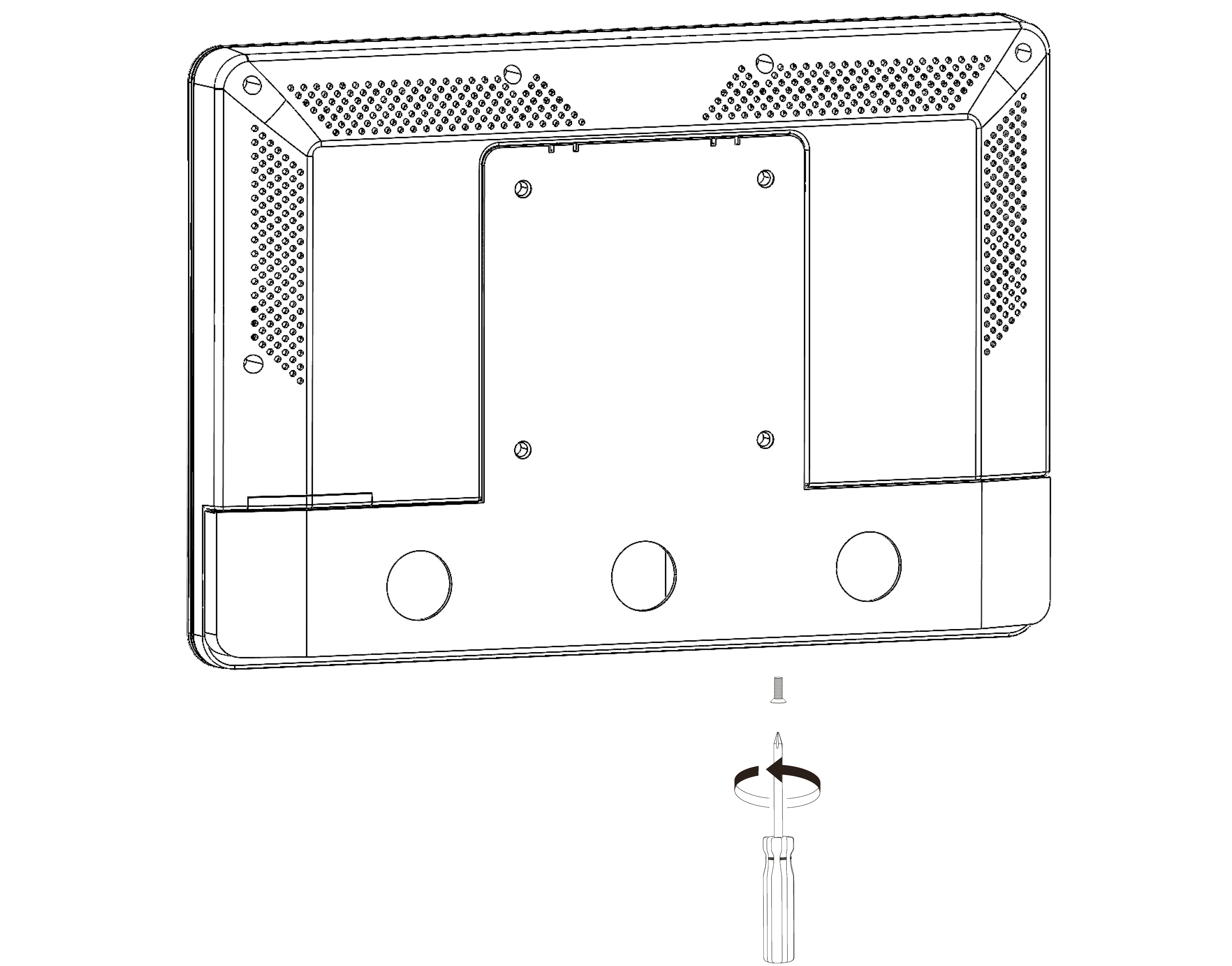

  • Screw in the retaining screw to secure the panel:

Mounting PA-LED10 04.png

PA-LED13

  • Insert 4 expansion plugs in the wall, 75 mm separate from each other:

Mounting PA-LED 01.png

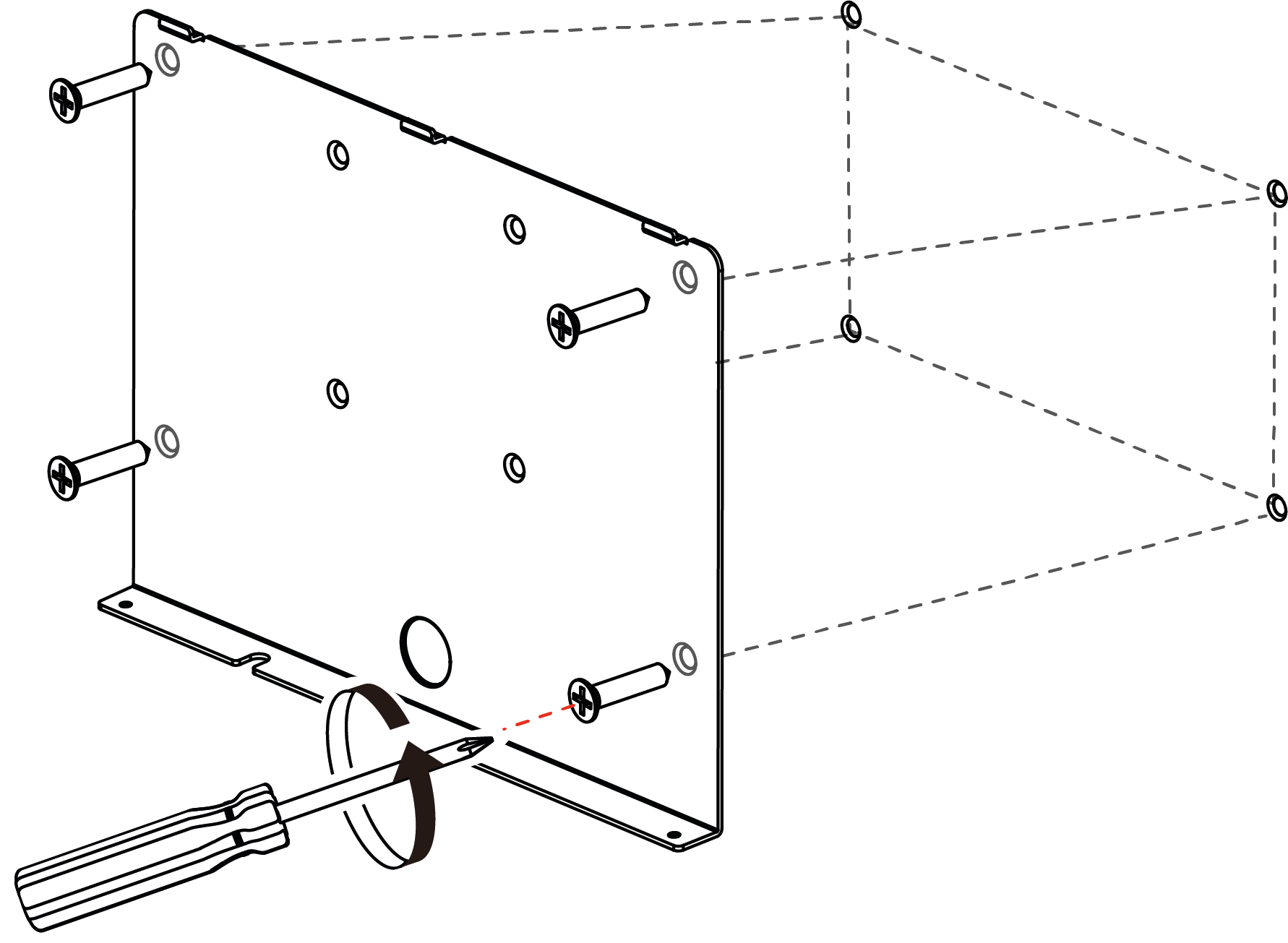

  • Screw in the retaining screw to secure the panel:

Mounting PA-LED13 02.png

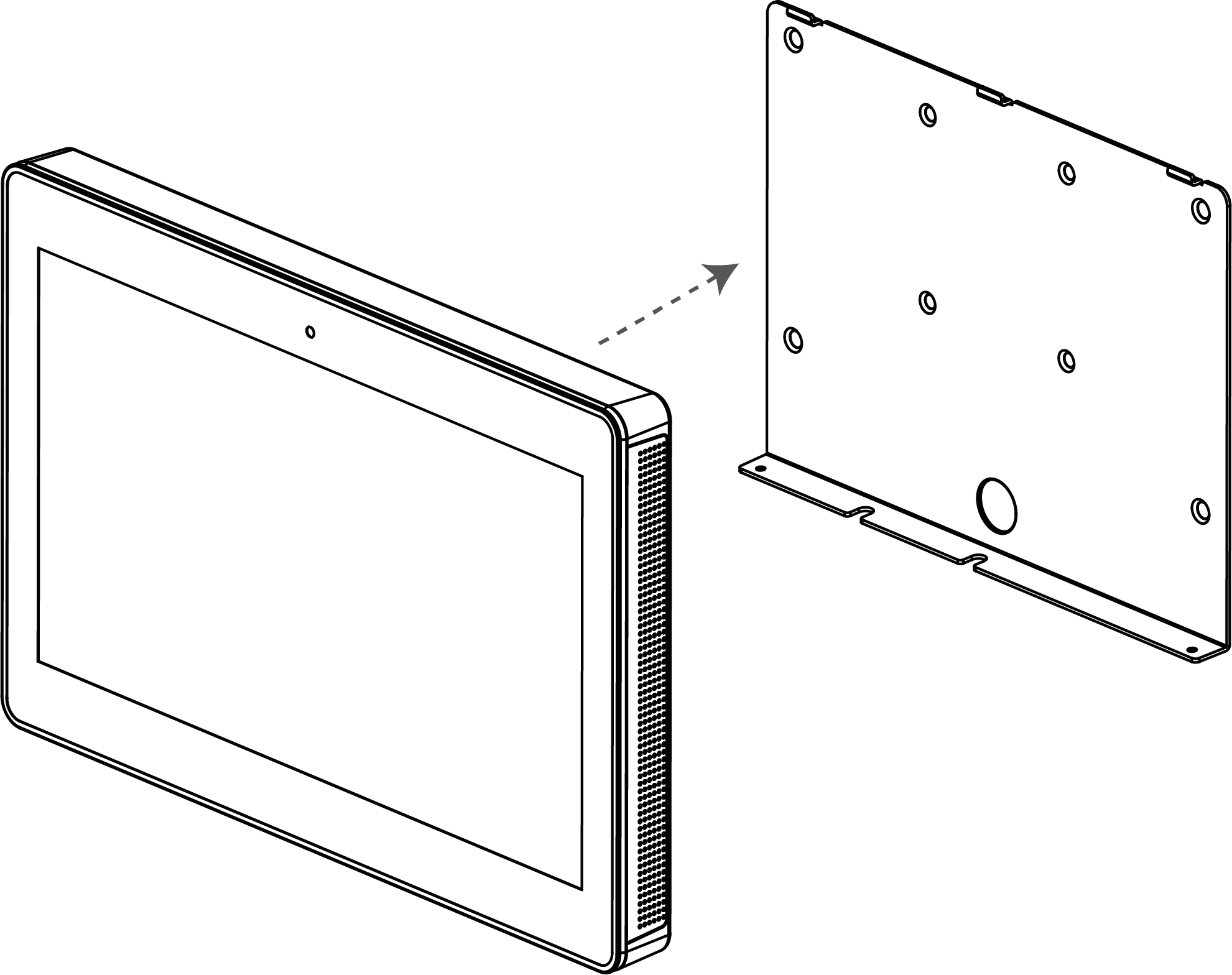

  • Connect the power/communication cables and mount the panel on the mounting plate:

Mounting PA-LED13 03.png

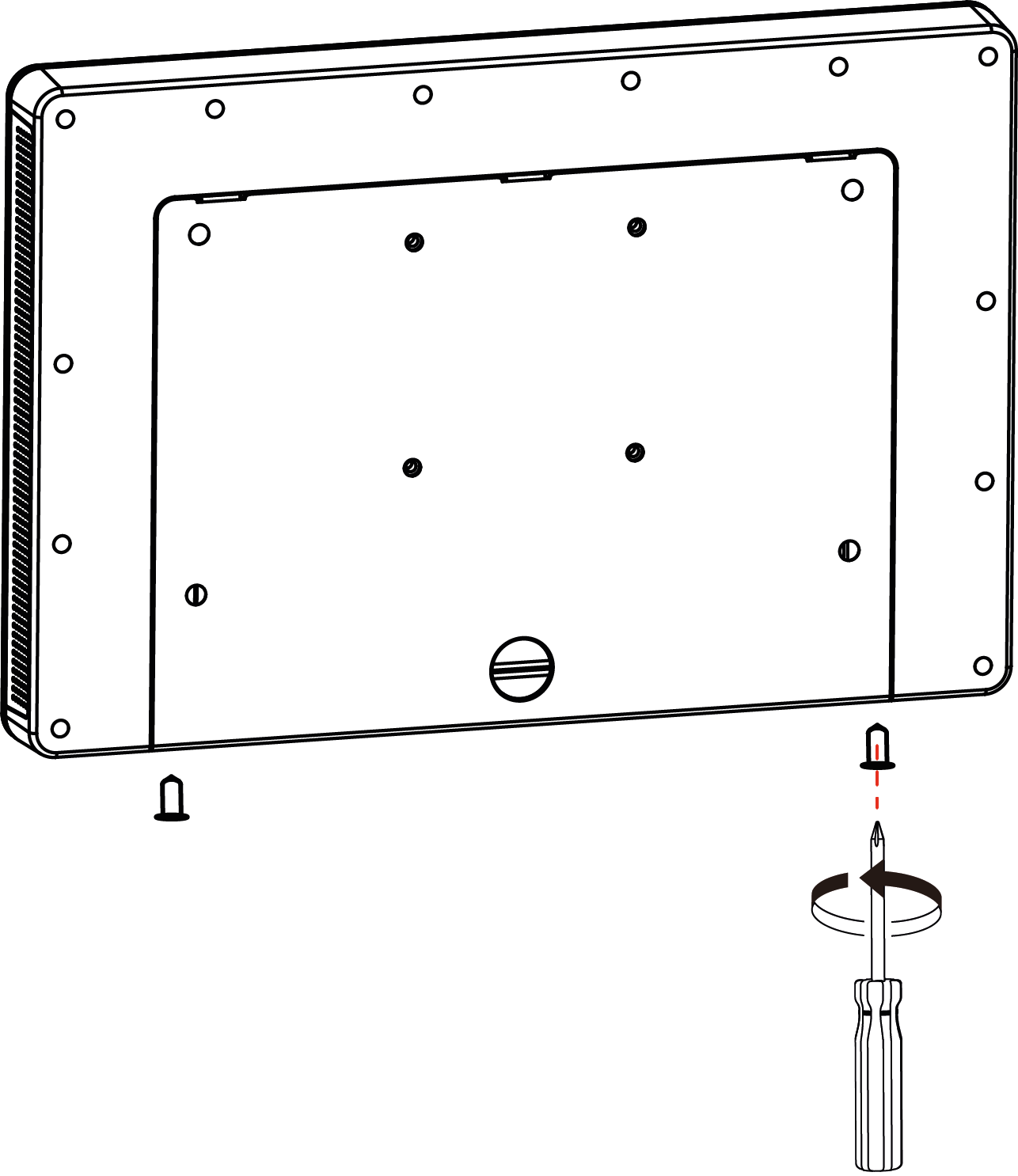

  • Screw in the retaining screw to secure the panel:

Mounting PA-LED13 04.png
