Hardware Specification
The RAC18-IP is equipped with:
18 inputs and outputs;
2 Ethernet fail-safe protected ports;
RS485 interface (RJ45 and screwless connectors).

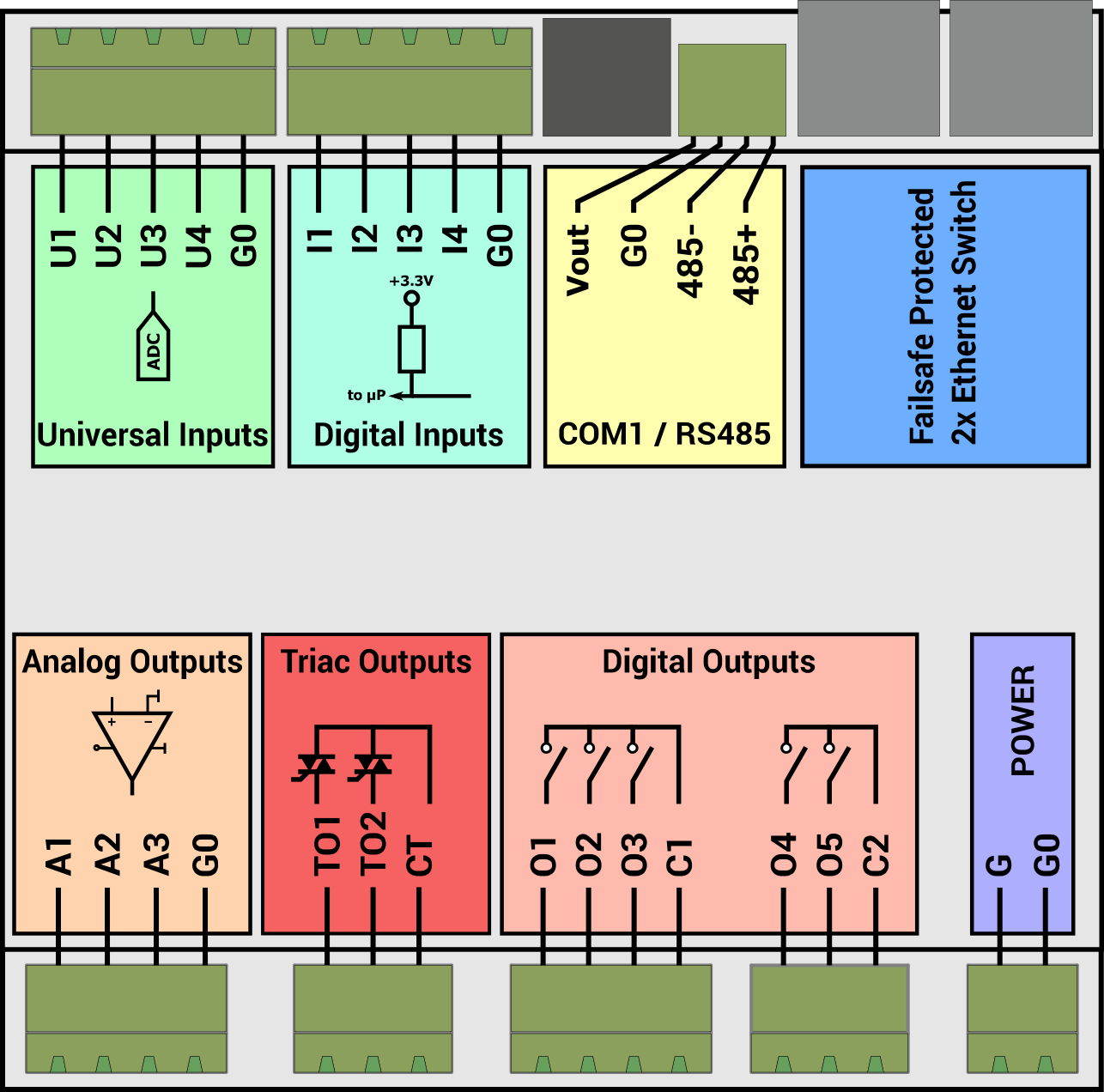

Block diagram

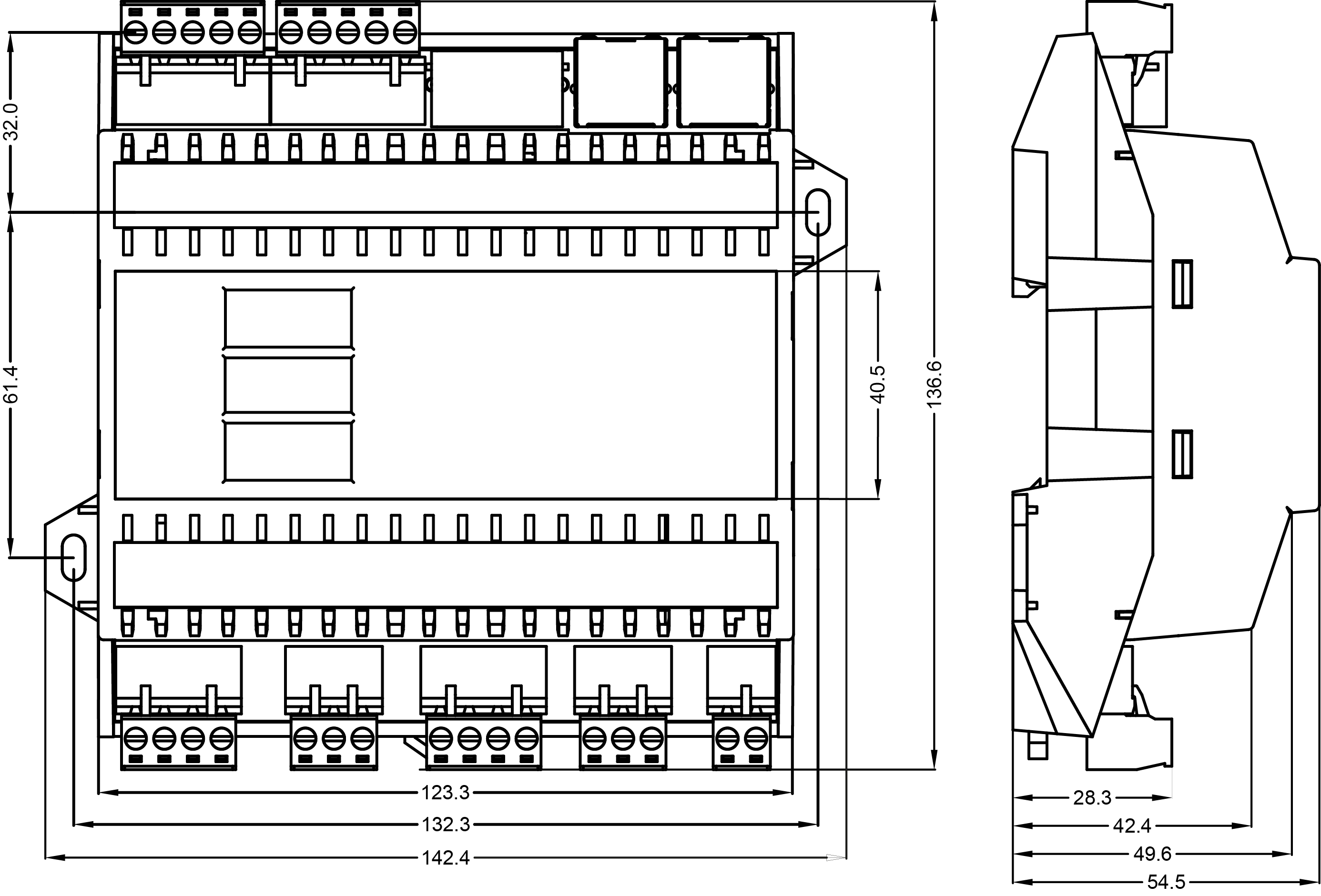

Dimensions
RAC18-IP dimensions

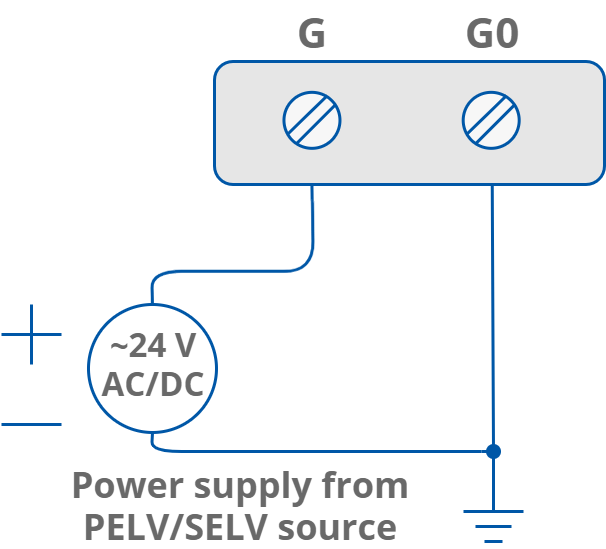

Power Supply
The RAC18-IP device requires 24 V AC/DC power supply.
Power supply
It is also possible to power the controller using a USB cable (5 V power supply).
Warning!
5 V USB power supply does not support AO/TO outputs in the controller.
