RS485 Configuration

This page allows to enter configuration parameters and show information of the device’s COM1 port.

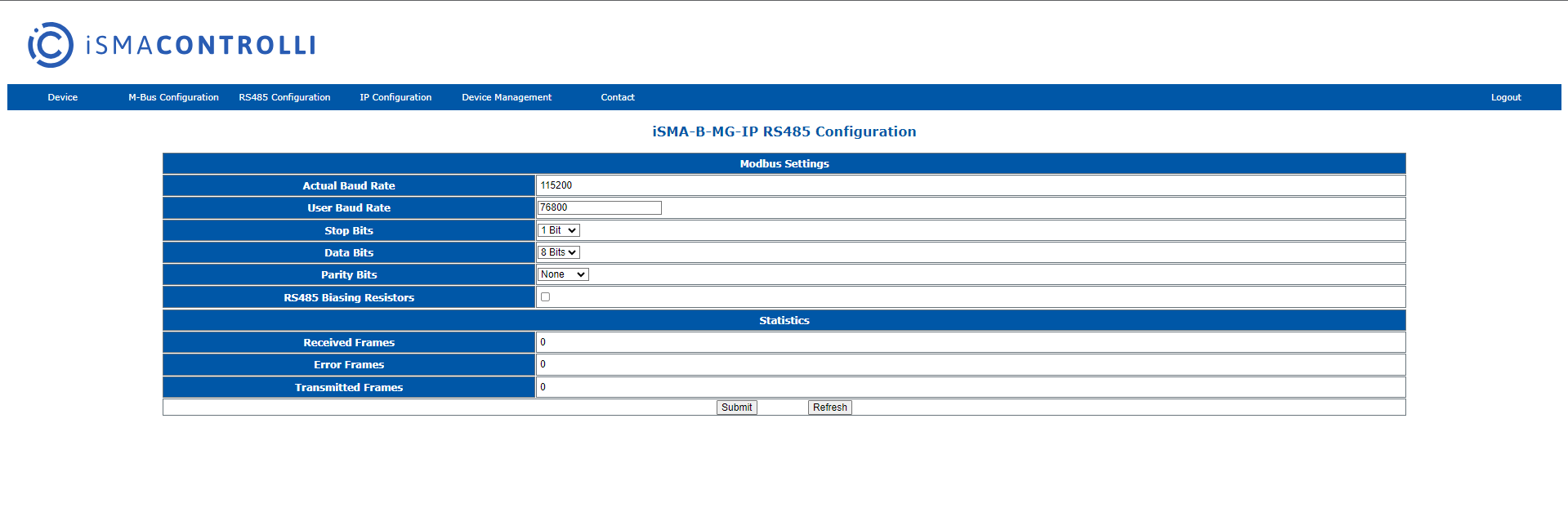

RS485 configuration page

This page allows to set parameters such as:

Actual Baud Rate (read-only): the RS485 baud rate within the range from 2400 to 115200;
User Baud Rate (read/write): allows to set the baud rate by the user; the value overwrites the baud rate set on the DIP switch;
Stop Bits: read/write, the number of stop bits (1 or 2);
Data Bits: read/write, the number of data bits transmitted in a single byte (7 or 8);
Parity Bits: read/write, transmission protection as a parity bit added before stop bit (bits);
RS485 Biasing Resistors: read/write, activation of the biasing resistors;
Received Frames: read-only, the number of received frames;
Error Frames: read-only, the number of error frames
Transmitted Frames: read-only, the number of transmitted frames.

WARNING! To save changes, please use the Submit button.
