Web Users
Logging into the visualization web server requires setting up dedicated web users in the User Manager view. By default, one user is pre-installed in the users service:
username: user
password: 1357
Adding and Managing Web Users
The User Manager view (users service in the Workspace Tree) allows adding new web users, setting their permission levels, changing passwords, and removing. The bottom window of the User Manager view is the Web Users view. Web users are designed to log in to the AAC20 visualization web server.

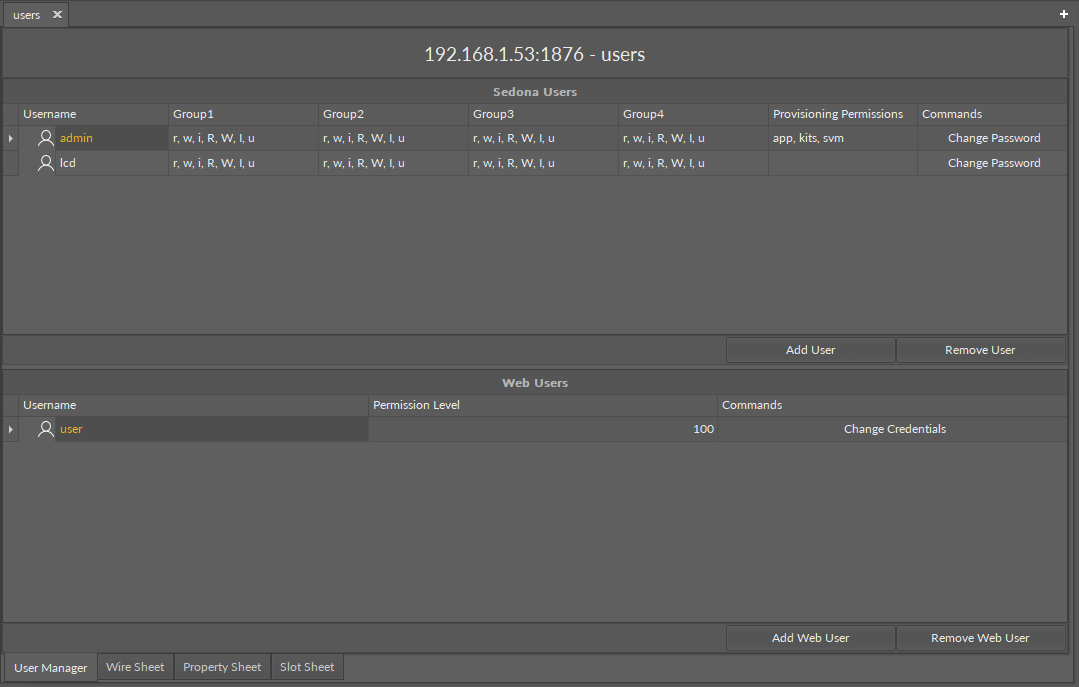

User Manager
The view has 3 columns:
Username: displays a username of the web user;
Permission Level: allows to set a permission level for the user;
Note: The permission level of the user is correlated with the permission level of schedules determined in the Visualization_configurator.xlsm file. If the user's permission level is lower than the schedule's required level of permissions, the schedule will not be displayed for this user after logging in to the visualization web server.
Commends: allows to set new credentials for a user.
Note: In order to change a username, it is required to change password at the same time too.
Adding
To add new web user, press the Add web user button in the right bottom corner of the view. It is possible to add up to 10 web users with different permission levels.

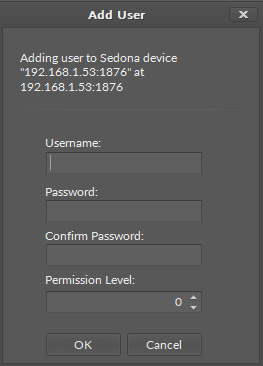

Dialog window for adding web user
Set the user’s username, password, and permission level. Confirm with OK.
Changing Credentials
To change the web user’s credentials, press the Change Credentials button in the Web Users view:
Changing credentials option
Note: In order to change a username, it is required to change password at the same time too.
Removing
To remove the web user, press the Remove Web User button in the Web Users view and confirm with OK:
Removing web user
