BACnet Network

The BACnet Network is the main component that provides the BACnet protocol in the iSMA-B-AAC20 controller, and it should be placed under the Drivers folder.

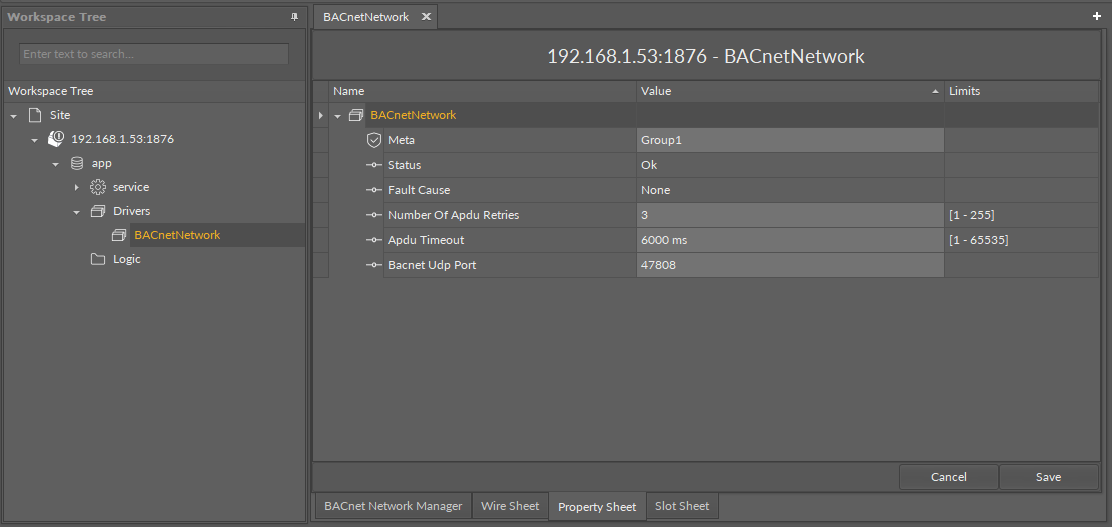

BACnet Network component

The BACnet Network component has the following slots:

  • Status: component's current status;

  • Fault Cause: fault cause description;

  • Bacnet Udp Port: Udp port number in IP network (default 47808);

  • Apdu Timeout: time during which other BACnet devices should response to the AAC20 request (by default, 6000 ms);

  • Number Of Apdu Retries: read/write objects retries number.

WARNING! All other BACnet network components such as Local Device, Remote IP Master, Remote MS/TP Master, must be placed under this component.
