Time Configuration

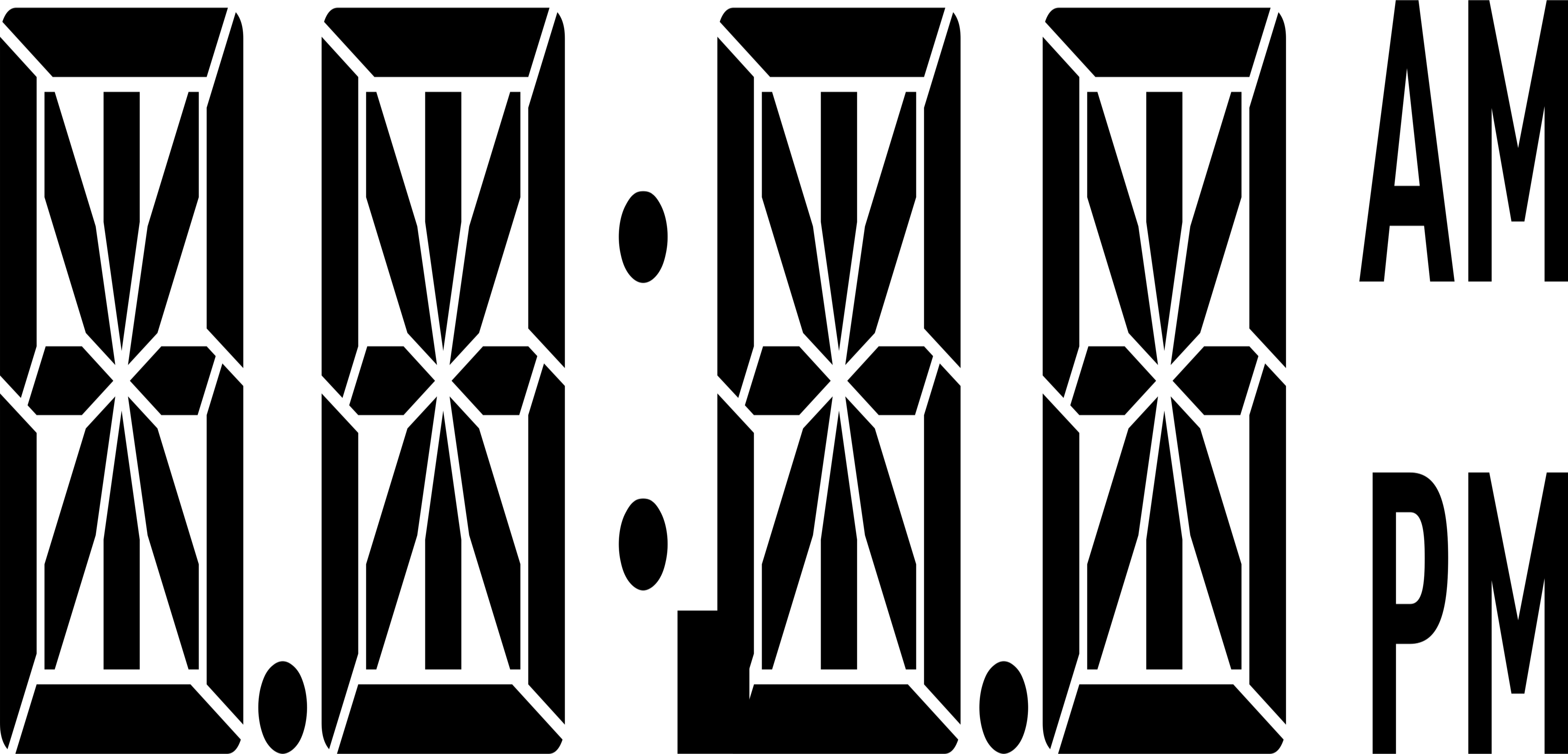

The time (if activated) is displayed on the 14-segment display block. Immediately after the device restart, the clock is not displayed. It becomes visible once the room panel receives a first message with a correct time value.
HOURS (AO1)
The HOURS is an Analog Output object number 1, which value contains an actual hour value. The 12 h/24 h mode is determined by the DEVICE_CONFIGURATION_FORMAT BO 1 (default value: 24 h). If the clock is set to the 12 h format, the AM and PM icons are displayed automatically. A semicolon, which separates the hour and minute sections, flashes with 1 Hz frequency.
MINUTES (AO2)
The MINUTES is an Analog Output object number 2, which value contains the current minute value.
TIME_CONFIGURATION_VISIBLE (BO 13)
The TIME_CONFIGURATION_VISIBLE is a Boolean Output object number 13, which status determines the time visibility. If the object is set to true, the clock is visible in the main menu (it starts to be visible when the room panel receives the first message with a correct time value, after the panel restart or power supply connection.) The clock is displayed on the 14-segment display block when the name of an active parameter (visible) is empty (each character in the parameter name is NULL). The default status of this object is true (visible).
ENTER_MENU_TIME (AO 16)
If the Menu button is pushed for a time longer than the time value stored in the ENTER_MENU_TIME, the user enters the submenu edit mode. If the Menu button is pushed together with the OK button for a time longer than the time value stored in the ENTER_MENU_TIME, the user enters the settings submenu edit mode. This object has a software limitation, where the min. time value is 1 sec. The default value is 2 sec.
EXIT_EDIT_TIME (AO 17)
The EXIT_EDIT_TIME is an Analog Output object number 17, which value contains the time in seconds after which the edition of any editable parameter is finished. The exit time countdown starts after the last keypad activation (pushing any button in the edit mode). This object has a software limitation, where the min. time value is 1 sec. The default value of this object is 5 seconds.
EXIT_MENU_TIME (AO 18)
The EXIT_MENU_TIME is an Analog Output object number 18, which value contains the time (in seconds) after which the submenu edit mode and settings submenu edit mode are finished, and the device leads the user back to the main menu display. The exit time countdown starts after the last keypad activation (pushing any button). This object has a software limitation, where the min. time value is 1 sec. The default value of this object is 10 seconds.
