Hardware Specification

Dimensions [mm]

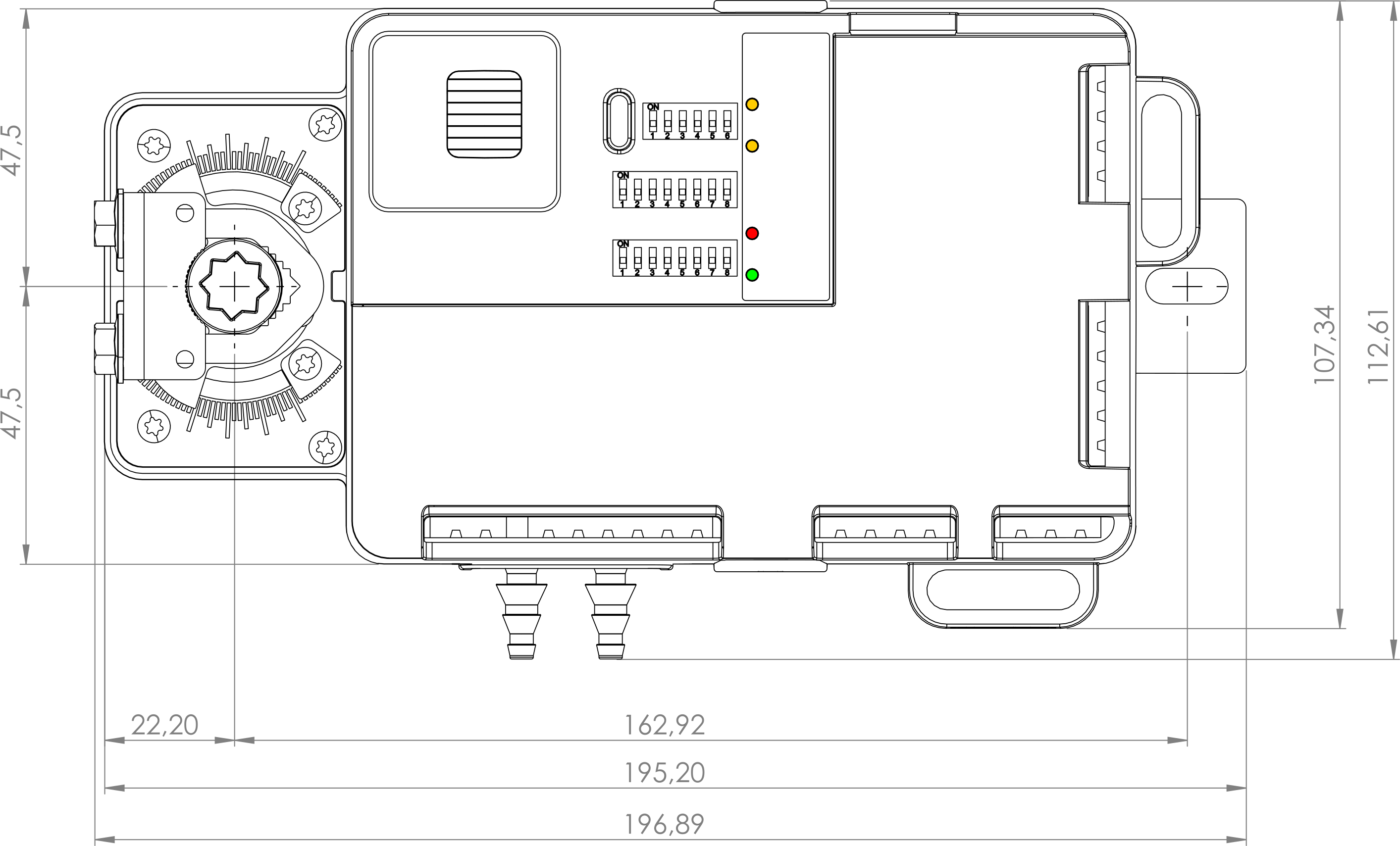

Front view.png

Front dimensions

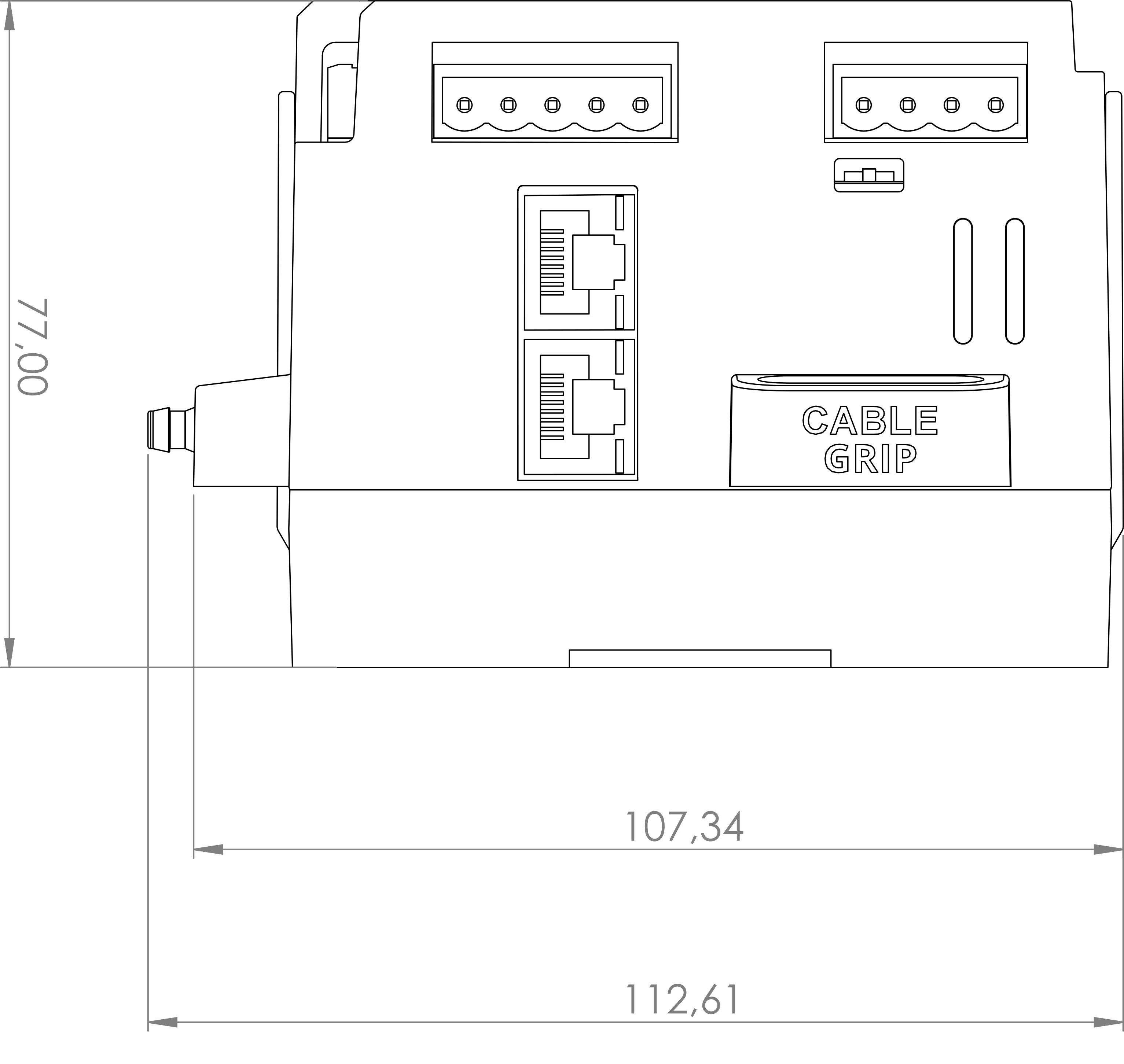

VAV14-IP side.png

Side dimensions

Power Supply

The VAV14-IP controller requires 24 V AC/DC power supply.

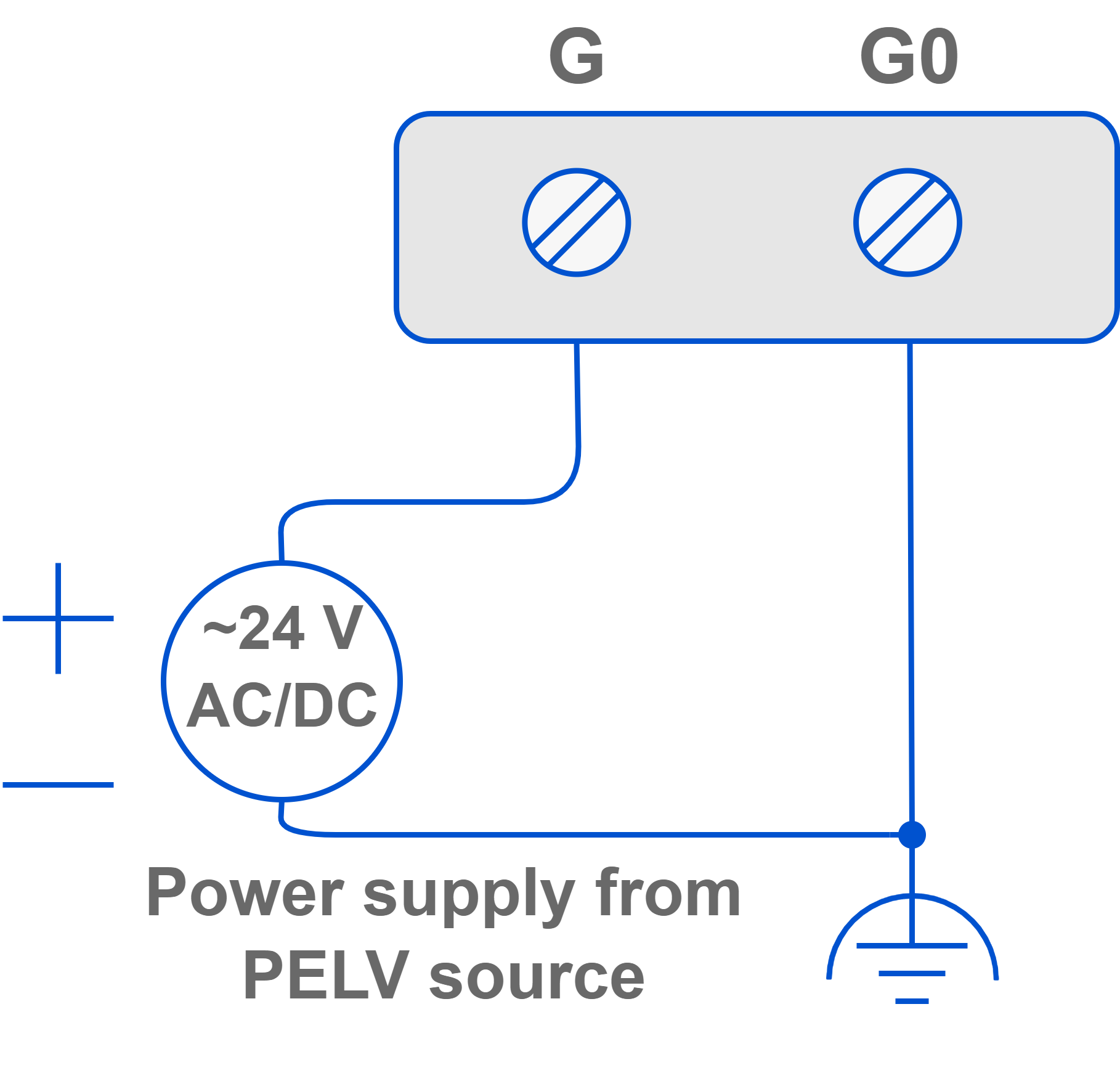

Power supply.png

Power supply connection

It is also possible to power the controller using a USB cable (5 V power supply).

Warning!

5 V USB power supply does not support a motor and AO/TO outputs in the controller.

Front View

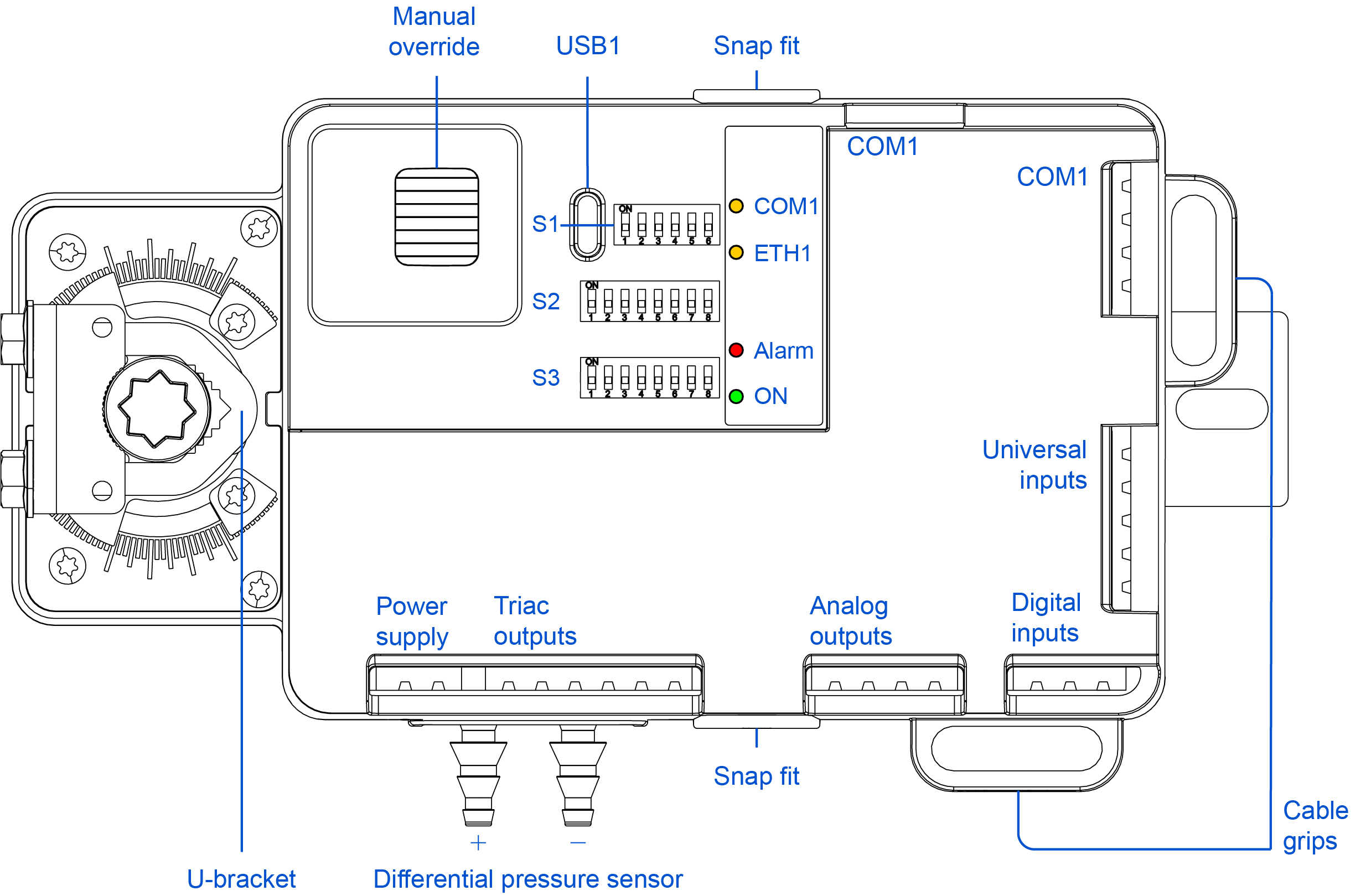

VAV14-IP front view.png

Front view of the VAV14-IP controller

Manual override

The manual override button allows for manual adjusting of the damper actuator’s position in case of a power outage or other emergency.

Snap fits

Snap fits on the sides of the controller allow to remove the enclosure. To remove the enclosure, make sure that screw connectors of I/Os, communication ports, and power supply are detached.

To open the enclosure:

  • turn the power supply off.

  • discharge any static electricity by touching a known, securely grounded object,

  • detach any connectors blocking the enclosure,

  • using a tool as a lever, for example, a screwdriver, delicately draw snap fits away from the enclosure and pull it up.

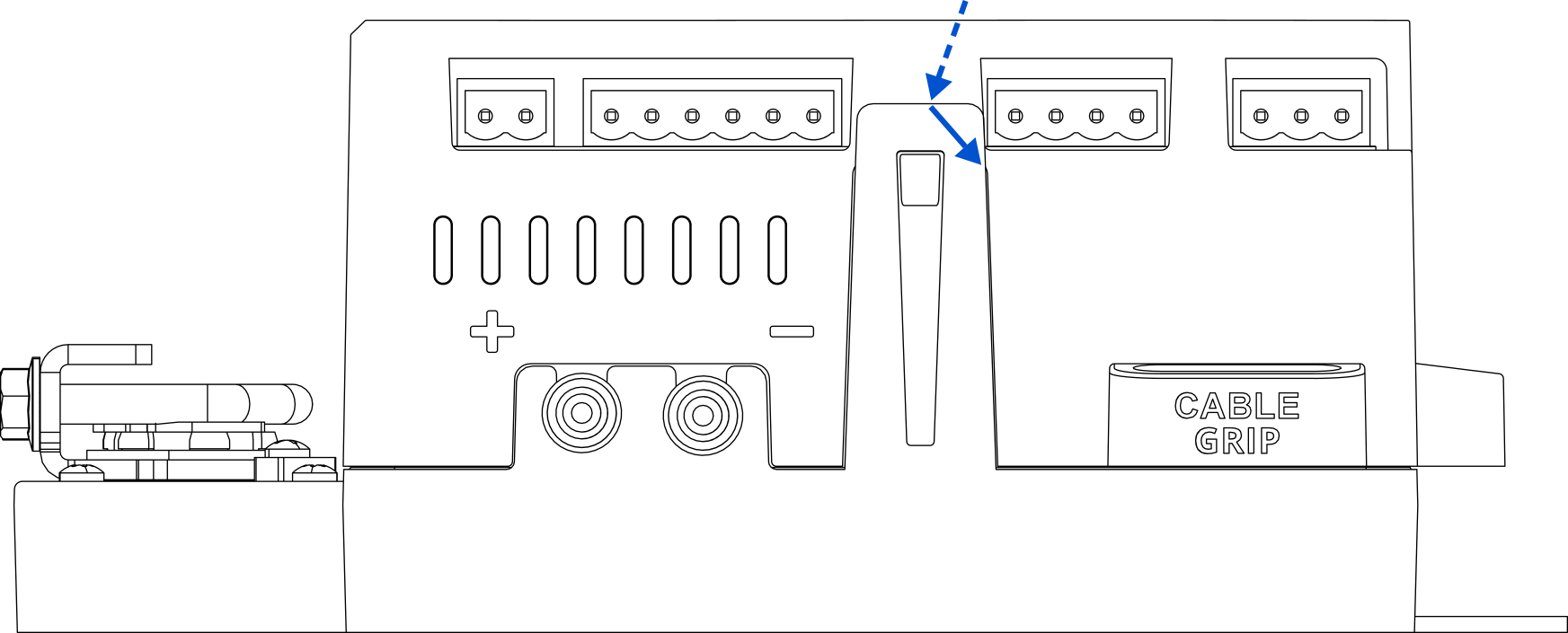

Snap fit on the side of the VAV14-IP controller

Cable grips

Cable grips available on two sides of the VAV14-IP controller allow cables to be routed neatly to the device.

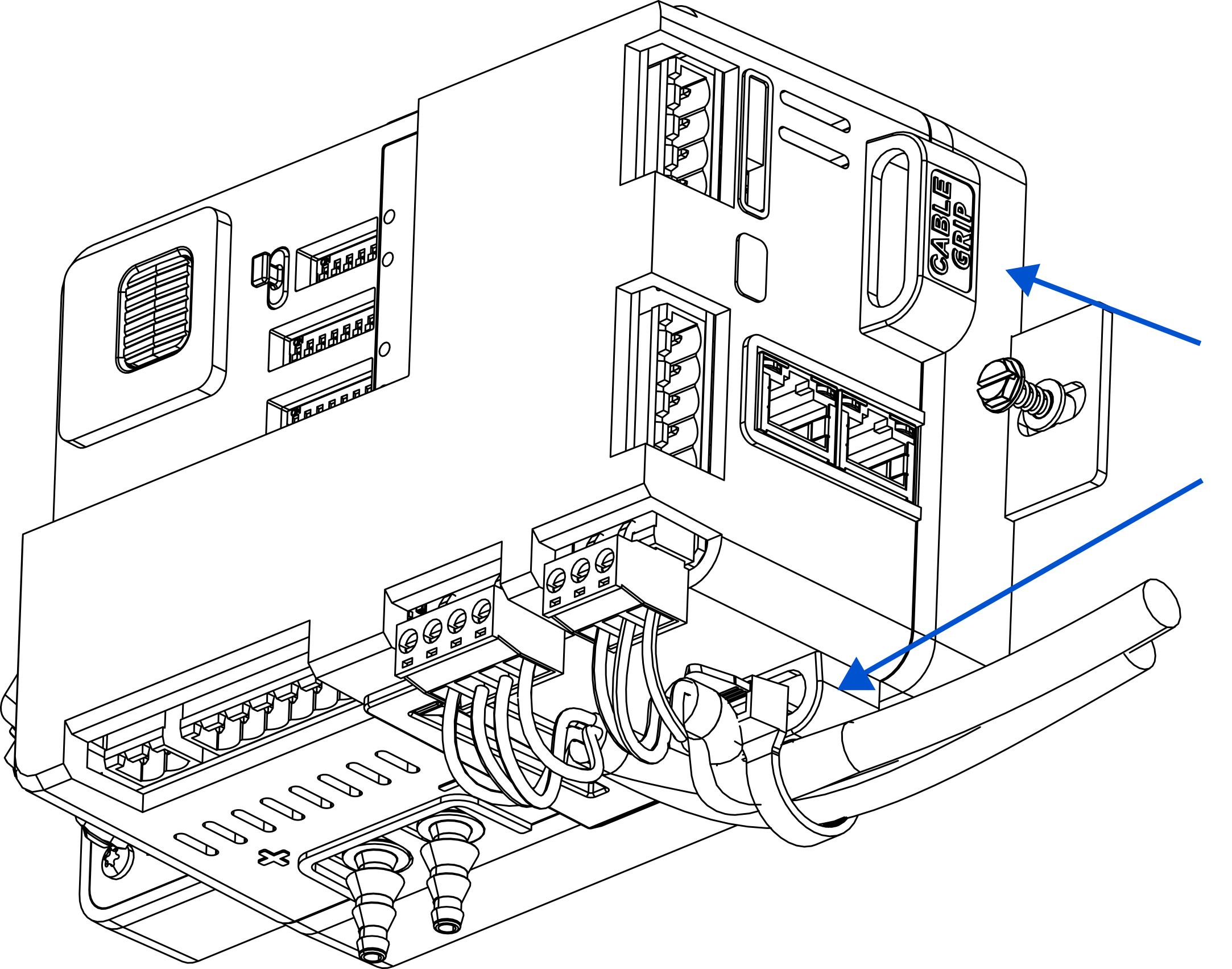

Cable grips.png

Cable grips on two sides of the VAV14-IP controller

Screw Adjustment Range and Torque

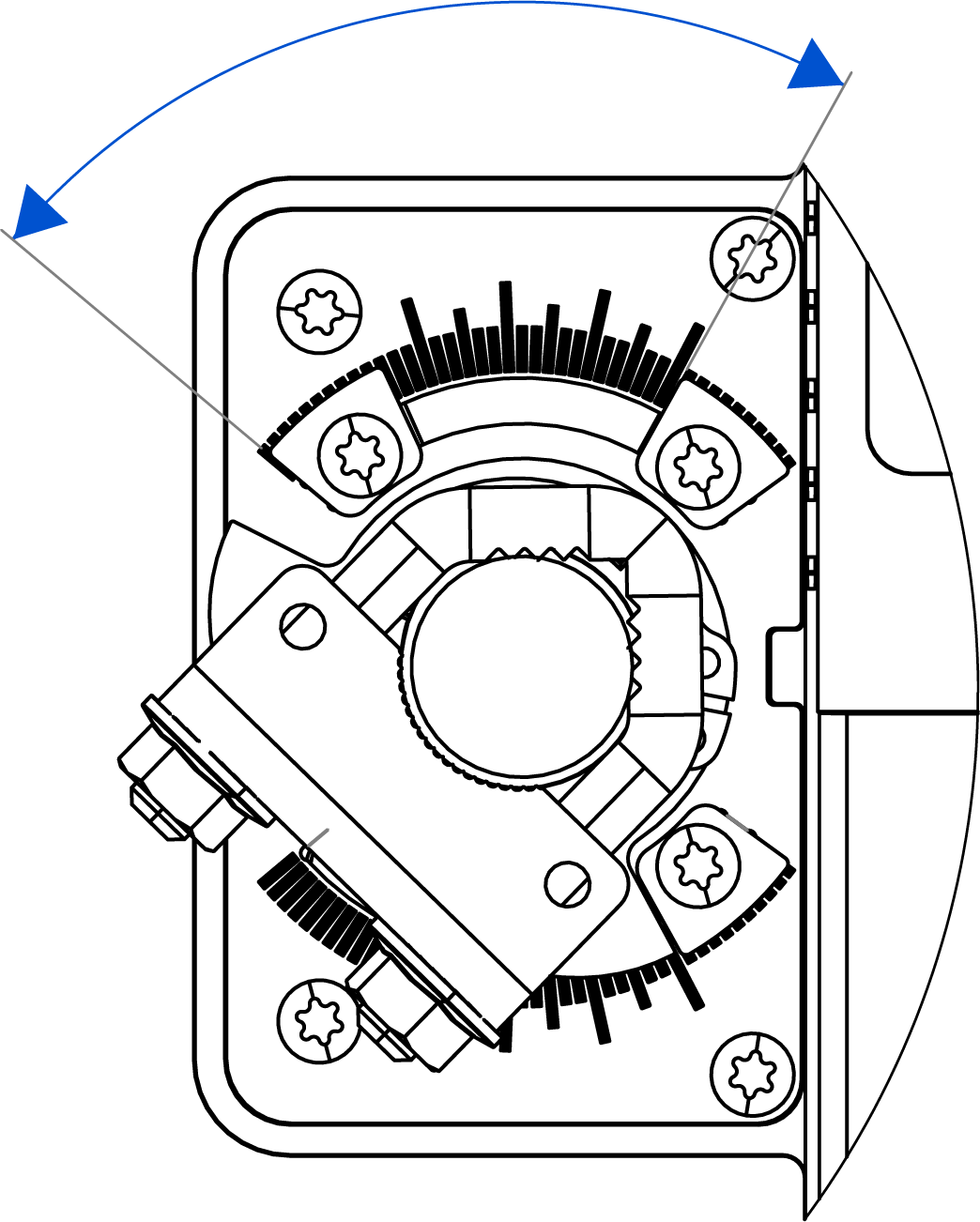

Screw adjustment range

The maximum applicable torque is 4 Nm.
