MAC36NL - BACnet Ethernet - Not possible to select the communication adapter

Issue

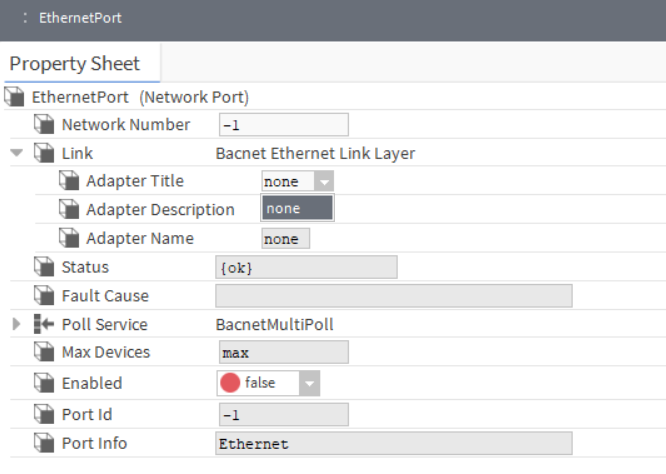

In the MAC36NL station, no adapter is available to select in the /Link/AdapterTitle in the EthernetPort component (from the bacnet palette) in /Config/Drivers/BacnetNetwork/bacnetComm/network.


Possible cause and solution

The BACnet Ethernet protocol is not supported on the MAC36NL controller.

Solution

The MAC36NL supports the BACnet IP, BACnet MS/TP, and BACnet S/C protocol and they are recommended for use in MAC36NL-family controllers.
