FCU Updater - Application upload and firmware update

This document describes how to upload a default or modified application and how to update the firmware in the device.

1. Once the project is created in FCU Updater, the connected device will be displayed.

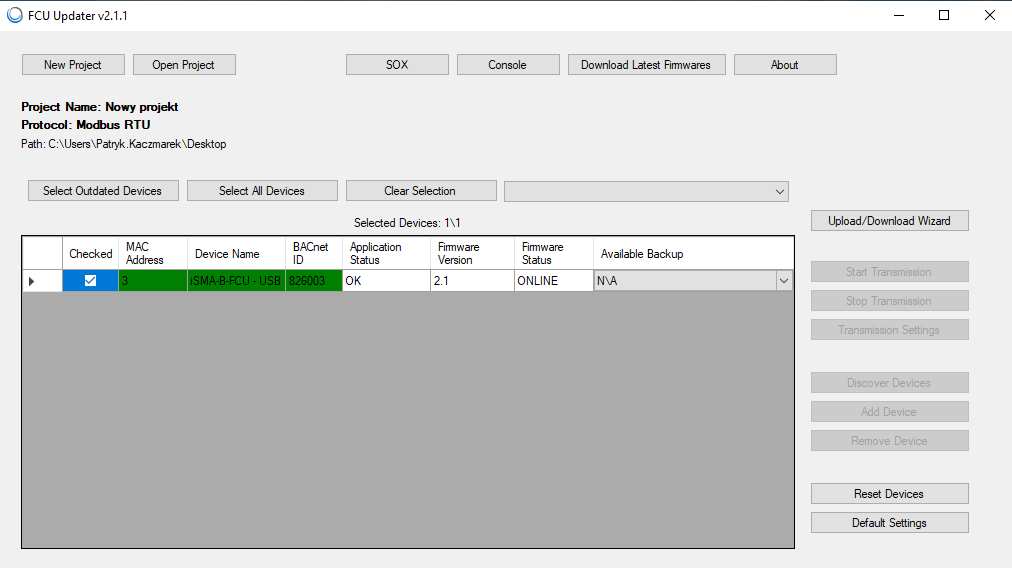

Picture 1. The screenshot shows the created project.

2. In the next step, select the device by checking the 'Checked' box to which you want to upload the application or update the firmware. Then, select the 'Upload / Download Wizard' option and click on one of the three options you're interested in.

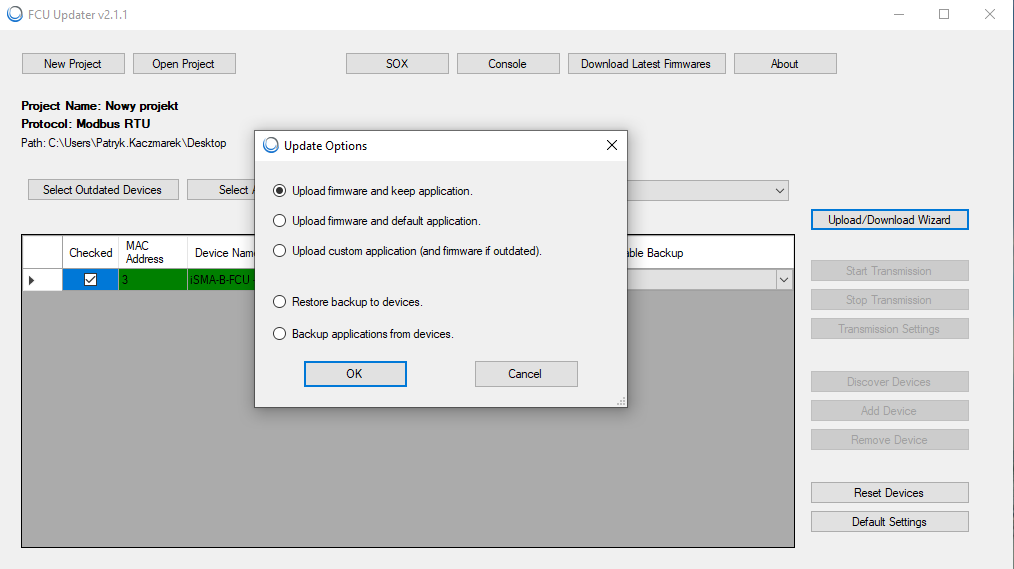

Picture 2. The screenshot shows the device update options.

3. After correct firmware and application upload, a message about the completed update process and the possibility of displaying logs will be displayed.

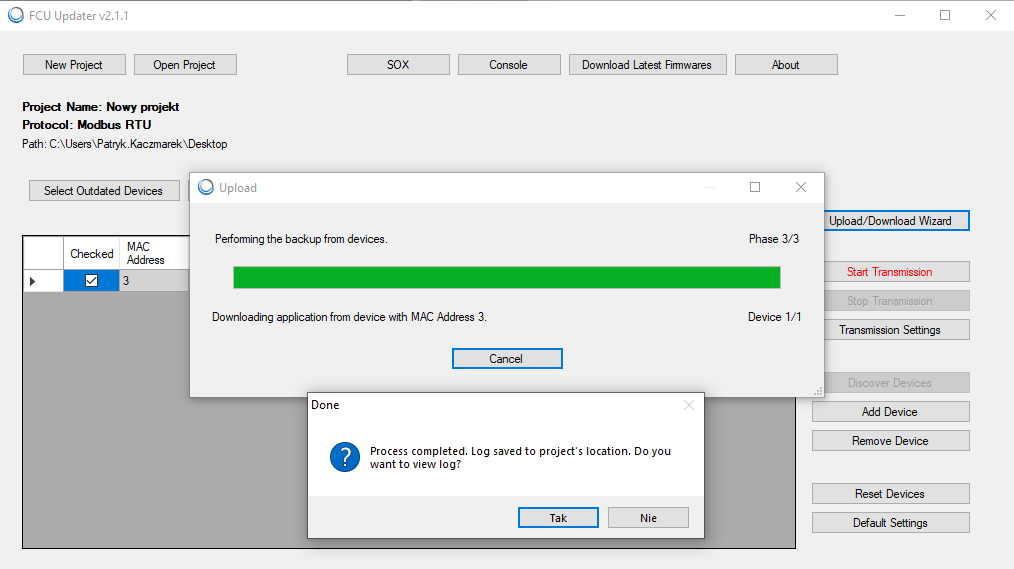

Picture 3. The screenshot shows the correct device update.
