AAC20 - Visualization web server - Problem with generating files using the Visualization_configurator.xlsm

Issue

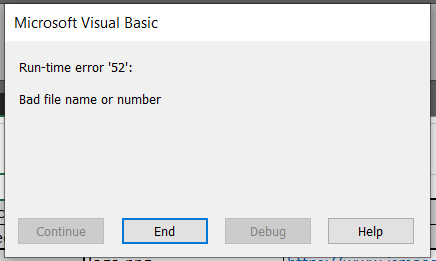

While trying to generate a file using the Visualization_configurator.xlsm sheet for the AAC20 web server, an error notification is displayed:


Possible cause and solution

If the Visualization_configurator.xlsm sheet has been opened from a network location (for example, OneDrive, SharePoint, AWS, etc.), it is recommended to open it from the local path.

Solution

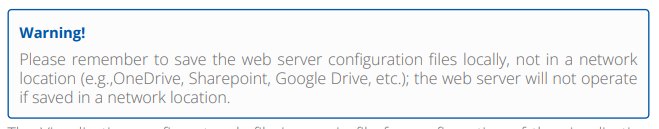

Warning! The solution is described in the AAC20 Visualization Web Server user manual.

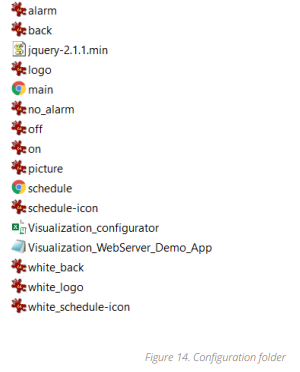

Make sure that the Excel file is saved in the same folder as the other source files. All the files listed below must be saved in the same location:
