Occupancy Configuration
OCCUPANCY_VISIBILITY (MV 4, Out Of Service Property)
This object property status activates or deactivates the occupancy current status visibility. If the status is active, the occupancy current status is visible as a specific group of icon.

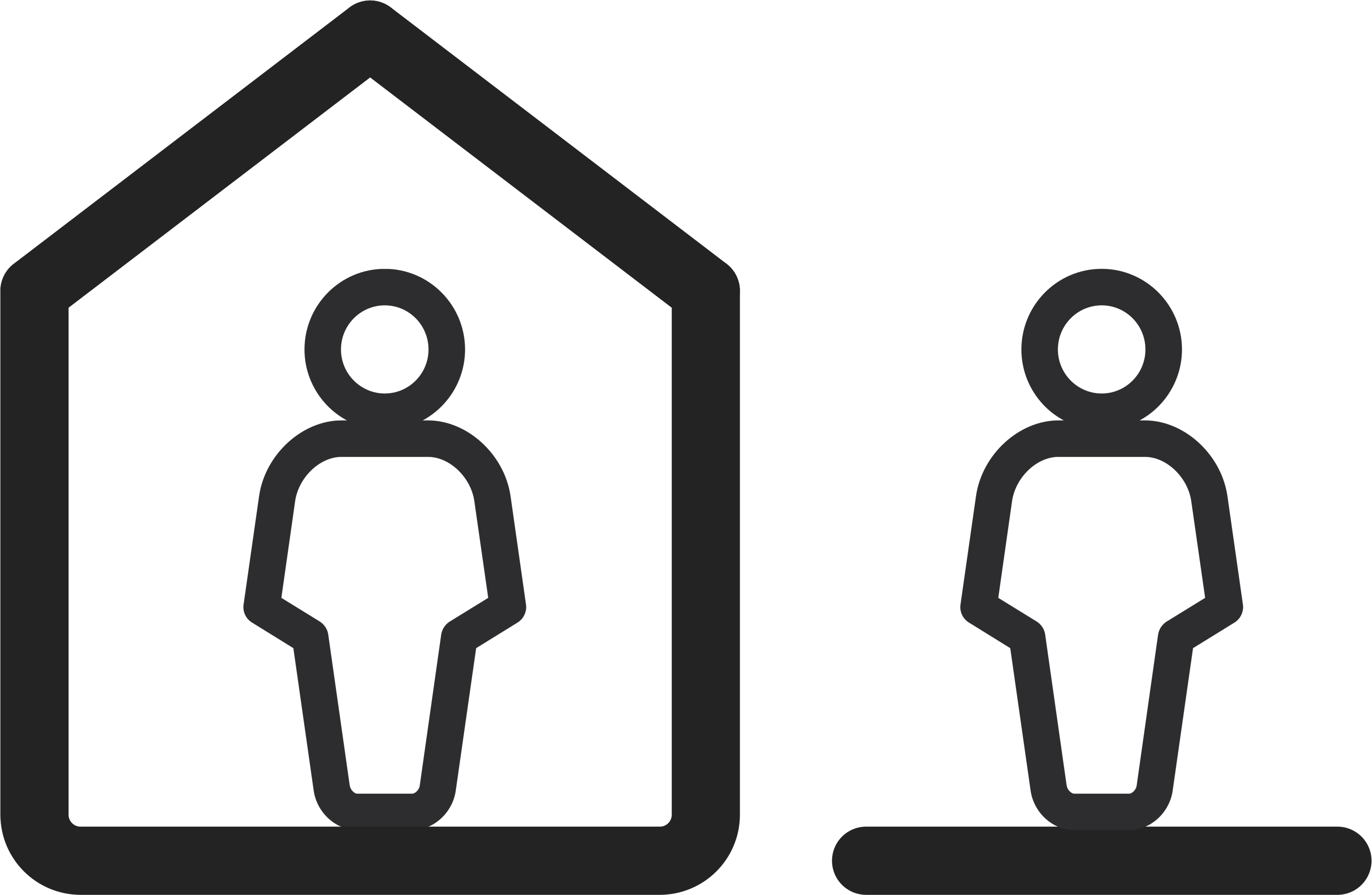

In the occupied mode, the human symbol stays inside the house symbol (if forced, occupied mode human symbol blinks inside the house). |
| In the unoccupied mode, the human symbol stays outside of the house symbol. |
The default value is true (the occupancy mode is visible).
OCCUPANCY_MODE_EDITION (MV 4, Property 4200)
This object property’s status determines if the OCCUPANCY_MODE is editable locally from the room panel. If the status is true, the occupancy edit submenu is active, and the user can set OCCUPANCY_MODE. If the status is false, the occupancy edit submenu is inactive. The default value is true (the OCCUPANCY_MODE is editable).
OCCUPIED_CONFIG_FAST_EDIT_MODE (BO 61)
This object switches between the occupancy normal edit and occupancy fast edit modes.
Occupancy Normal Edit Mode
If the status is false, the normal edit mode is active. The particular occupancy modes are selected by the arrow buttons. The newly selected OCCUPANCY_MODE has to be confirmed pushing the OK button.
The new OCCUPANCY_MODE confirmation is signalled by a double blink of the new OCCUPANCY_MODE name and the assigned symbol (see Occupancy Mode), and a double beeper signal (if the OCCUPANCY_VISIBILITY (MV 4, Out Of Service Property) is enabled).
If the OCCUPANCY_MODE selection is complete, the main menu is displayed.
Pushing the Menu button, before the new OCCUPANCY_MODE confirmation with the OK button, cancels the new OCCUPANCY_MODE setting procedure, and the user gets back to the main menu.
If the new OCCUPANCY_MODE is not confirmed during the time value stored in the EXIT_EDIT_TIME object, the new OCCUPANCY_MODE selection is failed, and the main menu is displayed.
Occupancy Fast Edit Mode
If the status is true, the fast edit mode is active, and setting the new OCCUPANCY_MODE does not need any confirmation. The new OCCUPANCY_MODE is selected by pushing the OK button. Pushing any other button confirms the new OCCUPANCY_MODE choice. The same happens if the EXIT_EDIT_TIME value elapses–the newly selected OCCUPANCY_MODE is confirmed. The new OCCUPANCY_MODE confirmation is signalled by a double blink of the new OCCUPANCY_MODE name and the assigned symbol (see Occupancy Mode), and a double beeper signal (if the OCCUPANCY_VISIBILITY (MV 4, Property OUT OF SERVICE) is enabled).
If the OCCUPANCY_MODE selection procedure is complete, the main menu is displayed.
By default, the status is true (the normal edit mode).
OCCUPIED_CONFIG_LOCAL_MODE (BO 62)
The OCCUPIED_CONFIG_LOCAL_MODE object switches between the local and BMS occupancy setting modes.
Local Mode
If the status is true, the room panel occupancy setting works in the local mode. It means that the value of the OCCUPANCY_CURRENT_STATUS object is determined by the value of the OCCUPANCY_MODE object, and the value of the OCCUPANCY_CURRENT_STATUS object cannot be overwritten by the higher level system.
OCCUPANCY_MODE Object Value | OCCUPANCY_CURRENT_STATUS Object Value | Visualization |
|---|---|---|
1 | 1 |
|
2 | 2 |
|
BMS Mode
If the status is false, the room panel occupancy setting works in the BMS mode. The OCCUPANCY_MODE object works independently of the OCCUPANCY_CURRENT_STATUS object.
By default, the object is false (the BMS mode).
