Nor


Applicable to library's version 1.0

The Nor component performs a joint denial (a reversed disjunction)—the Out slot value is true if and only if all active input values are false; in case any of the In slots is true, the Out value is false.

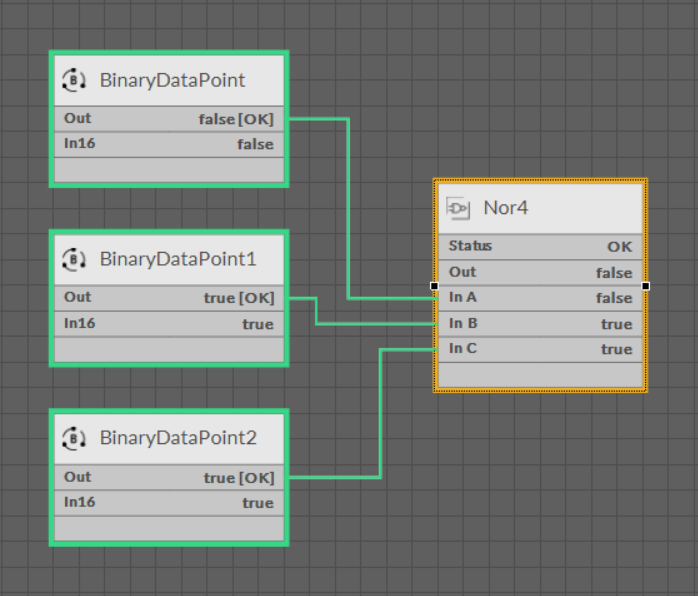

The Nor component

Slots

The Nor component has the following slots:

  • Status: indicates the current status of the component (OK, Fault);
  • Out: the joint denial of values of the In slots;
  • InA⁠-InN: 10 or 4 input slots (depending on the component's variant).

Variants

The Nor component comes in two variants—with 10 or 4 In slots. The 4 slots variant uses less memory within application.

  • Nor10: component with 10 In slots;
  • Nor4: component with 4 In slots.
