Applicable to OS V1.6-1.8

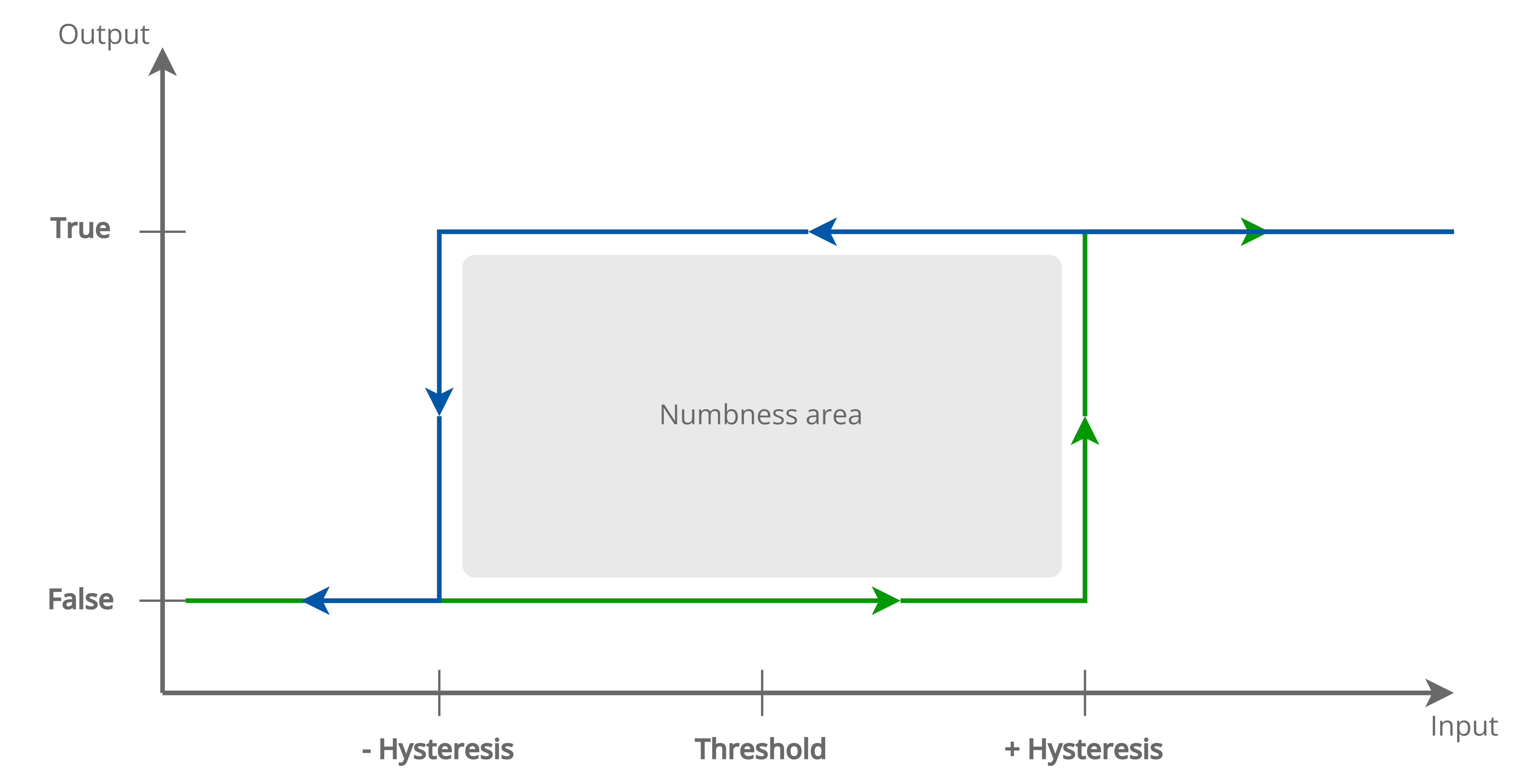

The Sequence component calculates a binary output value based on the input value, the corresponding threshold value, and a universal hysteresis value:
-
if the input value is greater than or equal to the threshold plus hysteresis, the output is set to true.
-
if the input value is less than or equal to the threshold minus hysteresis, the output is set to false.
The component uses a hysteresis mechanism to prevent rapid switching of outputs when the input value is close to the threshold.

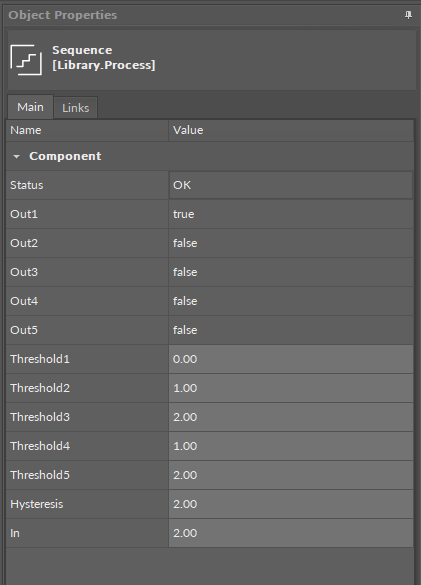

The Sequence component has the following slots:
-
Status: indicates the current status of the component;
-
Available information: OK, fault;
-
-
Out1-5: a binary output value based on the threshold and hysteresis values;
-
Threshold1-5: allows to set a threshold value for outputs 1-5;
-
Hysteresis: allows to set a hysteresis value for outputs 1-5;
-
In: the input value.
