AAC20 - iC Tool - Java Runtime error during iC Tool start-up

Issue

During the iC Tool start-up, the Java Runtime Environment error is communicatied:

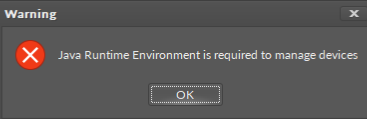

Figure 1. Java Runtime error

Solution

The Java Runtime Environment error occurs when th iC Tool cannot identify a correct Java version on the PC.

If the Java Runtime Environment problem continues to display after installing java, then add the appropriate path to java in the environment variables:

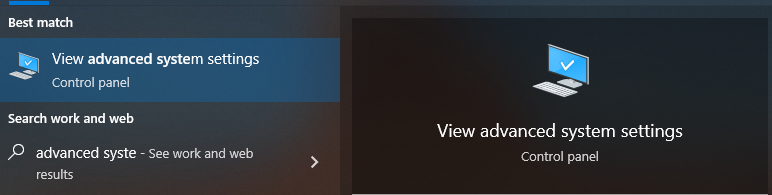

Figure 2. Searching for advanced system settings

  • open the Advanced System Properties, searching for “Advanced System Settings” in the Windows search box;

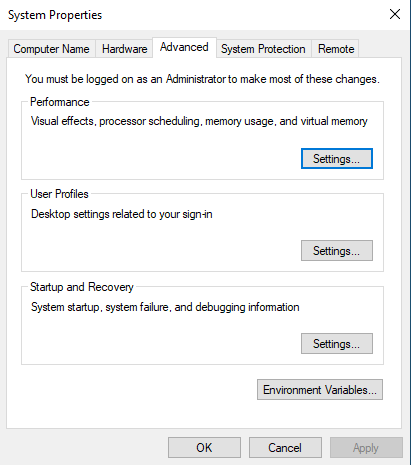

Figure 3. System Properties window

  • then, Enviromment Variables;

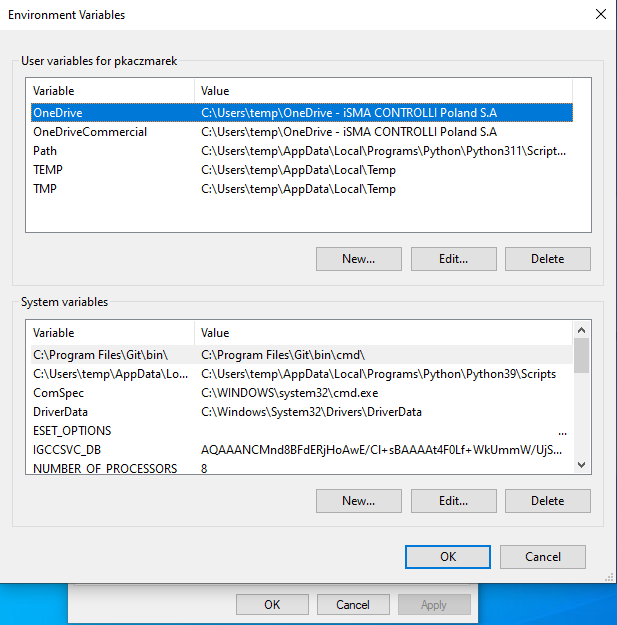

Figure 4. Enviromment Variables windows

  • select ‘Path’ in the system variables and press Edit;

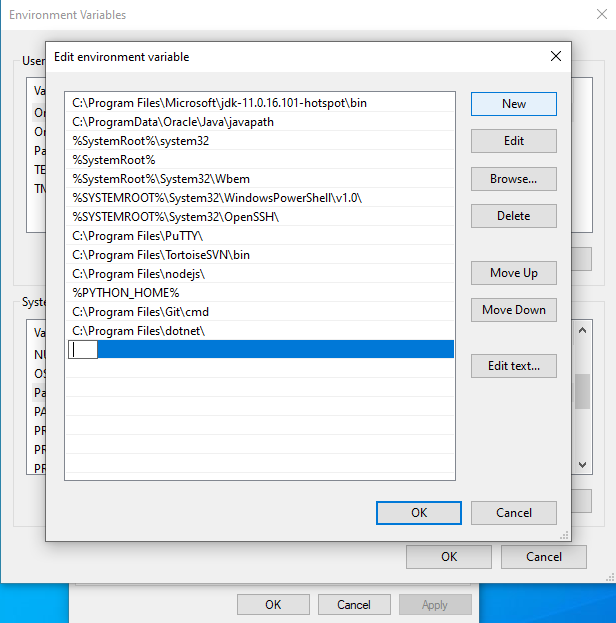

Figure 5. Edit Enviromment Variables windows

  • in the opened pop-up window, select ‘New’ and add a path to the installed Java version, for example, C:\Program Files (x86)\Java\jre1.8.0_151\bin.
