Hardware Specification
Dimensions

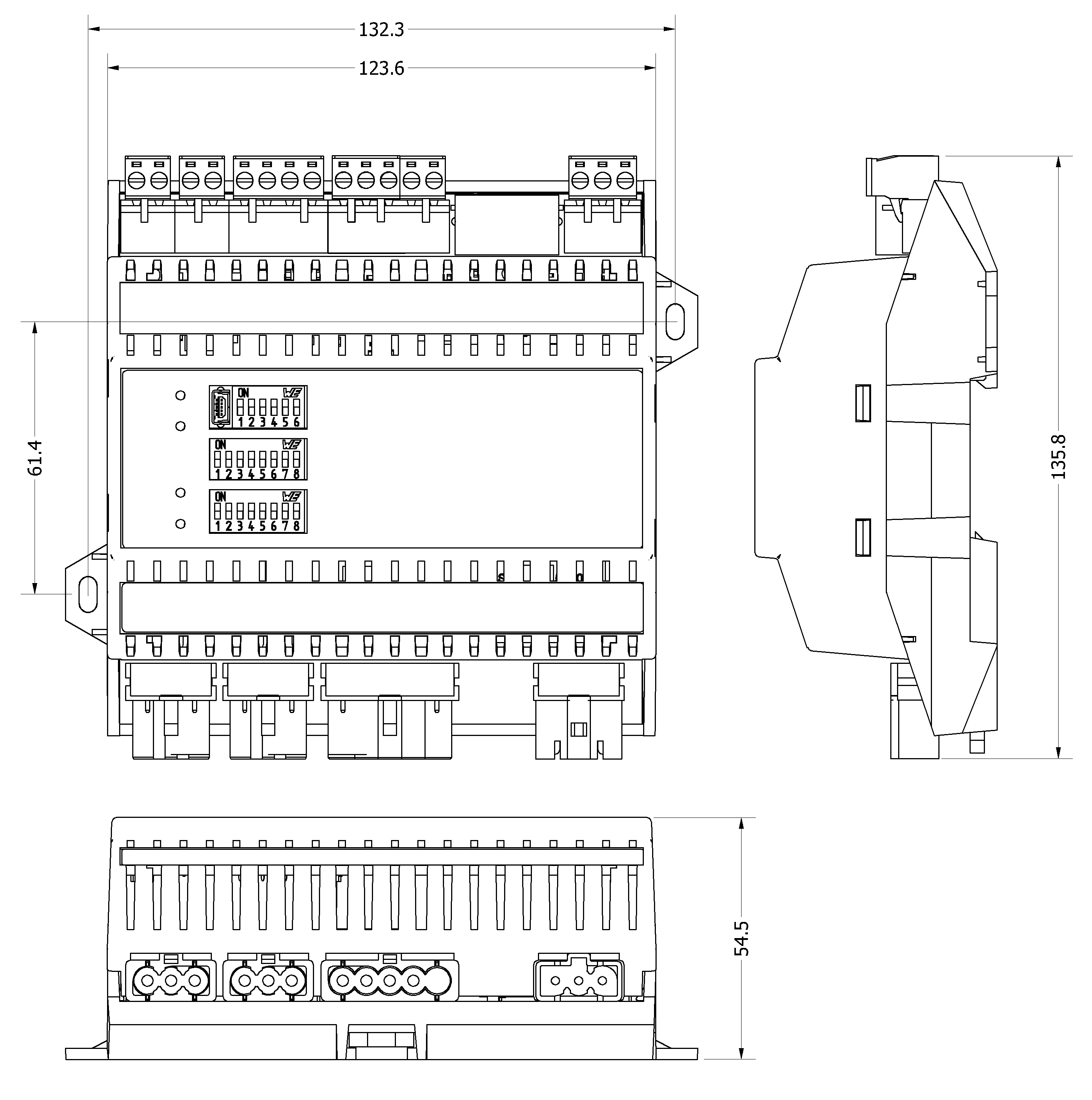

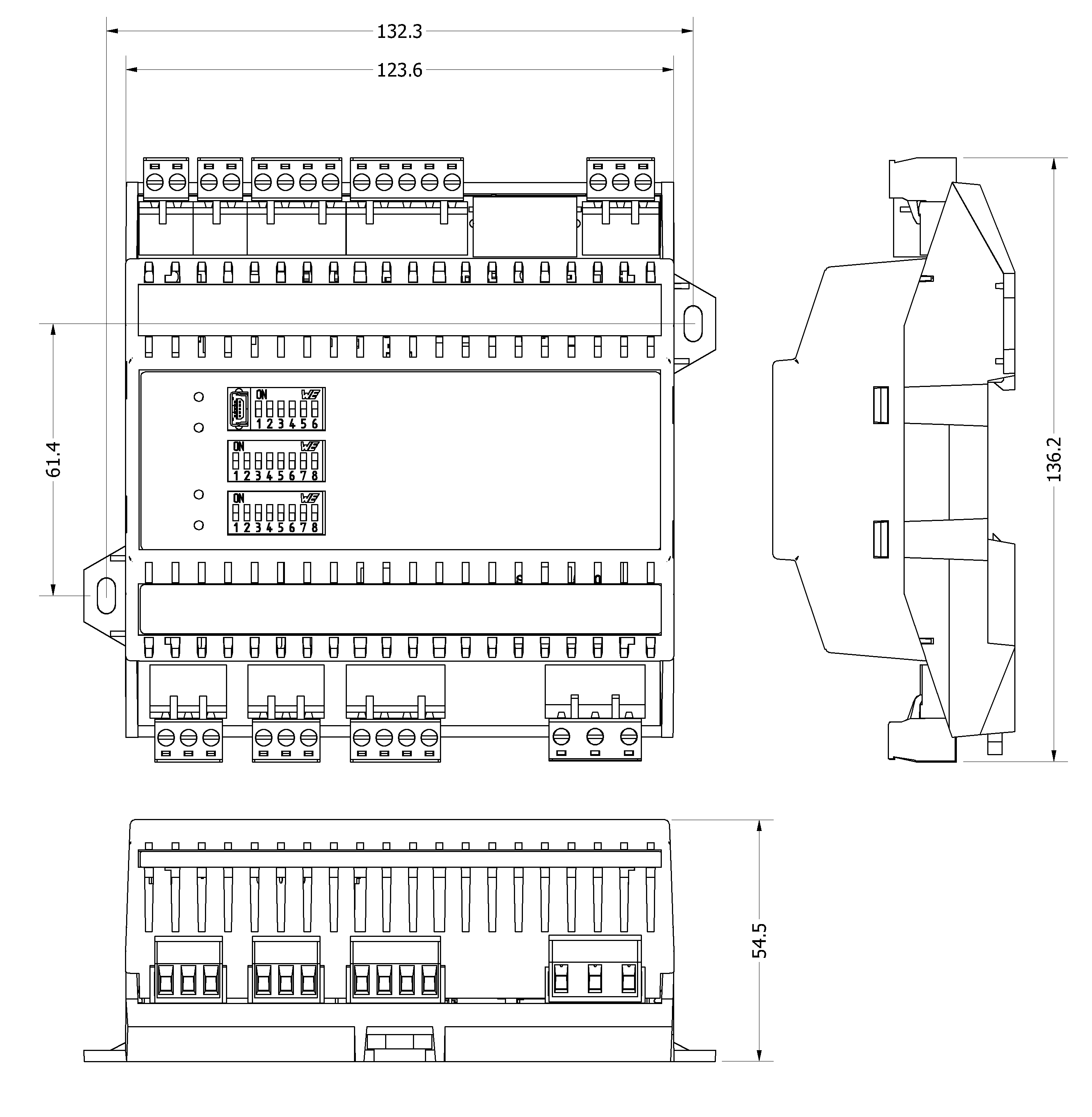

Dimensions of iSMA-B-2D
Dimensions of iSMA-B-2D-WD
Power Supply
The device is designed to work with 230 V AC power supply. Appropriate circuit breaker for overcurrent protection is 10 A class B.

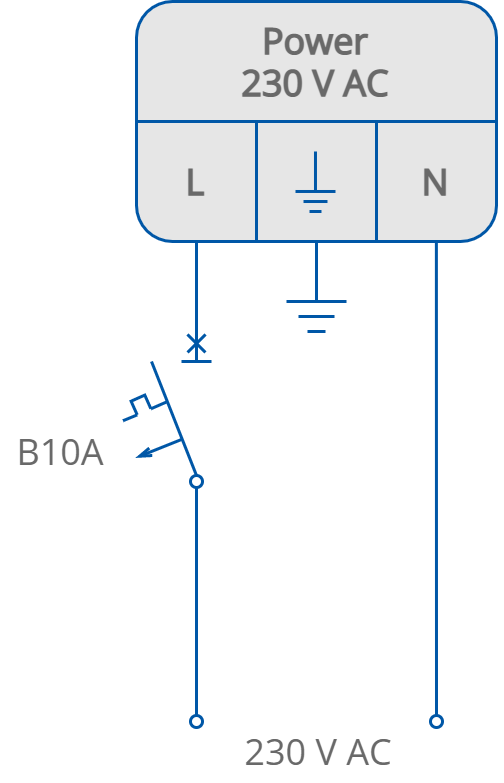

230 V AC power supply connection
WARNING! The maximum current for all the outputs is 8 A!
24 V DC Power Supply for External Equipment
The device is equipped with a 24 V DC 80 mA power supply output dedicated to power motion sensors / presence detectors, which require an external power supply.

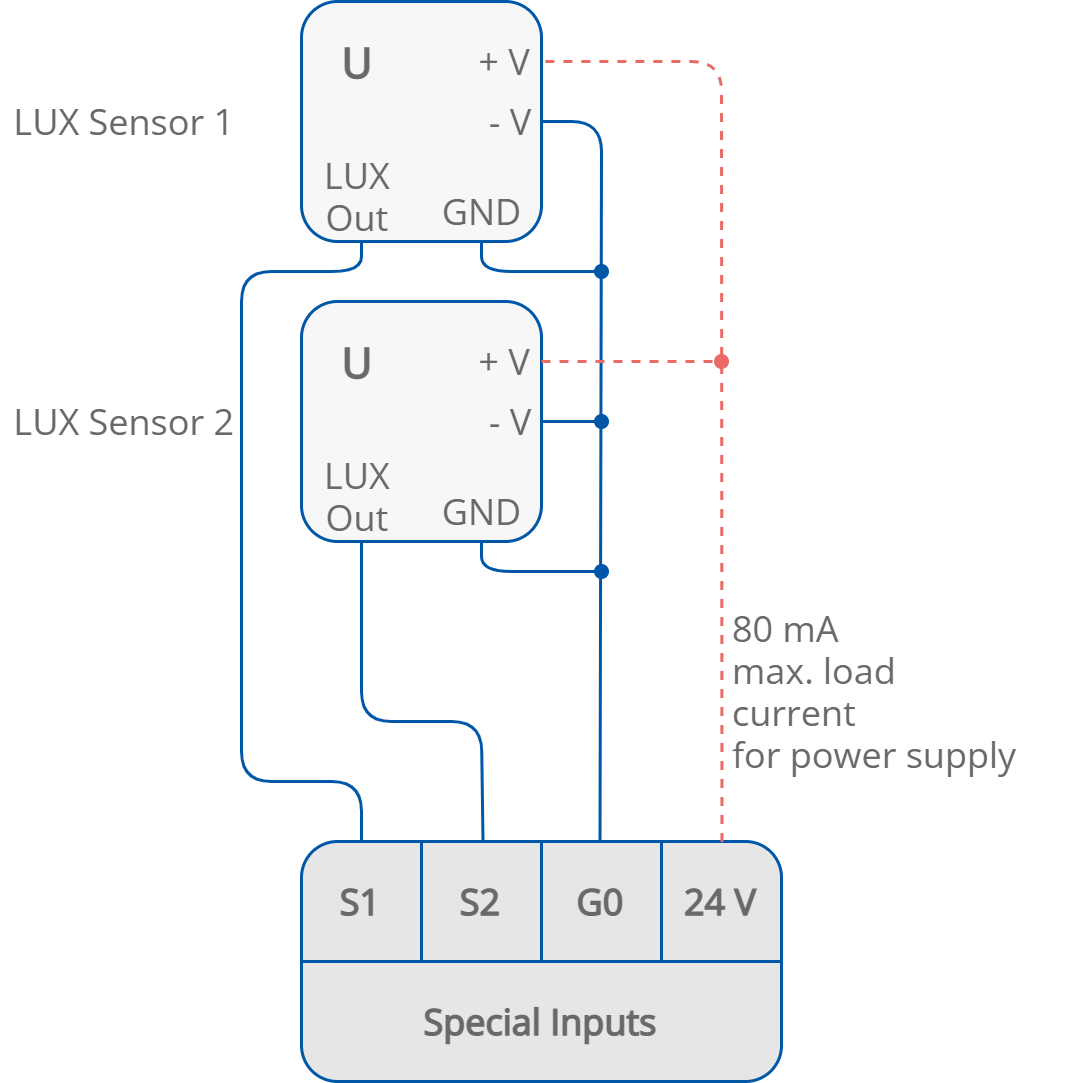

The 24 V DC power supply terminal connection is labeled +24, G0, and it is placed next to the special input connectors.

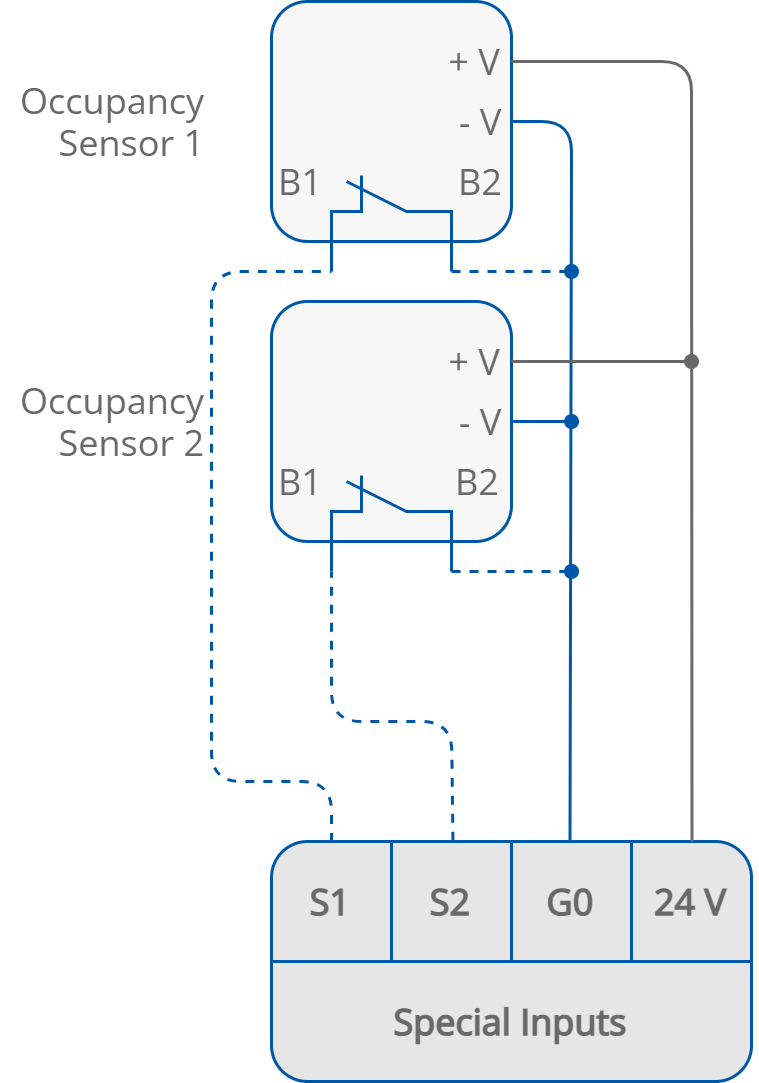

24 V DC power supply connection
.png?inst-v=06755830-acc5-4cce-8dbe-104594213928)
24 V DC power supply connection
