DIP Switch Configuration

Controller Overview

This section describes steps required to properly configure the controller with the universal FCU application. For further information, please see the RAC18-IP Software and Hardware user manuals.

The S3 DIP switch is responsible for configuring the application.

The configuration of the RAC18-IP controller with the universal FCU application is described step by step in the section of the manual:

Step 1: selecting the FCU pipe type;

Step 2: selecting 1 or 2 stages of heating;

Step 3: selecting 1 or 2 stages of cooling;

Step 4: selecting the type of control the FCU valves require, and heating and cooling actuators connection details;

Step 5: selecting the temperature control value source;

Step 6: selecting the type of fan used within the project.

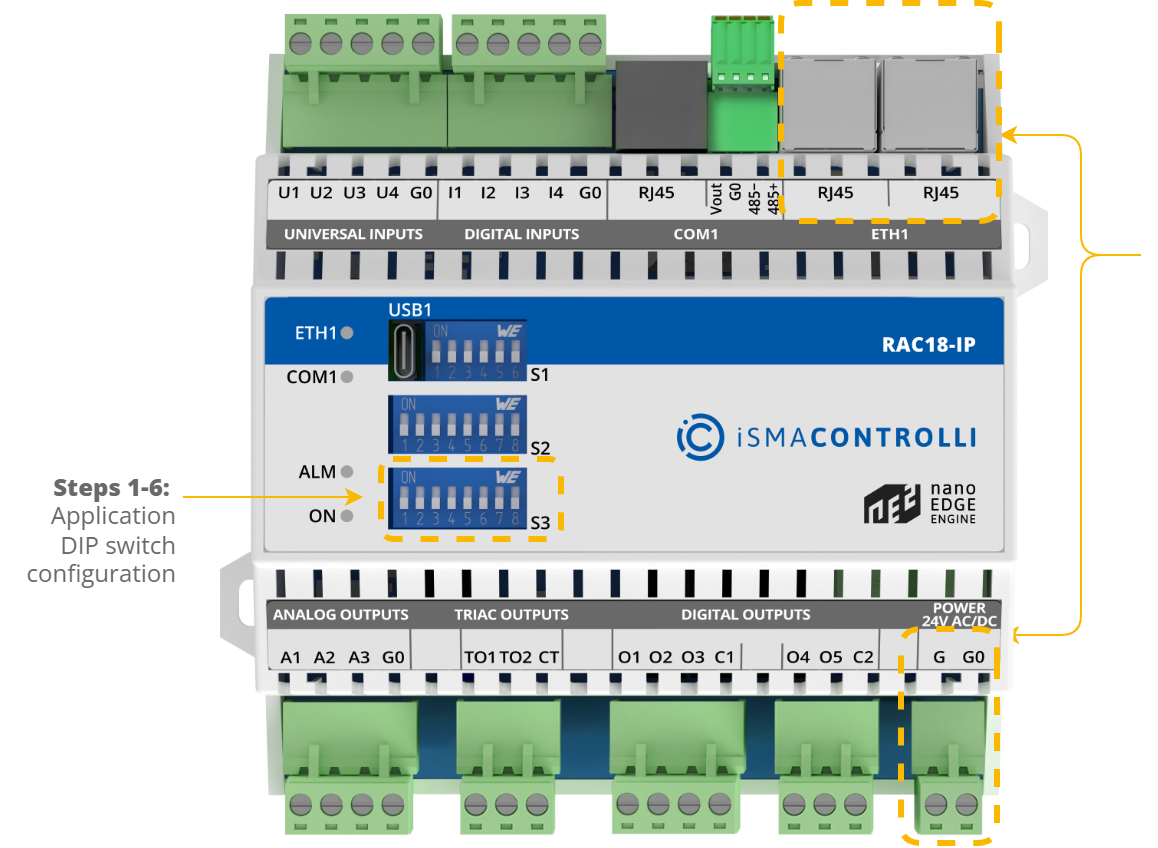

Steps 1-6 describe configuration of the S3 DIP switch. Their overview with default positioning is presented in the table below.

The S3 DIP switch configuration
