DICounter
The DICounter component allows to reading high-speed counters of digital inputs in the controller.

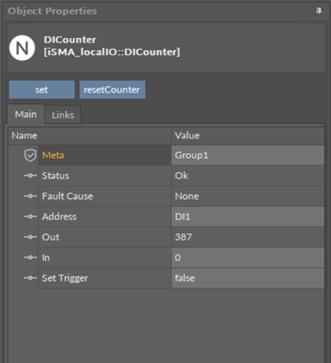

DICounter component
Slots
The DICounter component has the following slots:
Status: shows the component’s status;
Available information: OK (the component is working properly), Fault (the component is disabled);
Fault Cause: shows the reason of the Fault status;
Address: allows setting an address of a physical input of the device; once the component has been added to the folder, the slot's default value is 1—for the component to operate properly, the unique address value must be set in this slot.
Available settings: DI1-4.
Out: a number of pulses on rising edge in a physical digital input of the device;
In: the input slot receiving a value to be counted;
Set Trigger: allows to activate or disactivate counting pulses on rising edge.
Actions
The DICounter component has actions available:
Set: allows to manually set the In slot value;
resetCounter: allows to reset the counter value to 0.
