Analog Filtering

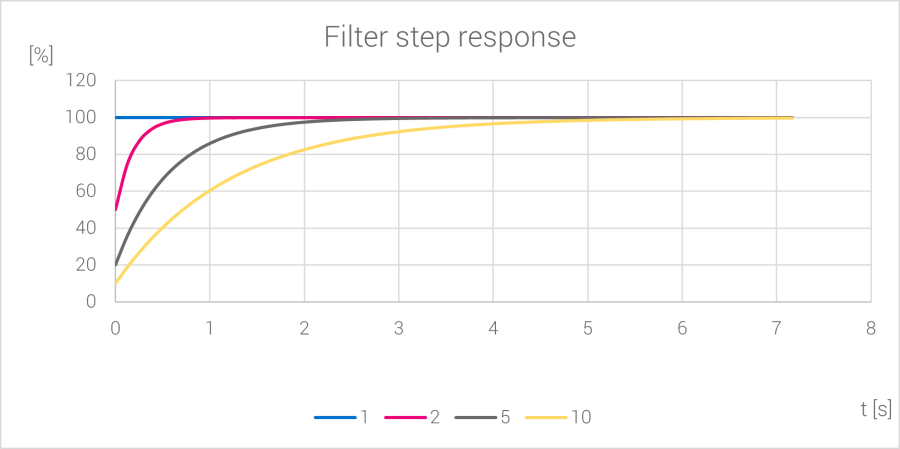

If the measured signal is noisy it is possible to eliminate the noise by switching on the lowpass filter. It is possible to configure the filter for all inputs (it is not possible to enable the filter for only one input). The filter parameter corresponds to the filter time constant. Step response of the filter is shown in the graph below.

Step response and different coefficients
