Calendar

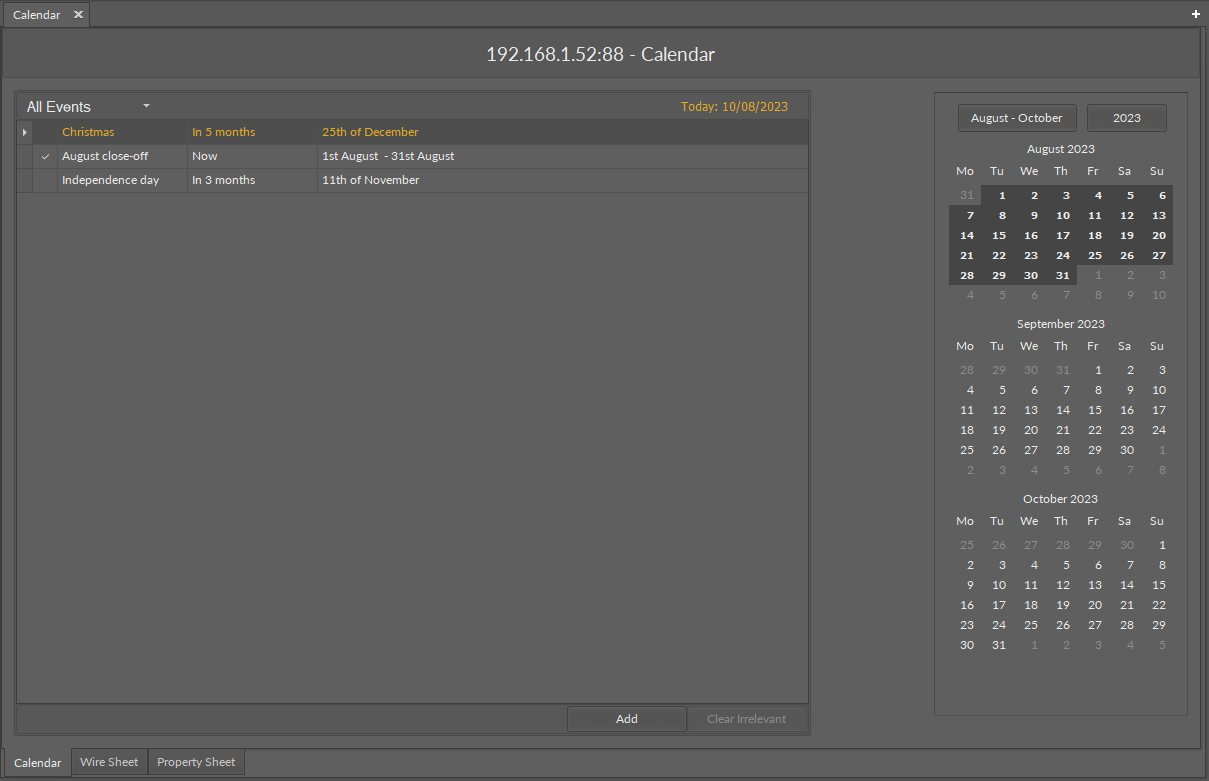

The Calendar view is designed to set one time or repeatable special days in a year. The view is automatically opened upon double-clicking of the component.

To add an event in the calendar, use the Add button in the bottom right corner of the view; a pop-up window appears.

In the Add event dialog window, it is possible to set the following parameters:

• BACnet priority: from 1 to 16;

• Type: type of the event;

  • Available options: Date Pattern, Date Range, Week and Day;

• Name: allows to set a name of the event, specific to the user's requirements.

The type of event defines the data entered for each type.

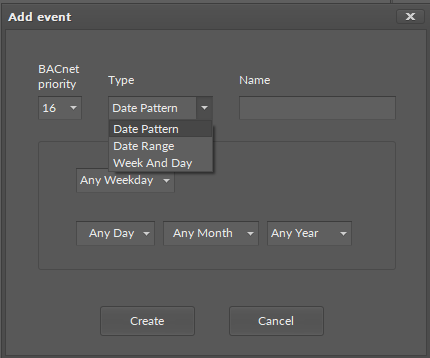

For Date Pattern:

• weekday;

• specific day of a month;

• specific month of a year;

• specific year.

Each of these parameters may be left to any (Any Day, Any Month, etc.).

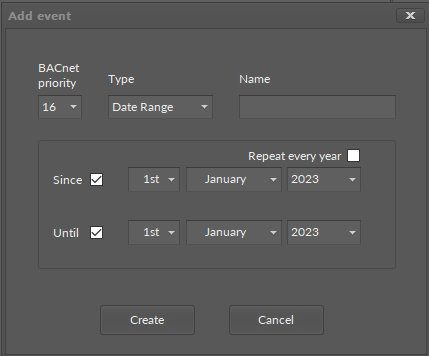

For Date Range:

• Since/Until: allows to specify a beginning or end day of the event (unchecked sets the "future" value);

• specific day, month, and year of a calendar date;

• Repeat every year: if checked, disables the year field.

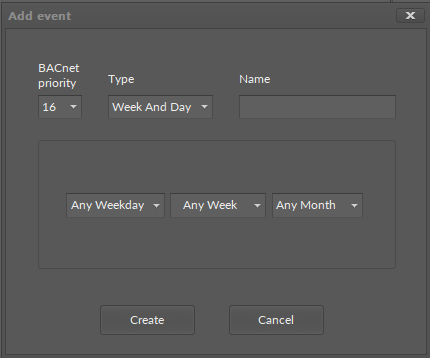

For Week and Day:

• specific weekday, week, and month of the event.

The Clear Irrelevant button removes all event that already took place.
