DALIOnOffPresetValue

This component has the built-in DALI command, which sends a lighting level to directly to DALI device/devices. The component has defined two sending slots, so different values for on and off trigger can be defined.

Slots

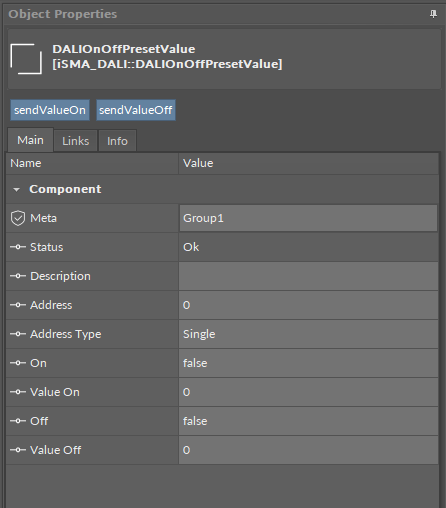

The DALIOnOffPresetValue component has the following slots:

• Status: shows the component’s current status;

• Description: user description up to 32 characters;

• Address: short DALI device address or DALI group address;

• Address Type: option to define a single device, group, or all DALI devices;

• On: component input trigger, which sends the direct lighting level from the Value On slot;

• Value On: on direct lighting level;

• Off: component input trigger which sends the direct lighting level from the Value Off slot;

• Value Off: off direct lighting level.

Actions

The DALIOnOffPresetValue component has the following actions:

• Send Value On: sends the direct level value assigned to On trigger to DALI device/devices.

• Send Value Off: sends the direct level value assigned to Off trigger to DALI device/devices.
