Nand


Applicable to library's version 1.0

The Nand component performs an alternative denial (a reversed conjunction)—the Out slot value is false if and only if all active input values are true; in case any of the In slots is false, the Out value is true.

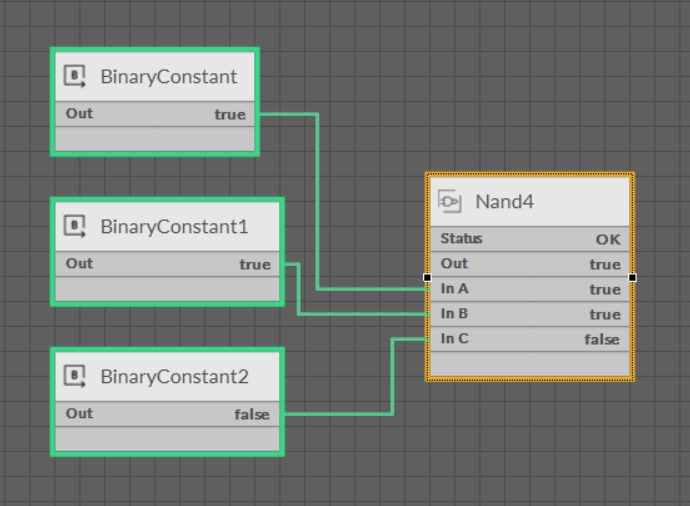

The Nand component

Slots

The Nand component has the following slots:

  • Status: indicates the current status of the component (OK, Fault);
  • Out: the alternative denial of values of the In slots;
  • InA⁠-InN: 10 or 4 input slots (depending on the component's variant).

Variants

The Nand component comes in two variants—with 10 or 4 In slots. The 4 slots variant uses less memory within application.

  • Nand10: component with 10 In slots;
  • Nand4: component with 4 In slots.
