Connections

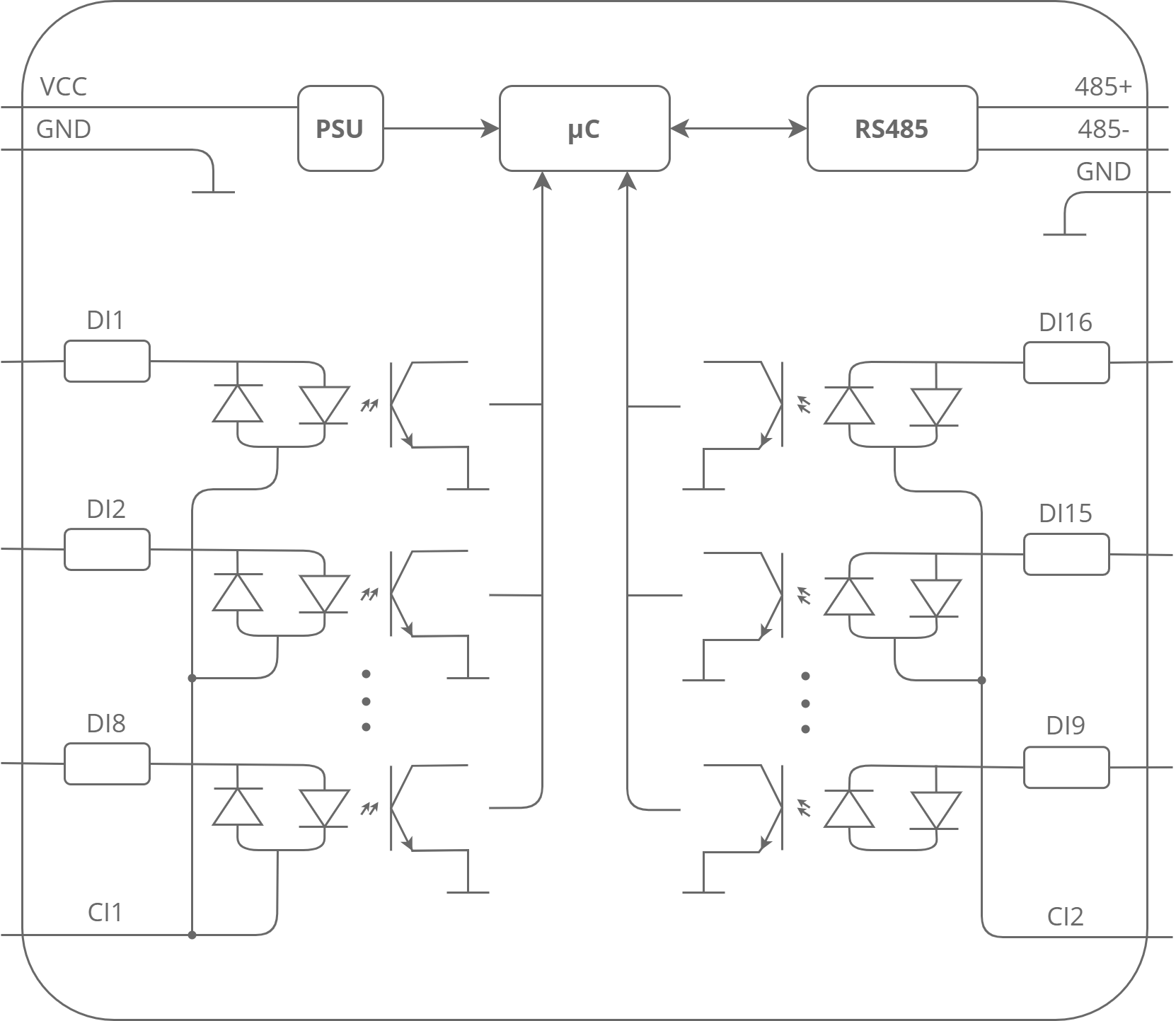

Block Diagram

Block diagram


Power Supply Connection

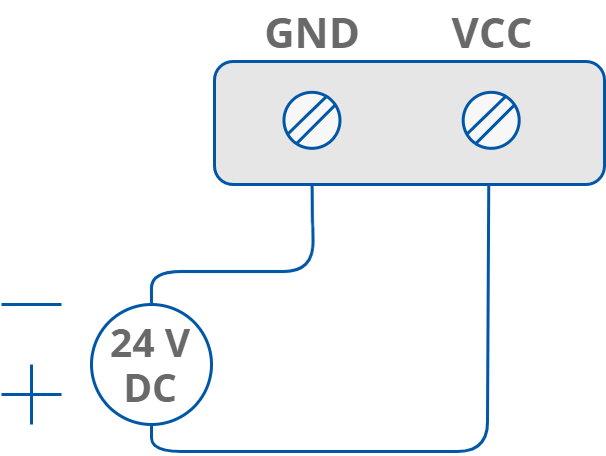

DC Power Connection

DC power connection


AC Power Connection

AC power connection

Communication Bus Connection

Communication bus connection

Digital Inputs Connection

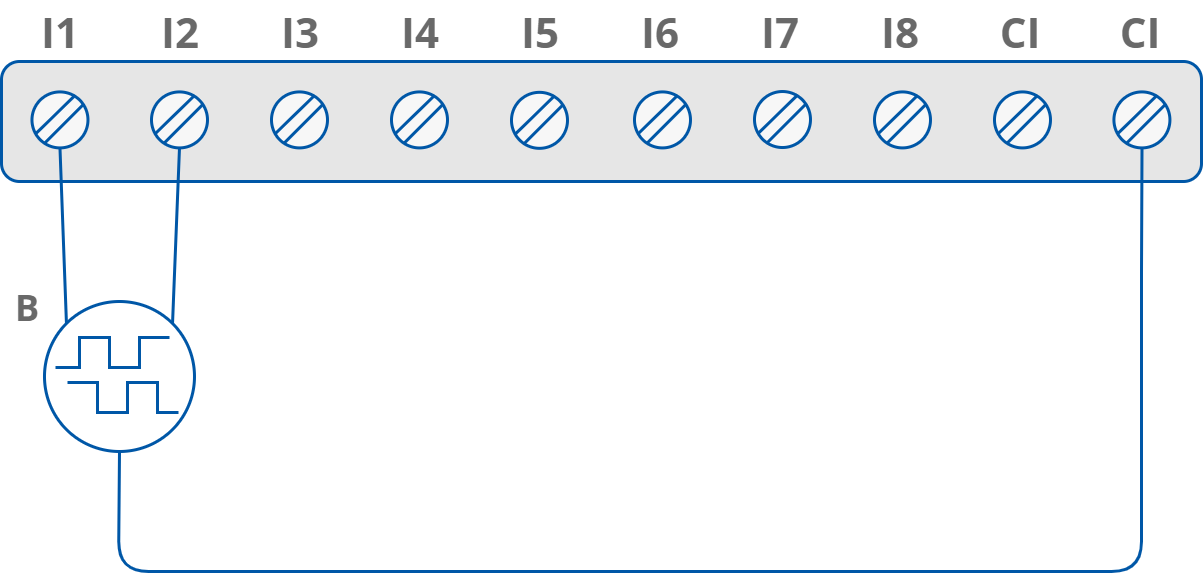

Connection of Encoder

Connection of encoder

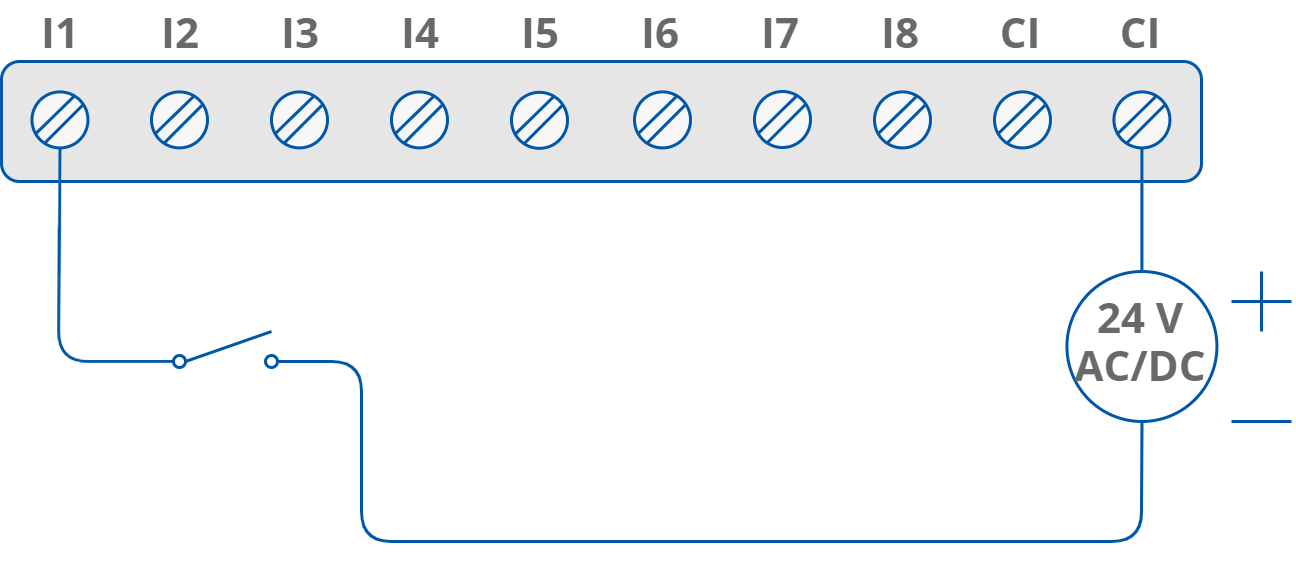

Connection of Input

Connection of input

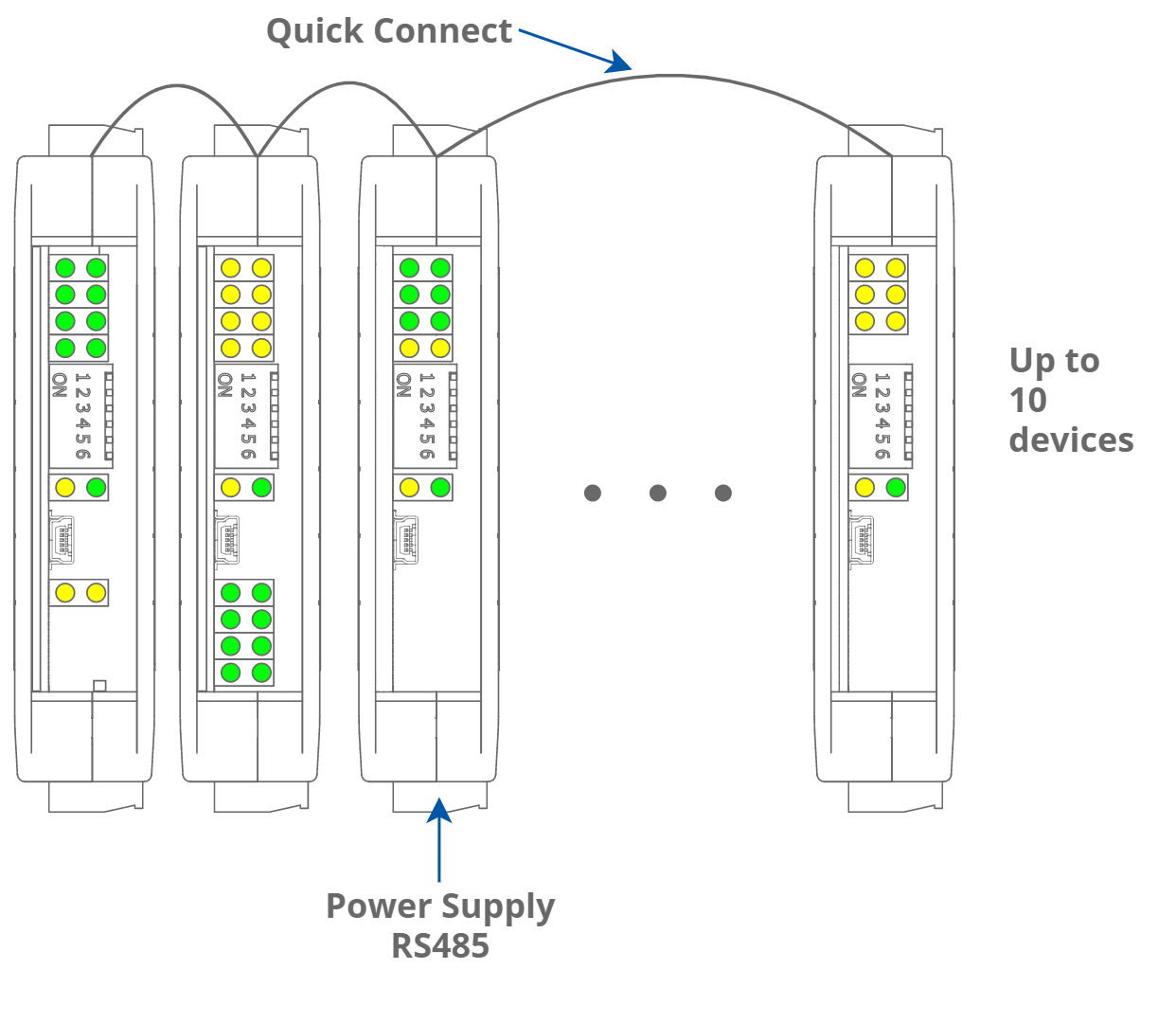

Quick Connector

Quick Connector is a unique feature of modules that allows for quickly connecting a group of devices with a flat ribbon cable. Thanks to this solution, it is enough to connect power and RS485 communication to one of the devices in the group and the others will be powered and communicated with ribbon cable.

The Quick Connector is sufficient to connect up to 10 devices next to each other. What is important that the various types of modules in the SFAR-S family can be connected with the ribbon cable.

Quick connector
