DIP Switch

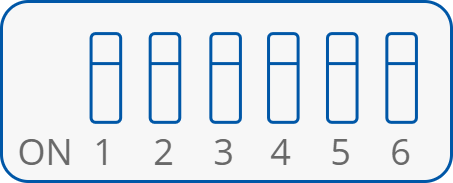

DIP switch
Switch | Function | Description |
|---|---|---|
1 | None | - |
2 | None | - |
3 | Bias Pull Up | Switching pull-up resistor |
4 | Bias Pull Down | Switching pull-down resistor |
5 | Network Termination | Switching terminating resistor 120 Ω |
6 | Restoring default settings | Restoring default settings |
Description of switches
