LeadLagRuntime

The LeadLagRuntime provides a lead-lag control of from 2 to 16 loads based upon their accumulated runtimes (elapsed active time). This component balances the active runtime of each of the devices. Only one of the controlled devices will be active at a time based on runtime.

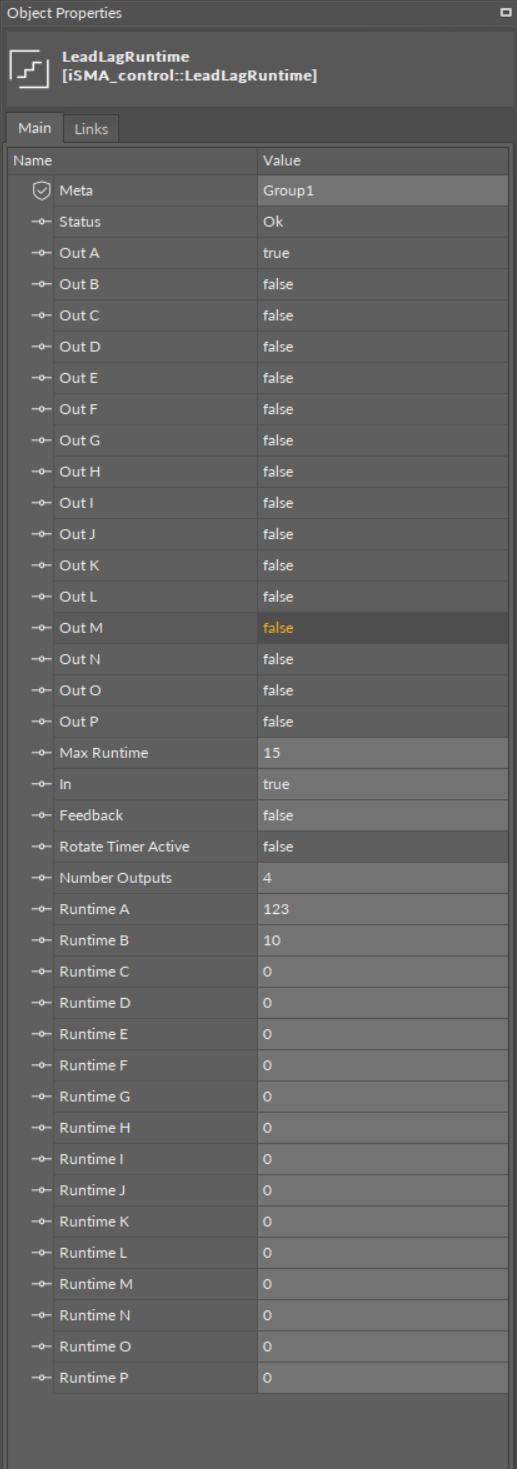

Slots

The LeadLagRuntimecomponent has the following slots:

• Status: shows the component's status;

• In: Boolean input that controls whether any control device should be on. If this input is true, one of the outputs will be active based on runtime;

• Number Outputs: specifies the number of devices (outputs) that are controlled;

• Max Runtime: specifies the maximum amount a given output will be true before switching to another output;

• Feedback: Boolean input, which provides positive feedback that a controlled device actually has started. Setting this value to true (and not linking) disables the alarm feature;

• Rotate Timer Active:

• Out A-P: Boolean outputs, each typically linked to the BooleanWritable control point with the DiscreteTotalizerExt. Outputs are typically used to control loads of some type, such as 2 or more pumps;

• Runtime A-P: inputs that are used for runtime feedback for the corresponding Out A-P. These inputs will typically be linked to the ElapsedActiveTime property of the DiscreteTotalizerExt that is measuring the runtime of the corresponding Out A-P.
