The FCU_PI component is a regulator with proportional and integral actions.

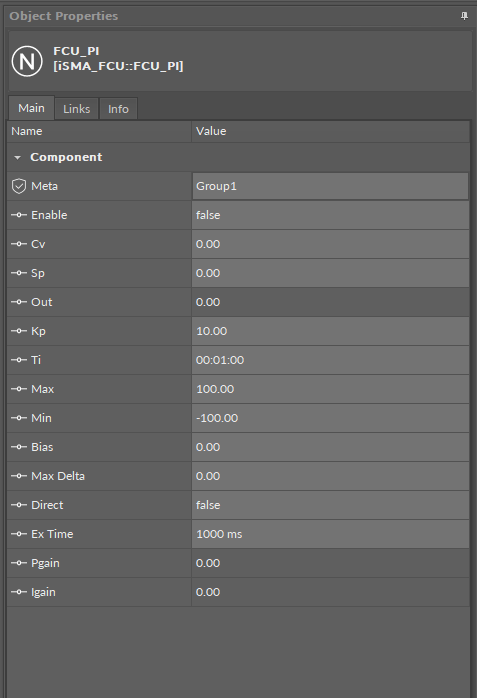

The FCU_PI component
The FCU_PI component has the following slots:
-
Enable: enables or disables the component–if the component is disabled (the Enable slot is set to false), the Out slot is set to 0;
-
Cv: the numeric input slot with the controlled value;
-
Sp: allows to set the setpoint for controlled value;
-
Out: the output slot of the component;
-
Kp: allows to set the value of proportional gain constant;
-
Ti: allows to set the value of the integral time constant (setting the slot to 0, disables this integral action);
-
Max: allows to set the maximum value of the output of component;
-
Min: allows to set the minimal value of the output of component;
-
Bias: allows to set the bias value–this value is added to the Out slot if Ti slot is set to 0;
-
Max Delta: allows to set the maximum amount the Out slot can change by in the exTime (setting to 0 disables this function);
-
Direct: allows to set the acting process;Available settings: true (direct-acting process), false (reverse the acting process);
-
Ex Time: allows to set the period of loop execution;
-
Pgain: shows the value of the output signal, which was calculated by the proportional action;
-
Igain: shows the value of the output signal, which was calculated by the integral action.
