Hardware Specification
Dimensions
MINI Series (Without Hand Switches)

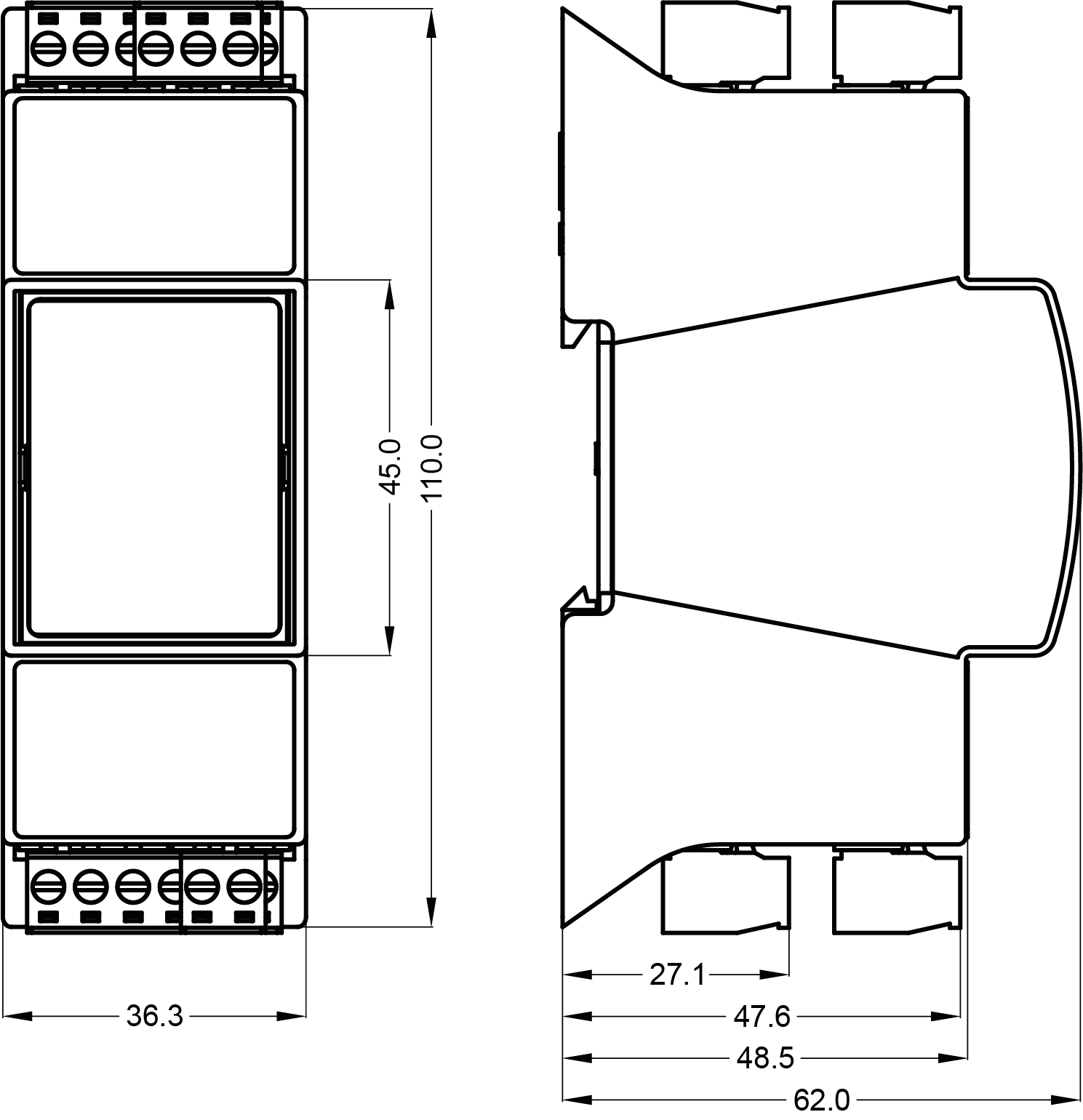

MINI series dimensions (without hand switches)
MINI Series (With Hand Switches)

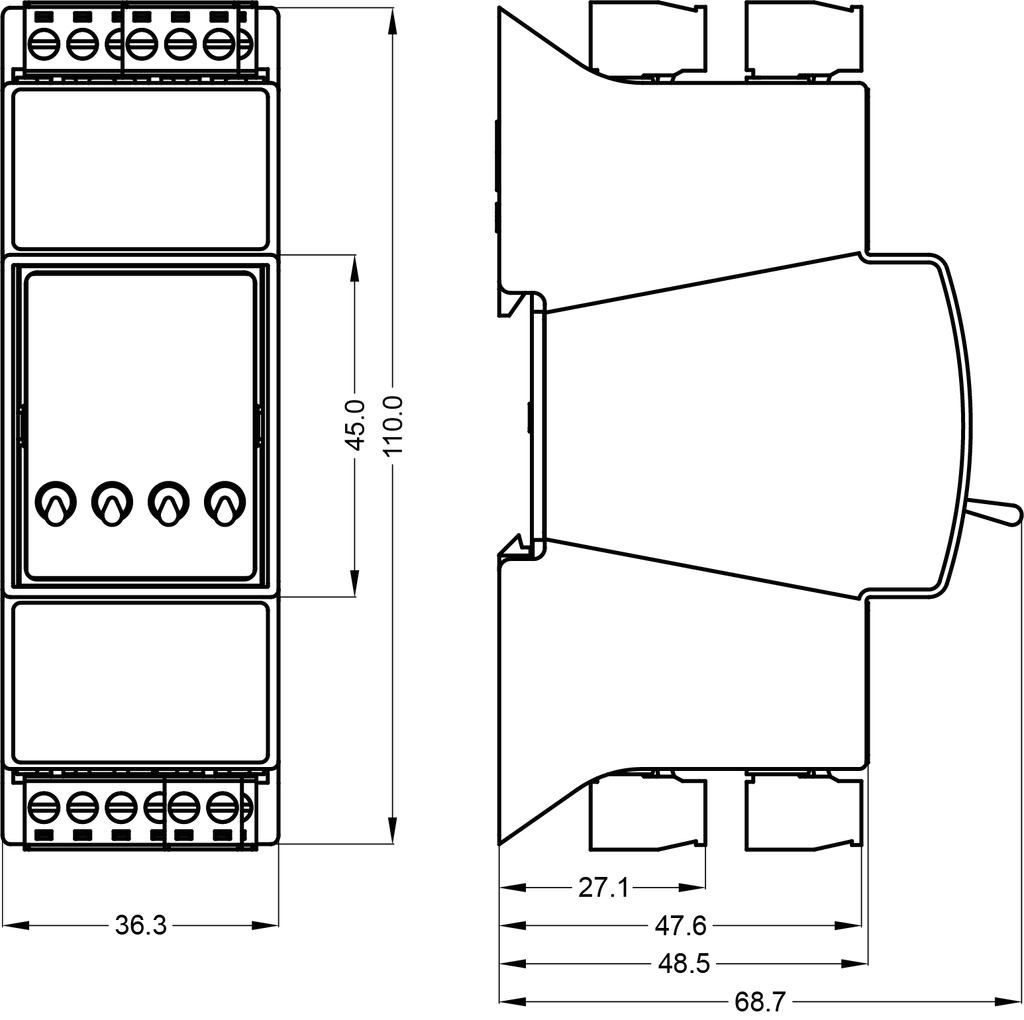

The MINI series dimensions (with hand switches)
MIX18 Series

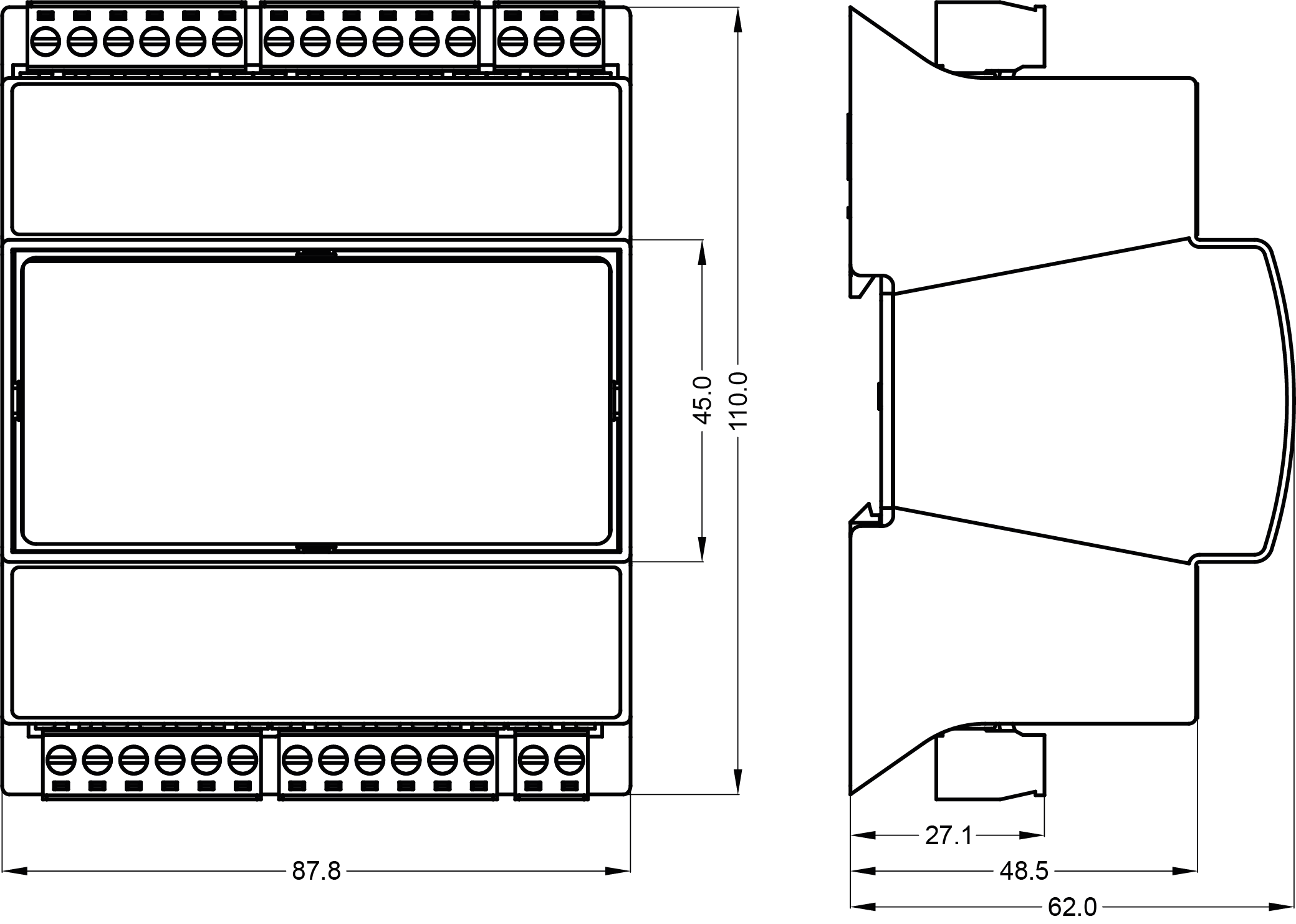

MIX18 series dimensions
MIX38 Series

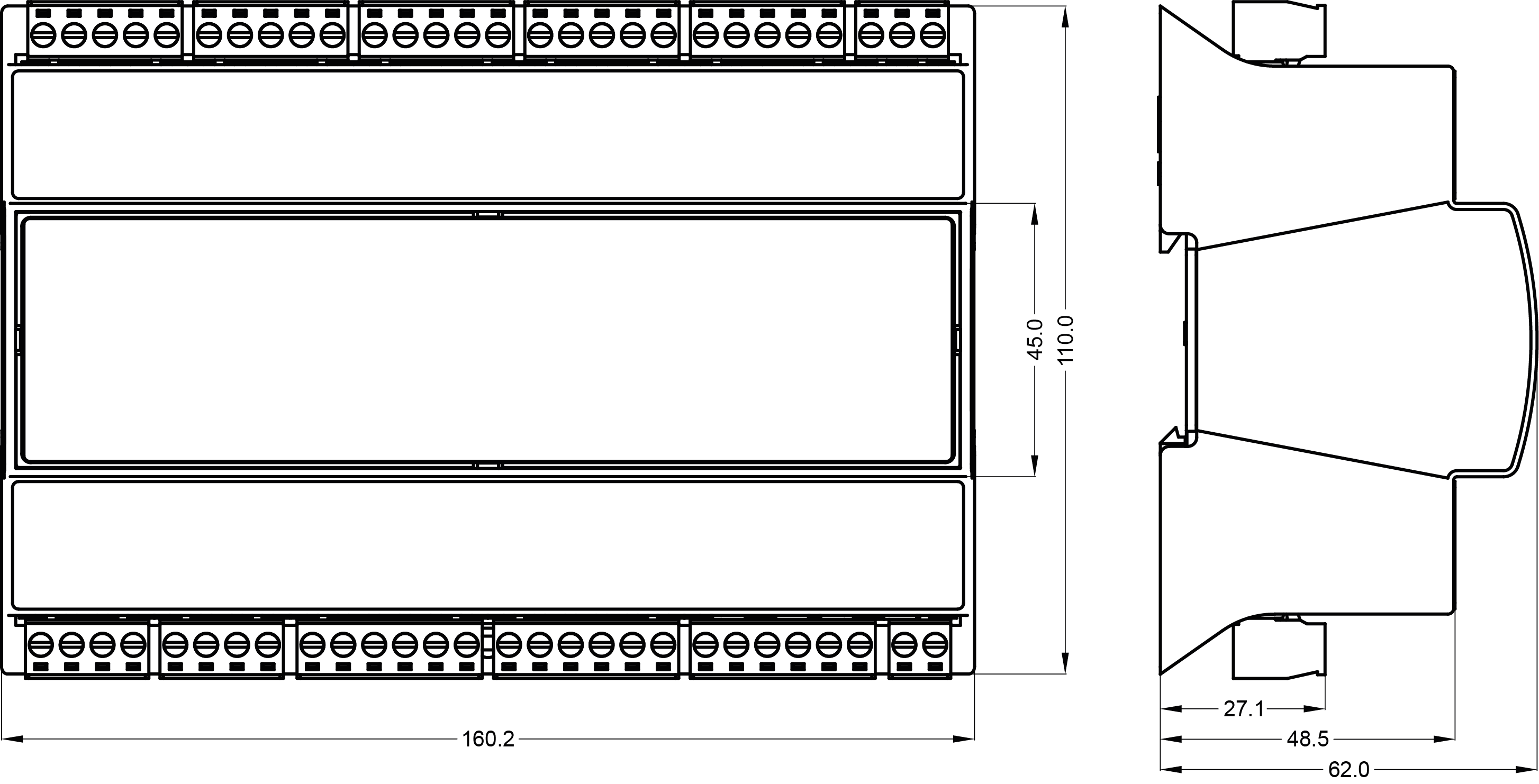

MIX38 series dimensions
MAX Series (Without Hand Switches)

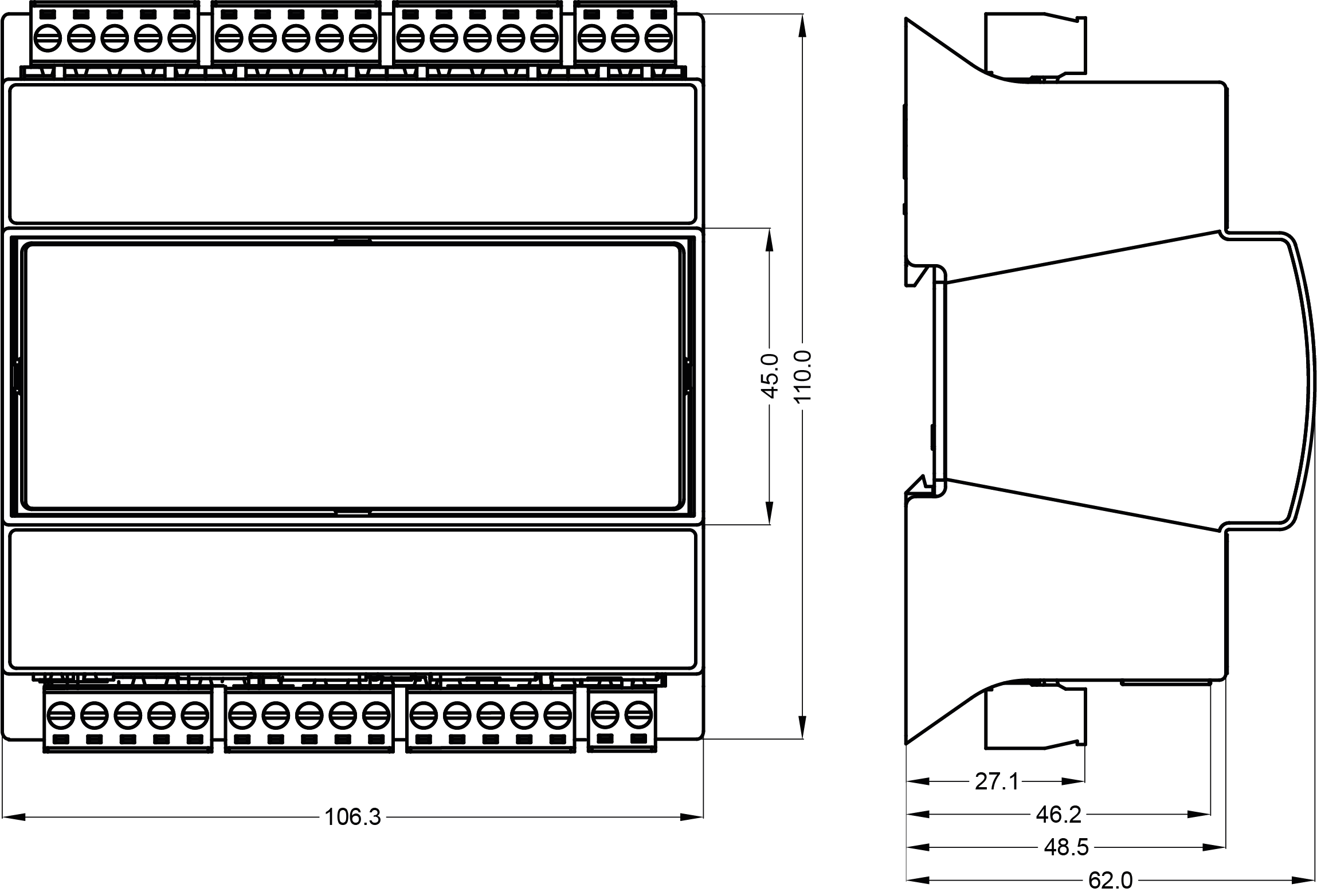

MAX series dimensions (without hand switches)
MAX Series (With Hand Switches)

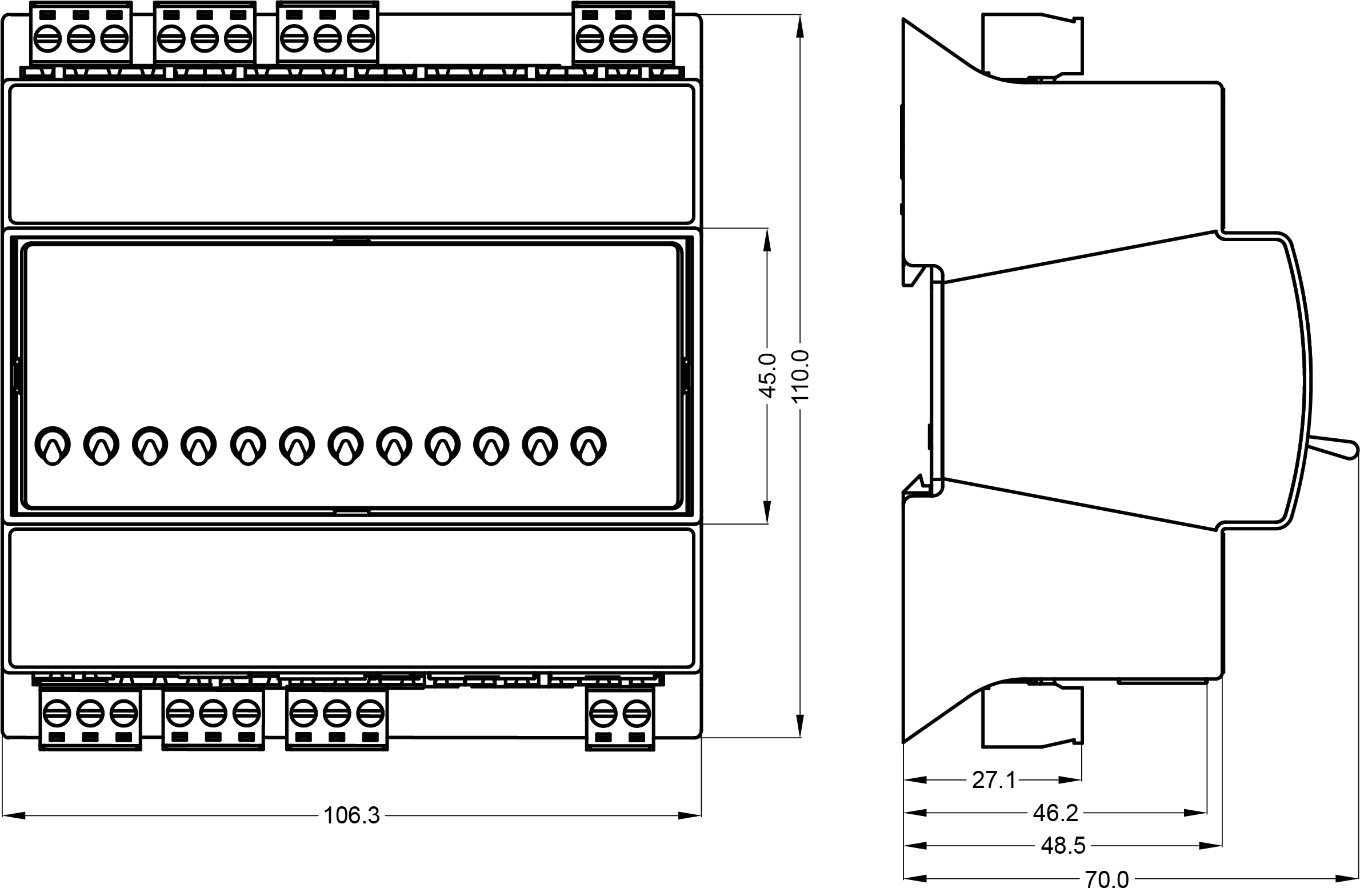

MAX series dimensions (with hand switches)
Power Supply Connection

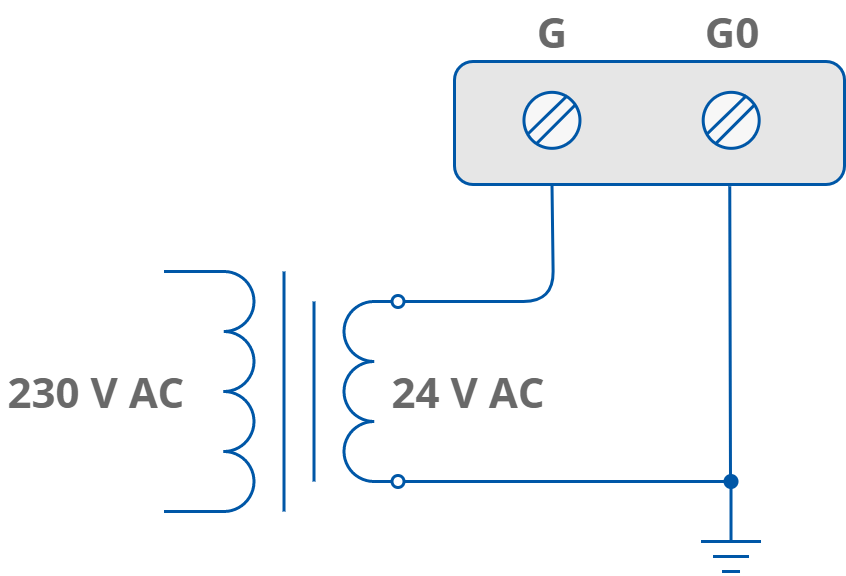

AC power supply connection

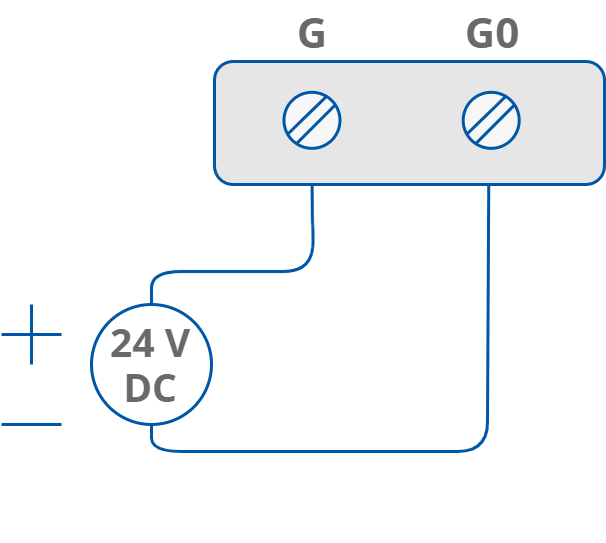

DC power supply connection
Front Panel LED Indicators

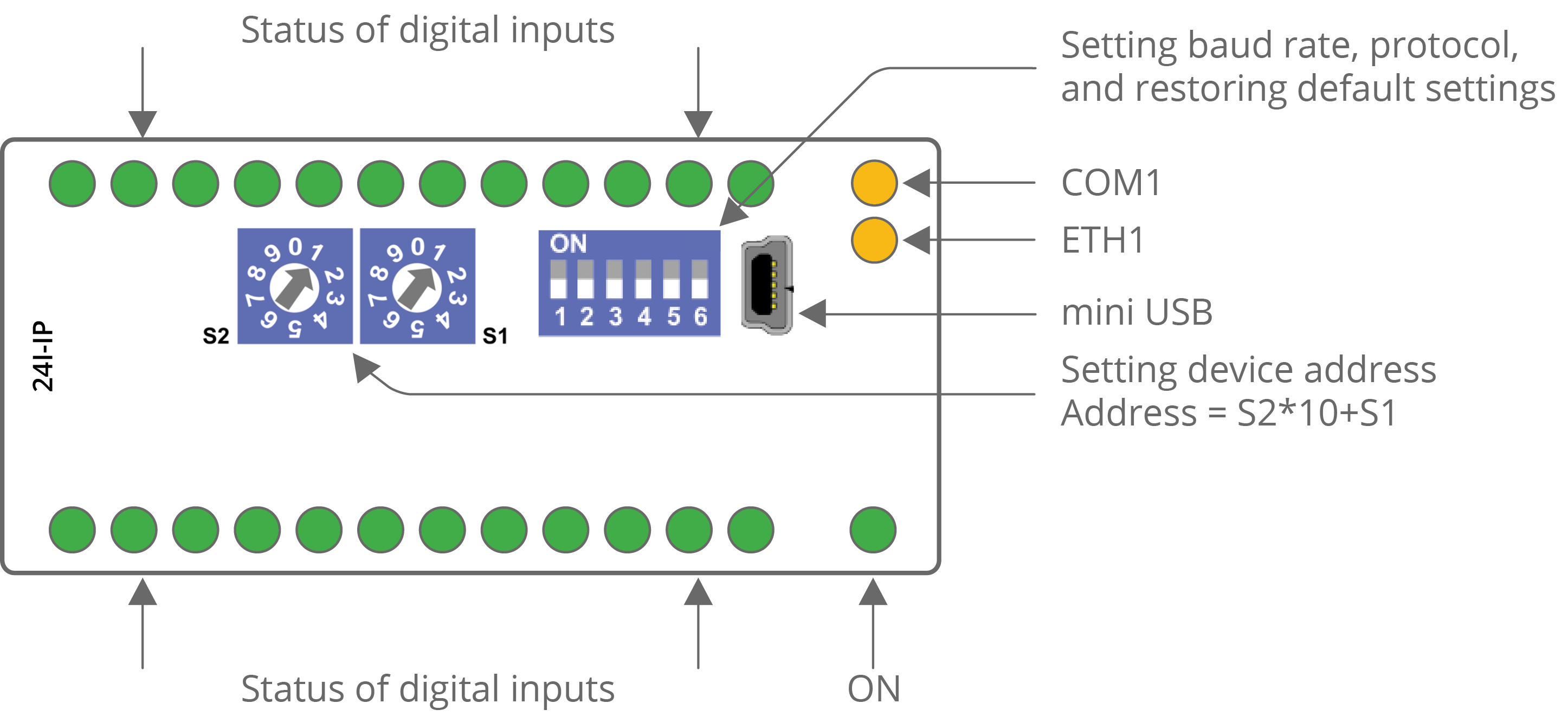

The front panel of the Multiprotocol I/O modules features an openable lid that ensures protection to the USB interface, DIP and rotary switches once the module is assembled in the control cabinet. For initial configuration, the lid must be opened using a flat-head screwdriver to provide access to the interfaces located beneath it.

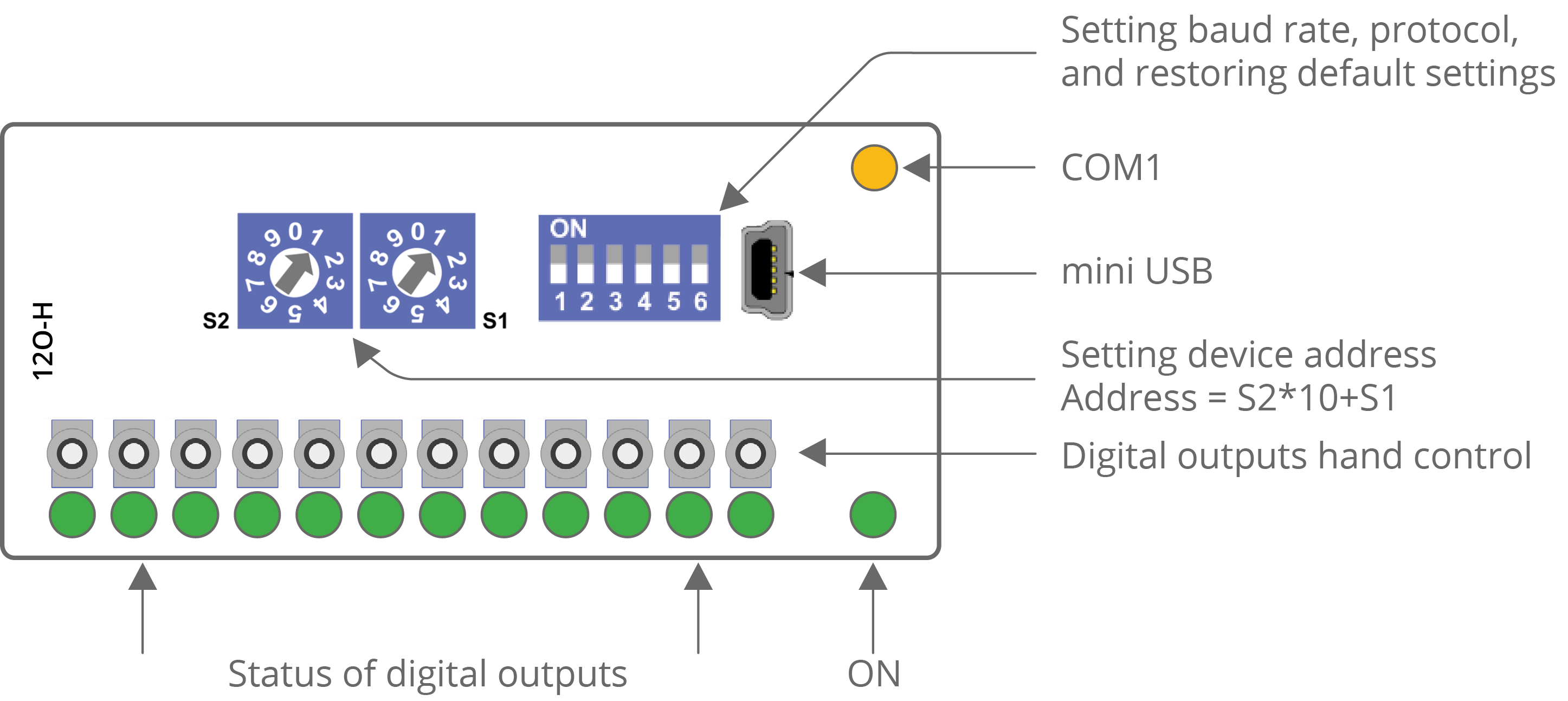

4U4O-H, 8U, and MIX18 open front panels

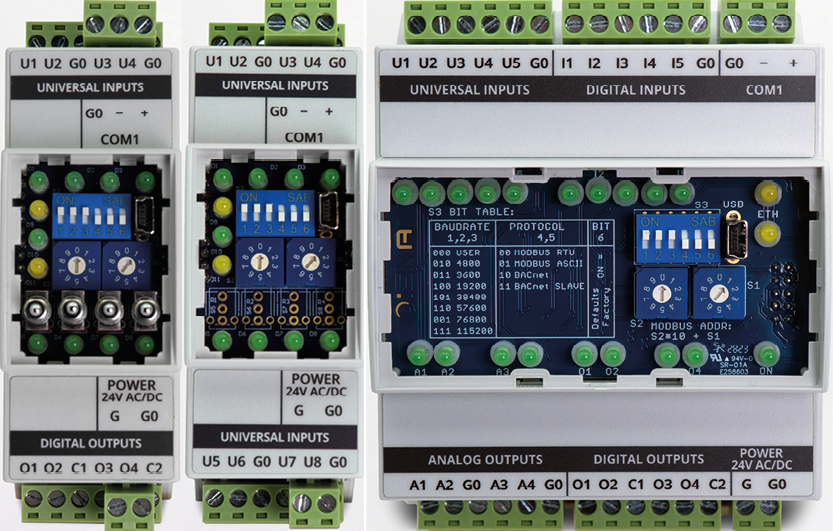

MIX Series Front Panels

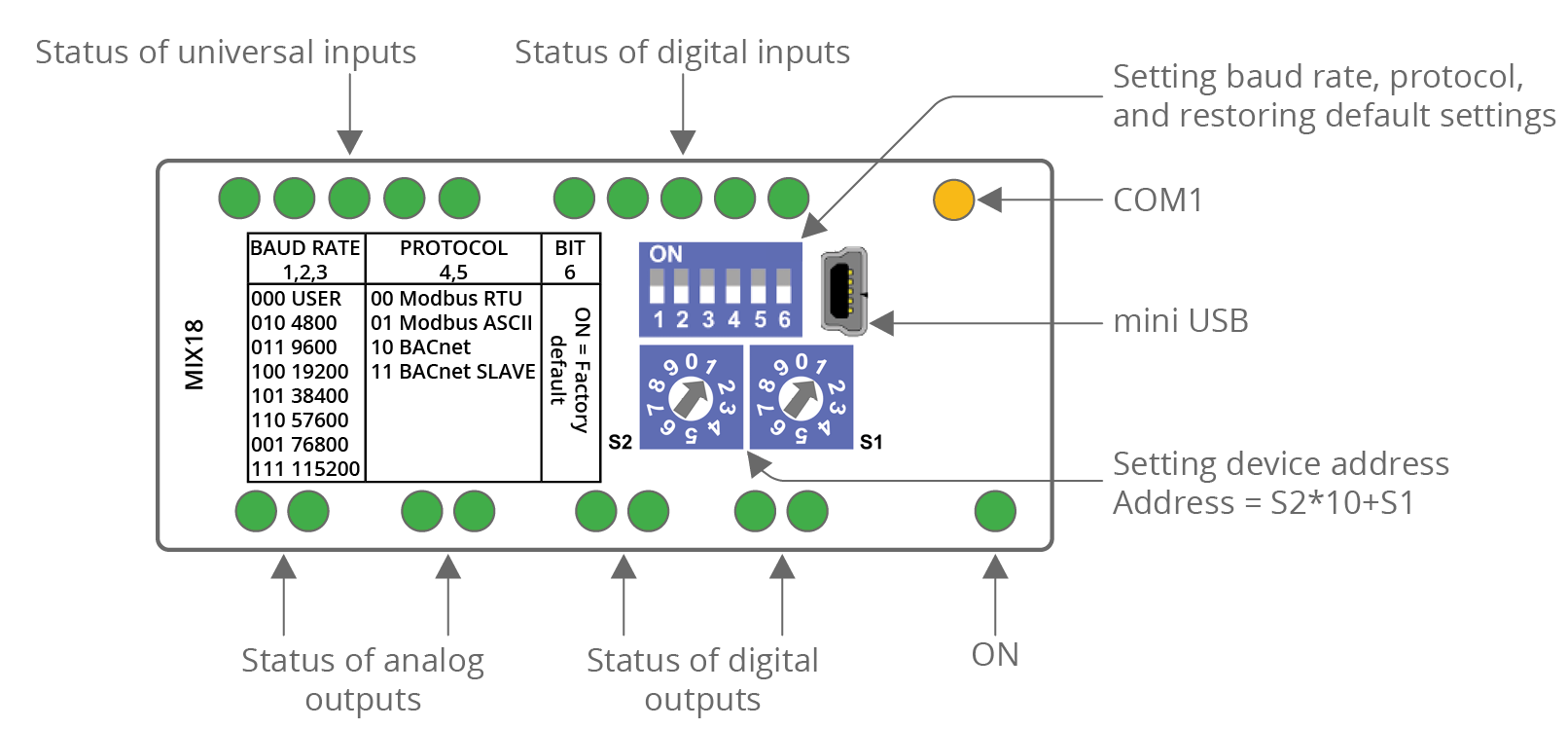

MIX18

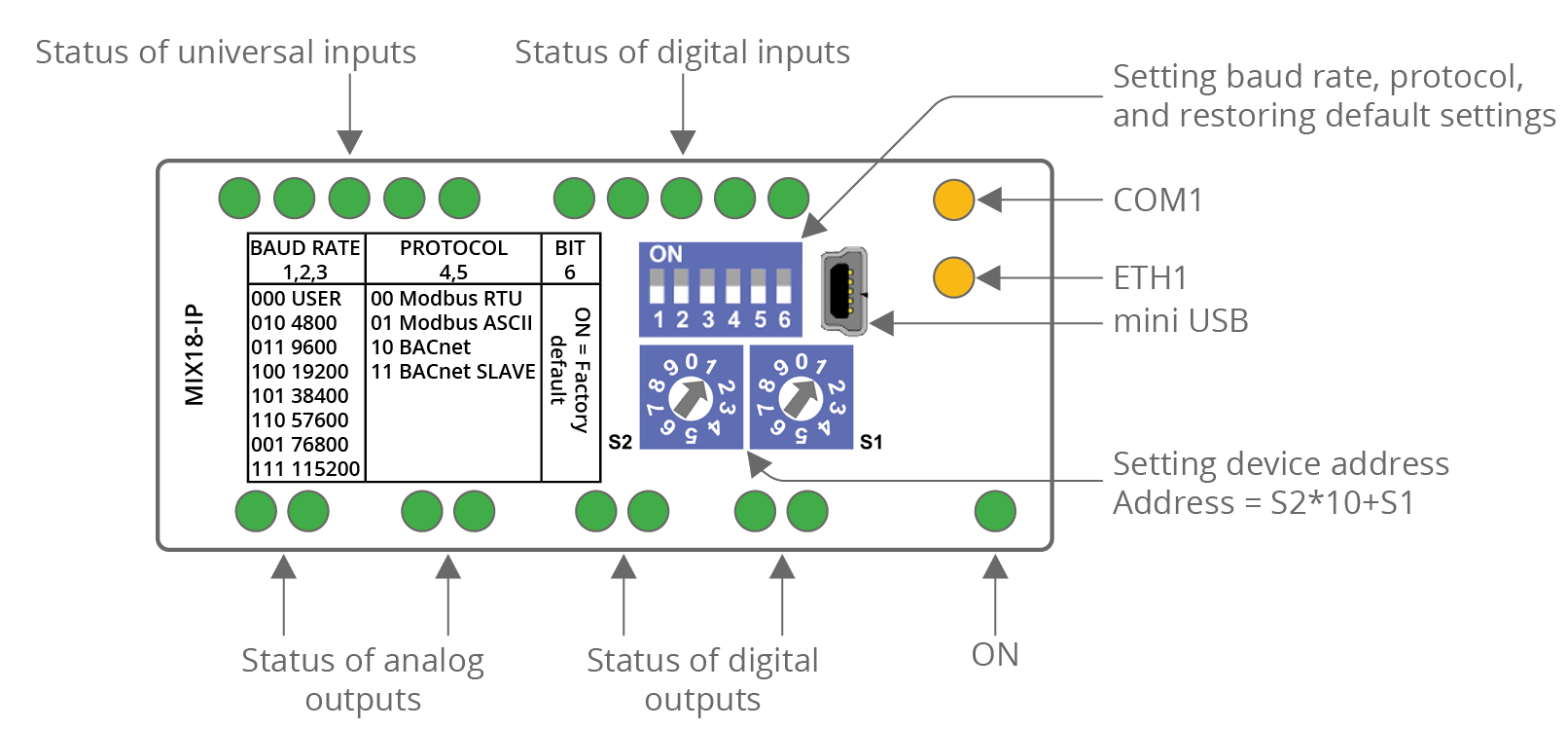

 MIX18 top panel |  MIX18-IP top panel |

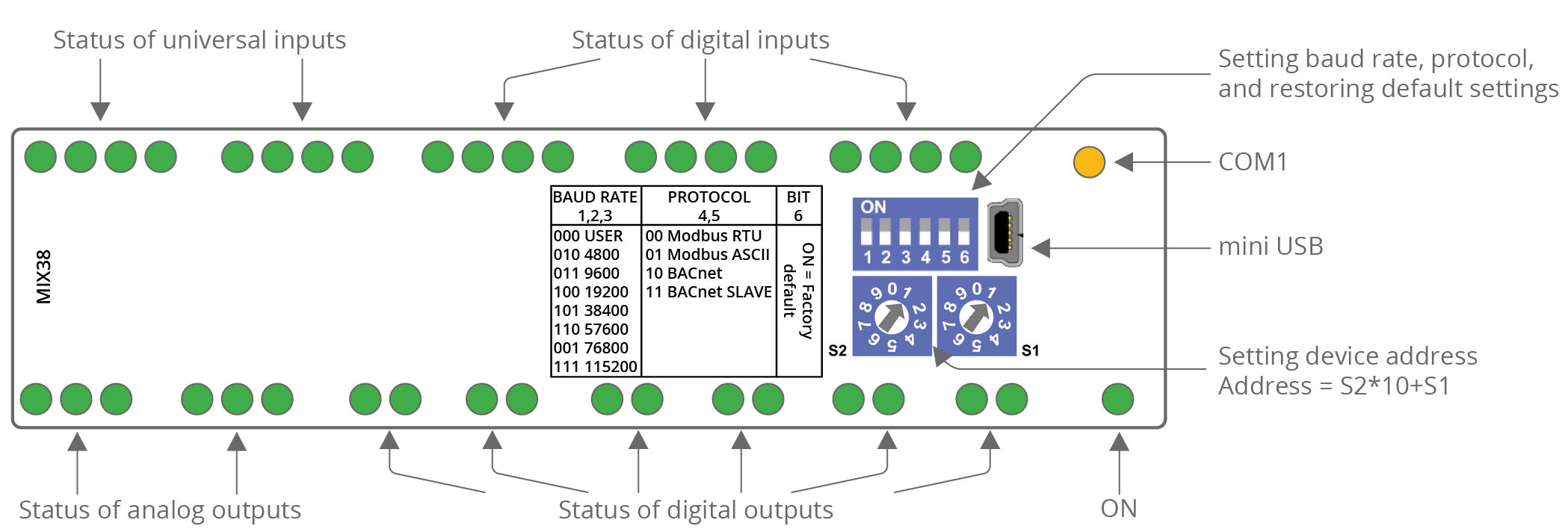

MIX38

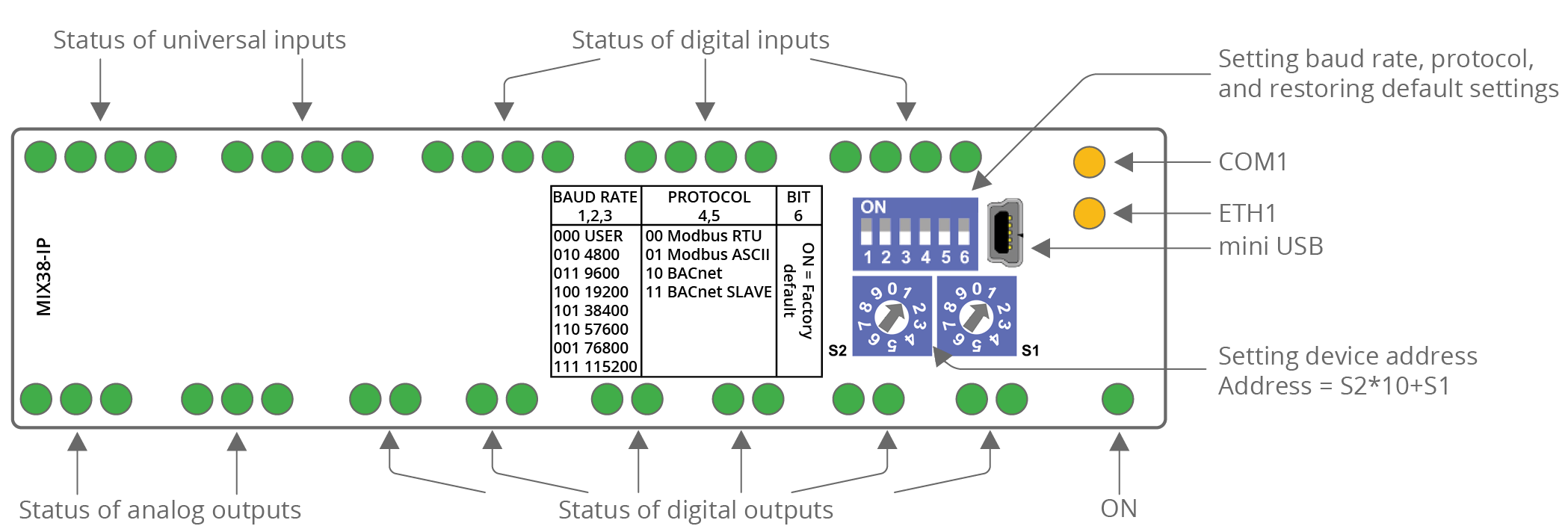

 MIX38 top panel |  MIX38-IP top panel |
MINI Series Front Panels
MINI 8I and 8I-IP
 8I top panel |  8I-IP top panel |

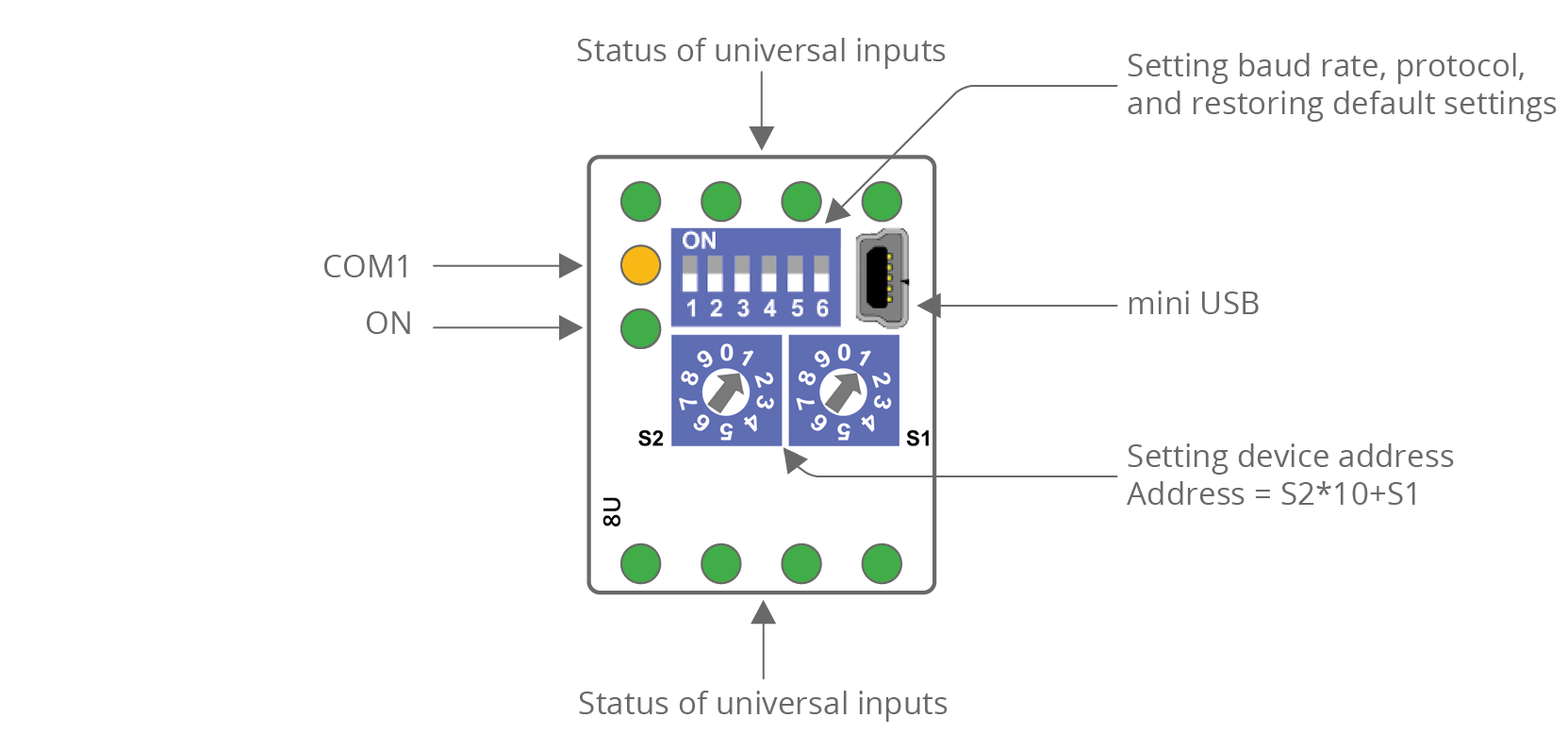

MINI 8U and 8U-IP

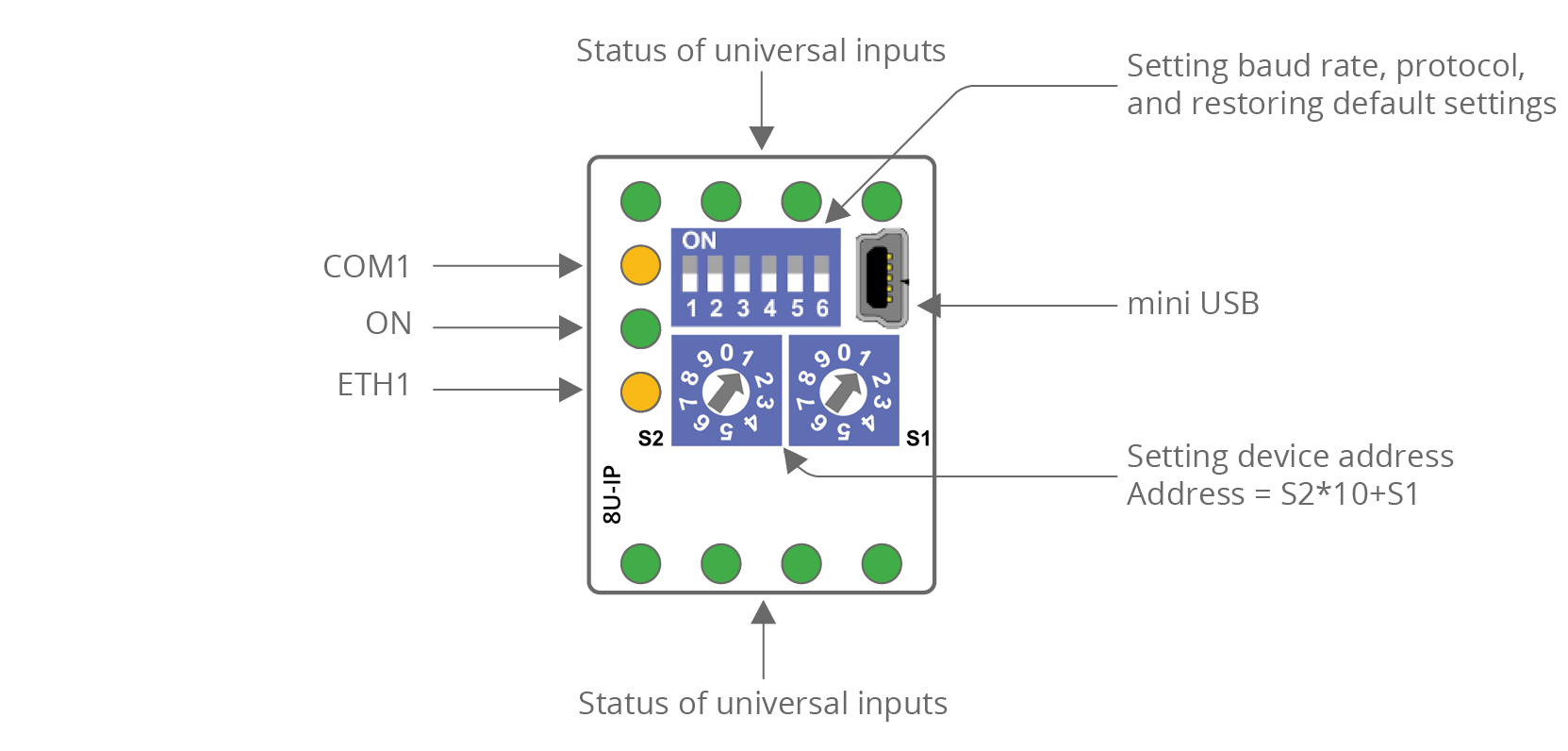

 8U top panel |  8U-IP top panel |

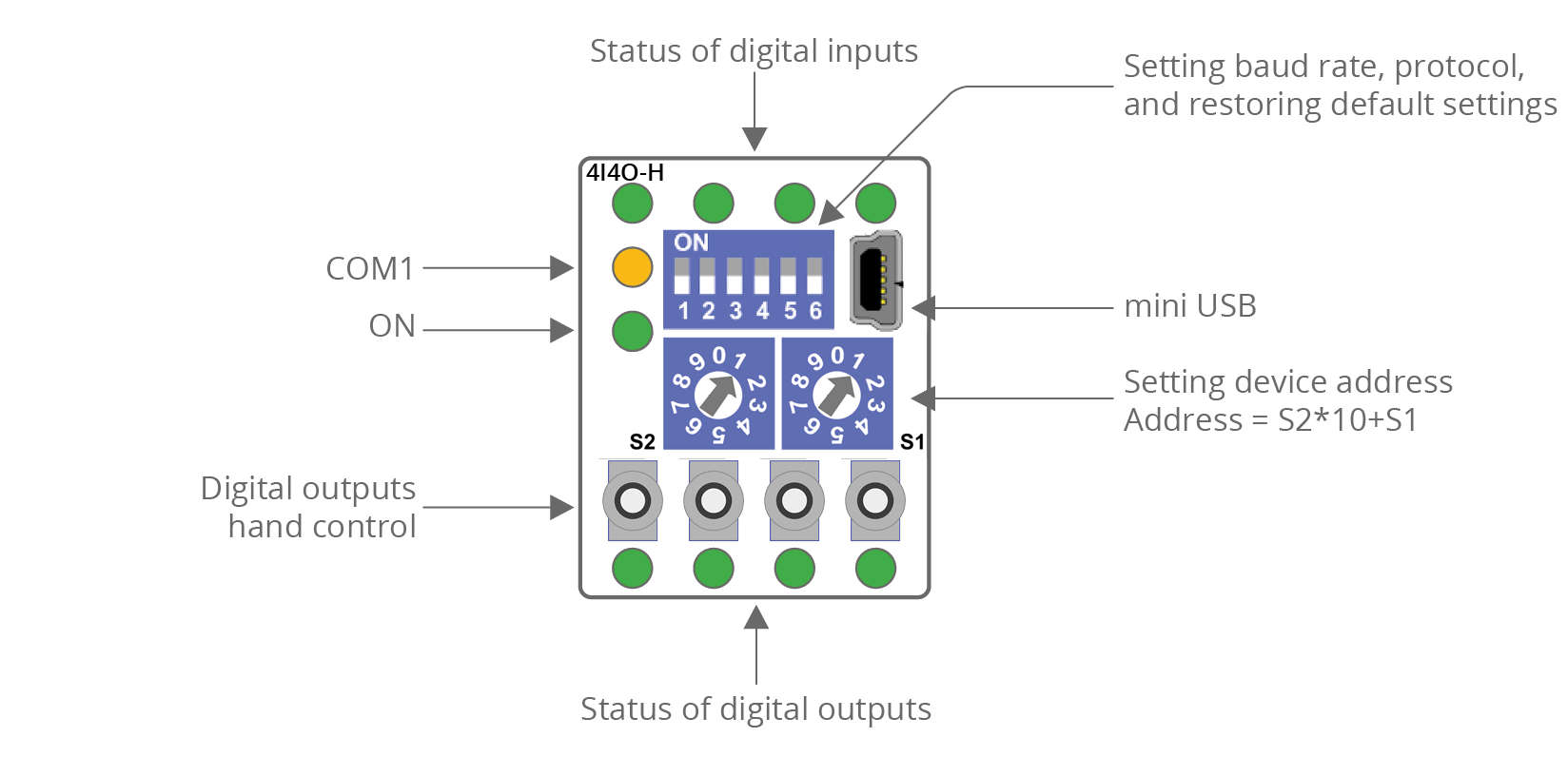

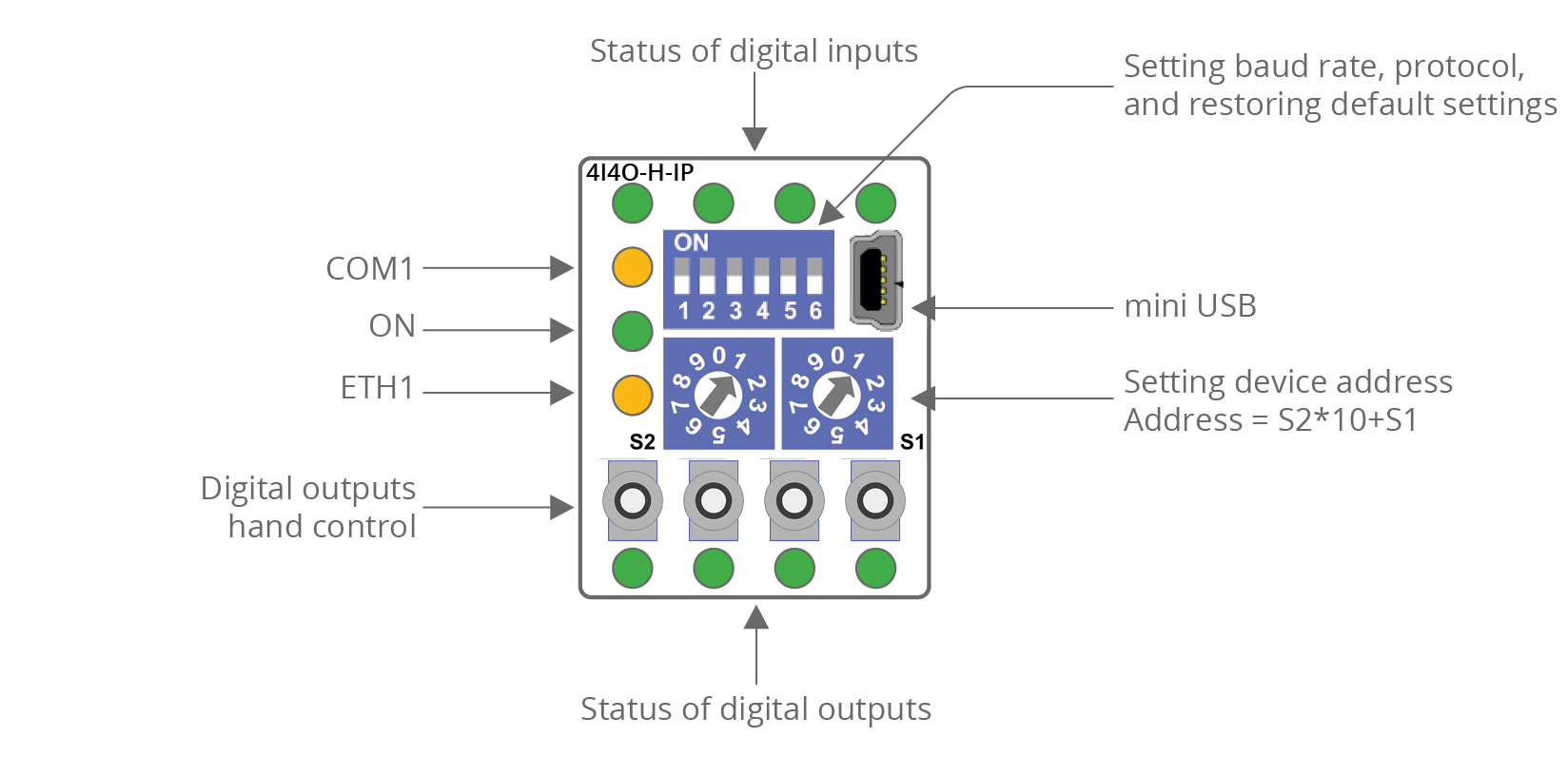

MINI 4I4O-H and 4I4O-H-IP
 4I4O-H top panel |  4I4O-H-IP top panel |
MINI 4U4O-H and 4U4O-H-IP
 4U4O-H top panel |  4U4O-H-IP top panel |

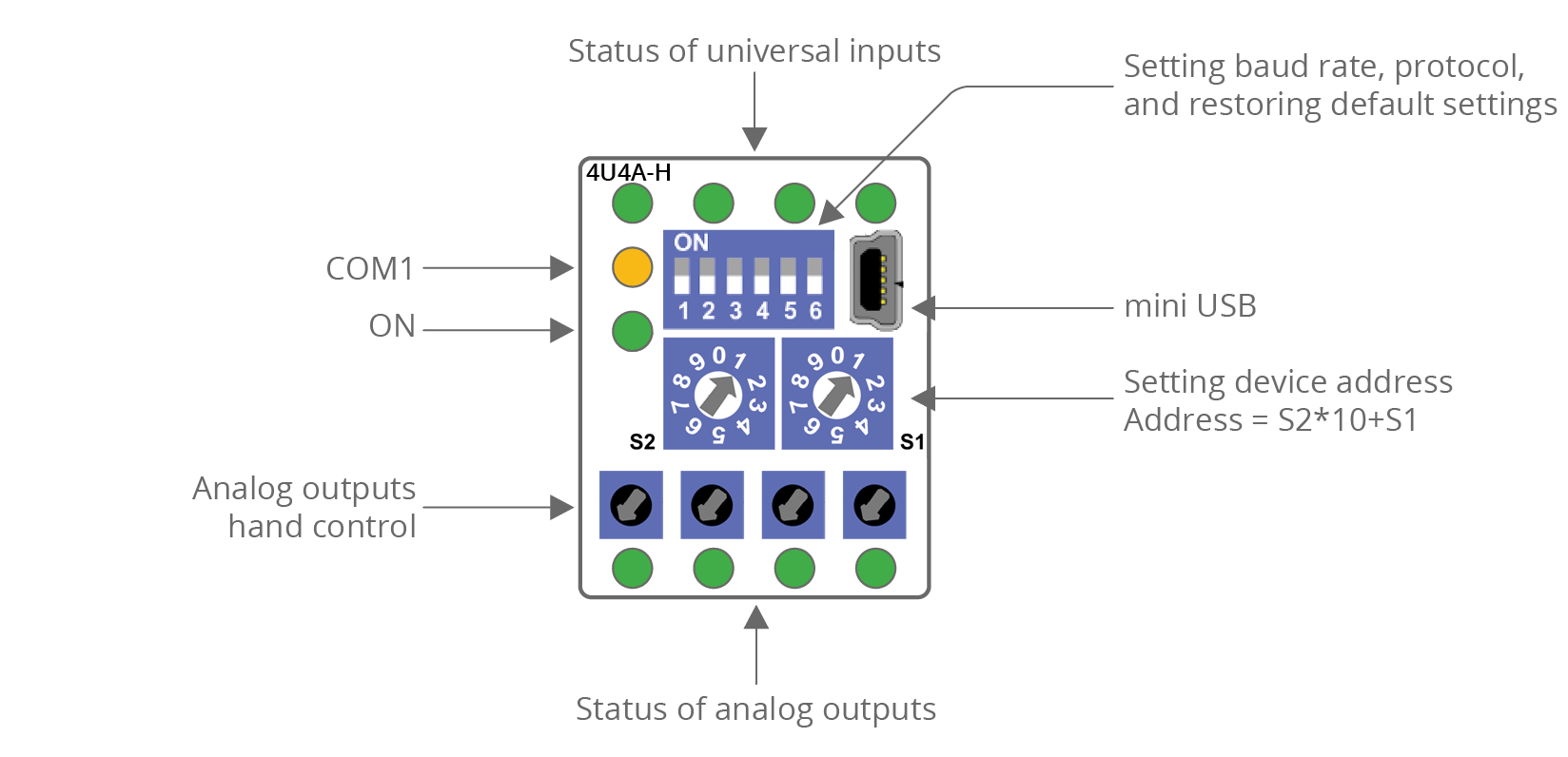

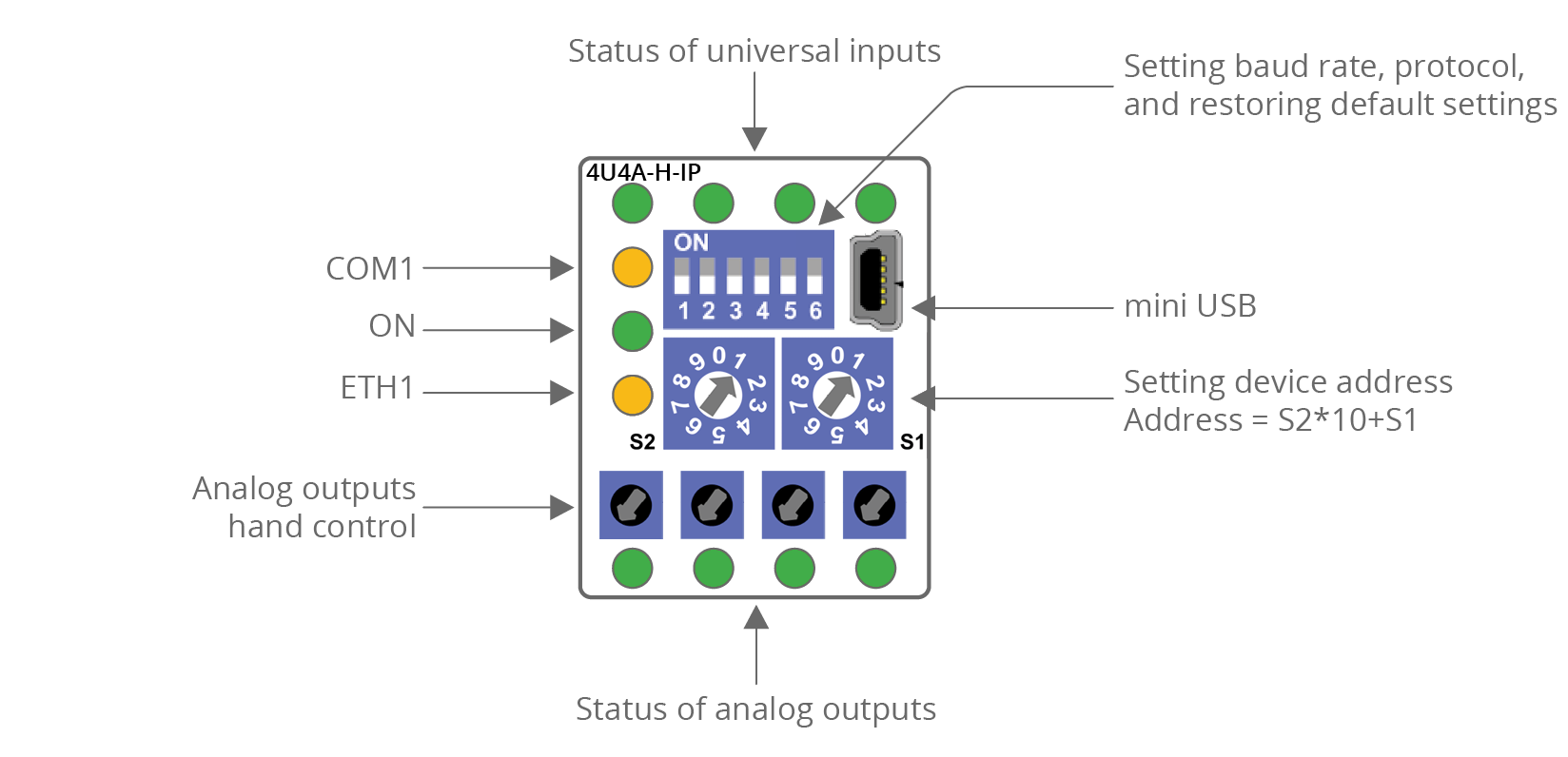

MINI 4U4A-H and 4U4A-H-IP
 4U4A-H top panel |  4U4A-H-IP top panel |

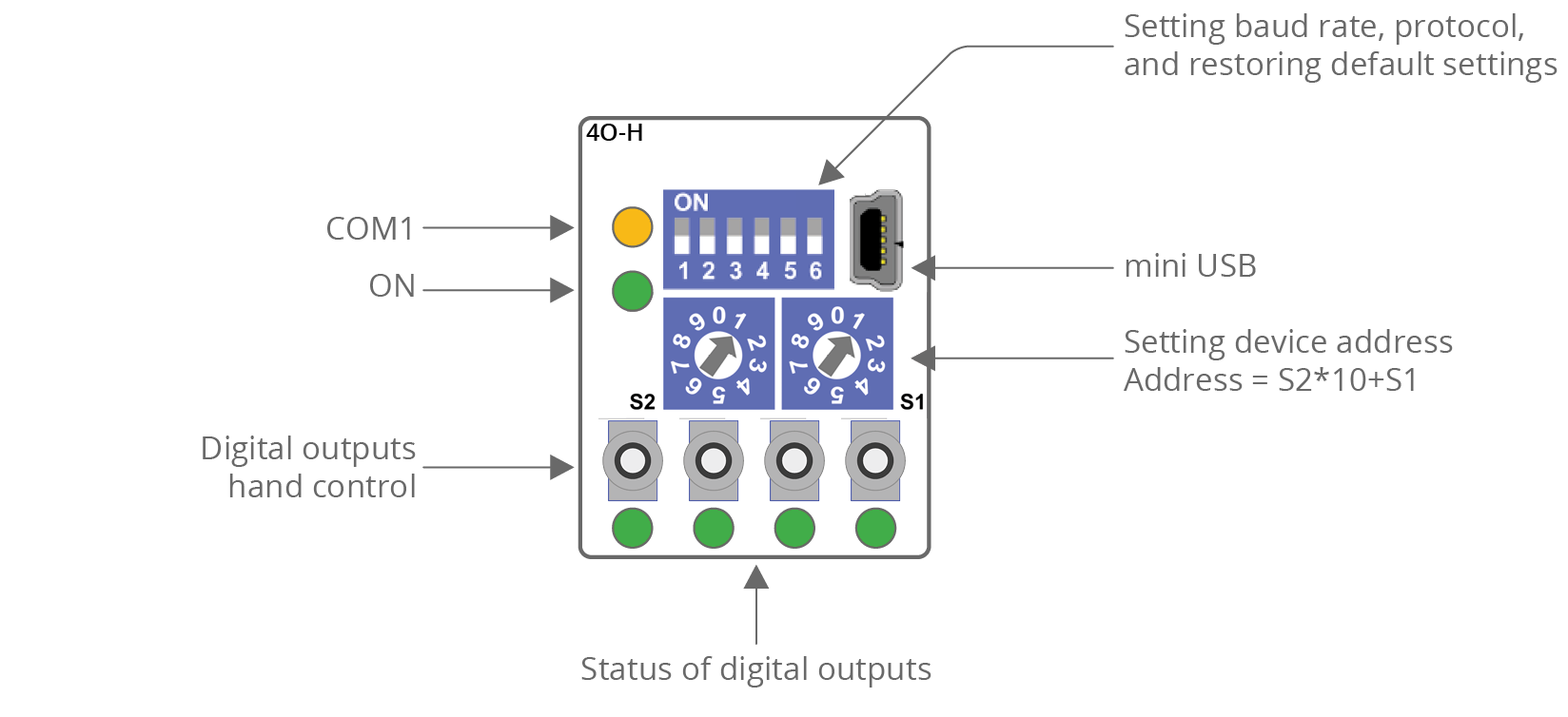

MINI 4O-H and 4O-H-IP
 4O-H top panel |  4O-H-IP top panel |

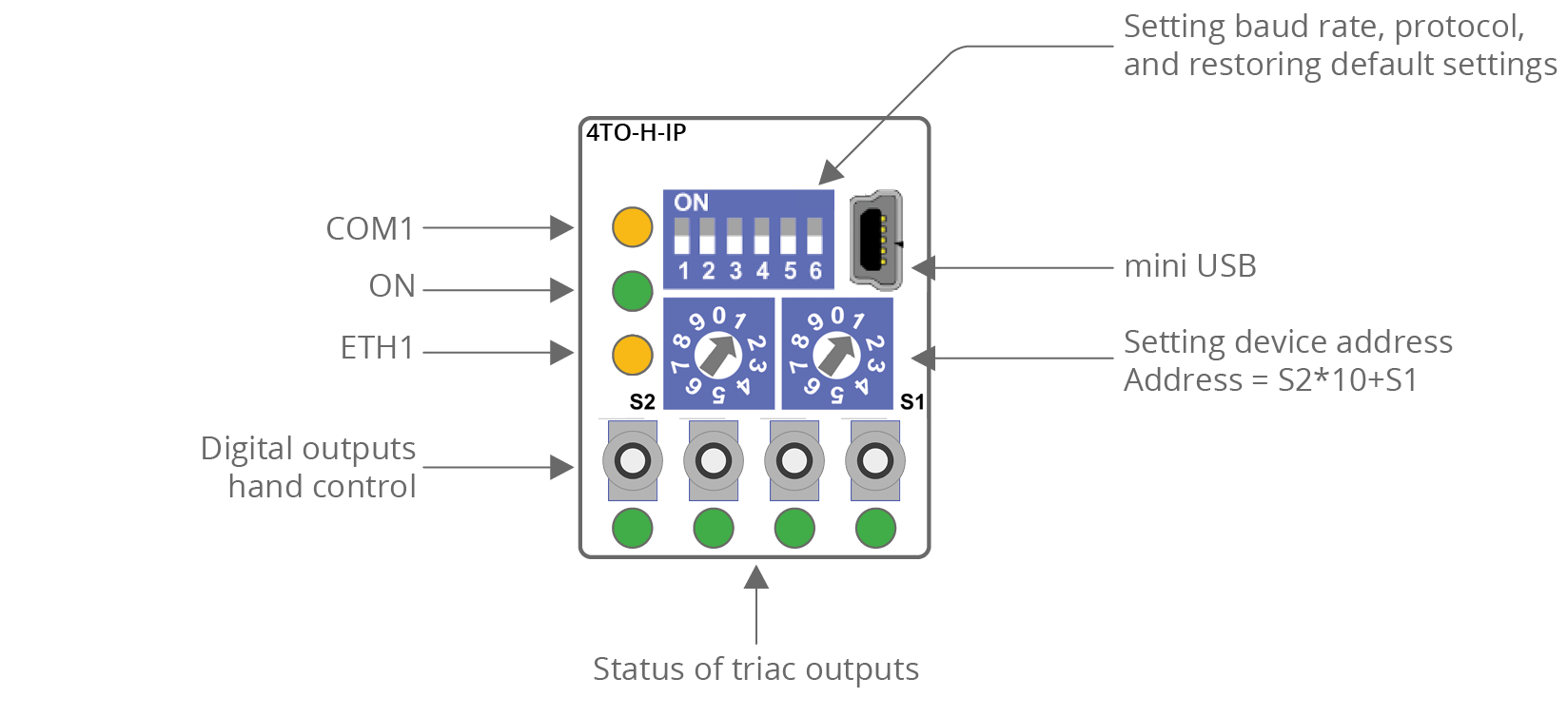

MINI 4TO-H and 4TO-H-IP
 4TO-H top panel |  4TO-H-IP top panel |
MAX Series Front Panels

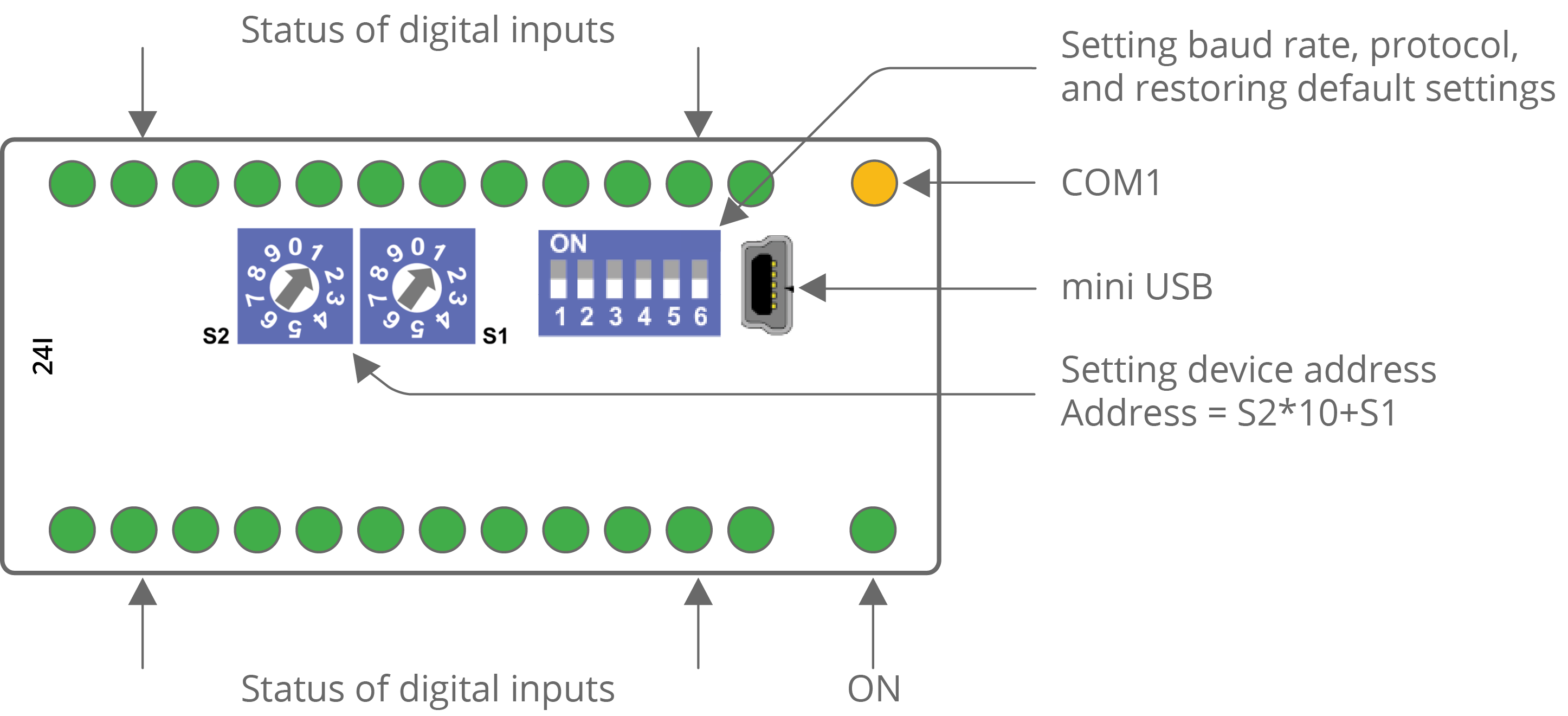

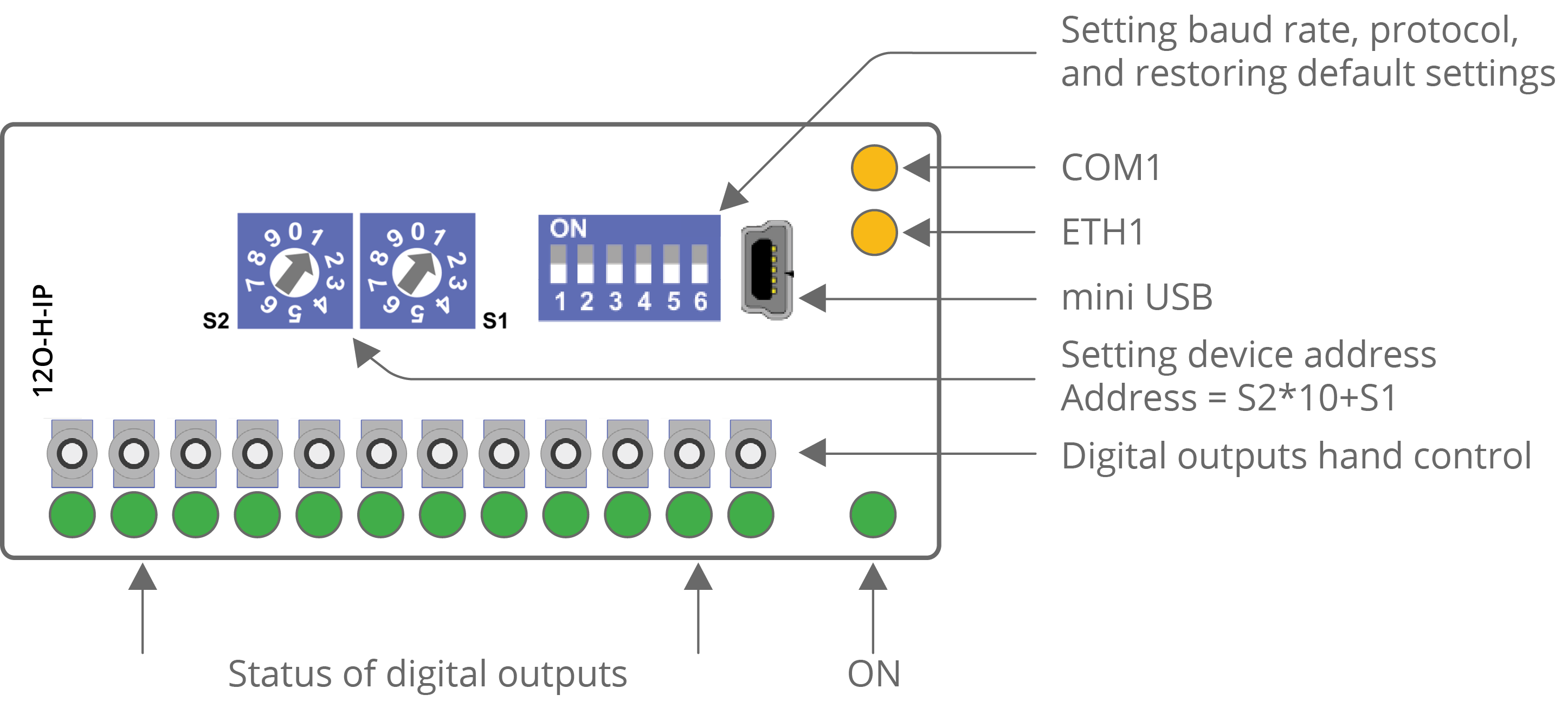

MAX 12O-H and 12O-H-IP
 12O-H top panel |  12O-H-IP top panel |
MAX 24I and 24I-IP
 24I top panel |  24I-IP top panel |
The power LED (ON) is on (green) if the module runs properly.
The communication LED (COM1) is on (orange) for 20 ms after sending each message. If the module receives/sends a lot of messages, the LED can be lit continuously.
The communication LED (ETH1) lights up (orange) in the transmit or receive state when sending/receiving each package through the Ethernet port. As long as the device sends/receives packages, the communication LED blinks continuously.
LEDs indicating the status of the universal inputs (U1-Un) are lit when the resistance connected to the input is less than 5 kΩ (dry contact input is active).
Warning!
The LED also lights up when the voltage connected to the input has a very low potential.
LEDs indicating the status of the digital inputs (I1-In) are lit when the input is active.
LEDs indicating the status of the analog outputs (A1-An) are lit when the output voltage or PWM duty cycle is greater than 0.
LEDs indicating the status of the digital outputs (O1-On) are lit when the output is enabled.
LEDs indicating the status of the triac outputs (TO1-TOn) are lit when the output is enabled or PWM duty cycle is greater then 0.
