LEDExt
Warning!
The LEDExt extension is only applicable to the iSMA CONTROLLI HMI Android panels which have a LED lighting built-in (the PA-LED series).
The LEDExt is an extension component which allows to remotely switch on or off the LED lighting on the panel configured in the iCSmartViewRecipient component and change the LED lighting color.
Note
The LEDExt component must be located under the iCSmartViewRecipient component.
The LEDExt extension has the following slots:
Facets: facets backup for integrators to know how to choose LedColor facets in other components;
Led: allows to enable or disable the LED lighting on the panel, which is configured in the iCSmartViewRecipient;
Led Color: allows to change a color of the LED lighting on the panel, which is configured in the iCSmartViewRecipient.

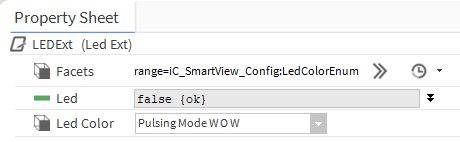

The LEDExt slots
The LEDExt extension has the following actions:
Note
These actions can be invoked manually from the context menu or automatically on the change of value of the extension’s slots (Led for either Write Led Off or Write Led On actions, and Led Color for the Write Led Color action.
Force Write: sends requests to the panel configured in the parent iCSmartViewRecipient component using current values in slots;
Write Led Off: switches off the LED lighting on the panel configured in the parent iCSmartViewRecipient component;
Write Led On: switches on the LED lighting on the panel configured in the parent iCSmartViewRecipient component;
Write Led Color: allows to set and send the LED lighting color specification to the panel configured in the parent iCSmartViewRecipient component.

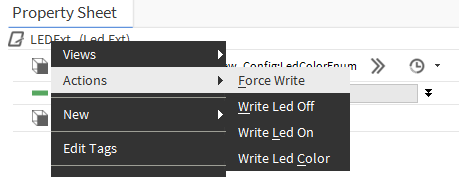

The LEDExt actions
