AAC20 - Simulator - Problem with starting

Cause

This article analyzes a problem with starting the AAC20 simulator and a way to resume it.

If the simulator won’t start, the window starts to blink. In this case, turn on the simulator using PowerShell by typing the following commands:

C:\iSMA\AAC20\iC_AAC20_Software_Bundle_6.2.0\iC_AAC20_Software_Bundle_6.2.0\Simulator> .\run.bat

C:\iSMA\AAC20\iC_AAC20_Software_Bundle_6.2.0\iC_AAC20_Software_Bundle_6.2.0\Simulator>svm --plat

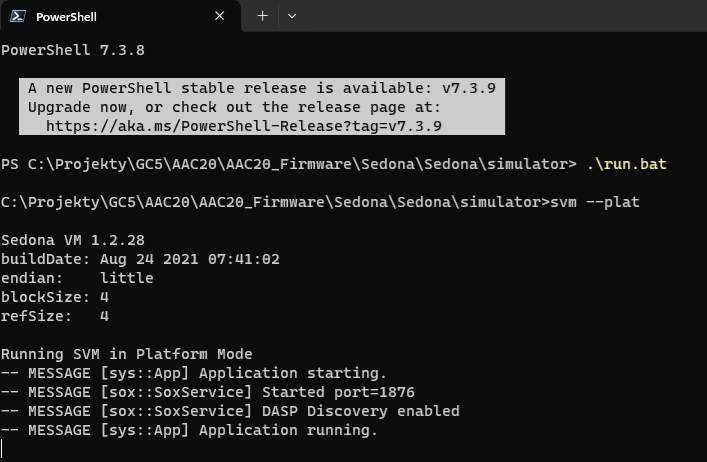

Figure 1. The simulator view in PowerShell

In this window, analyze the error code occurring after "Running SVM in Platform Mode".

Solution

The easiest way to solve the problem it is download the Software Bundle again and replacing the app.sab file to the default one in the folder where the simulator is located.
