Digital Inputs

The device is equipped with 4 digital inputs.

The I1 and I2 inputs are dedicated to control the light by connecting monostable or bistable switches.

The I3 and I4 inputs are used for double-switch connection in order to control blind/shutter (up and down movement).

The way of connecting signals is presented in the figure below.

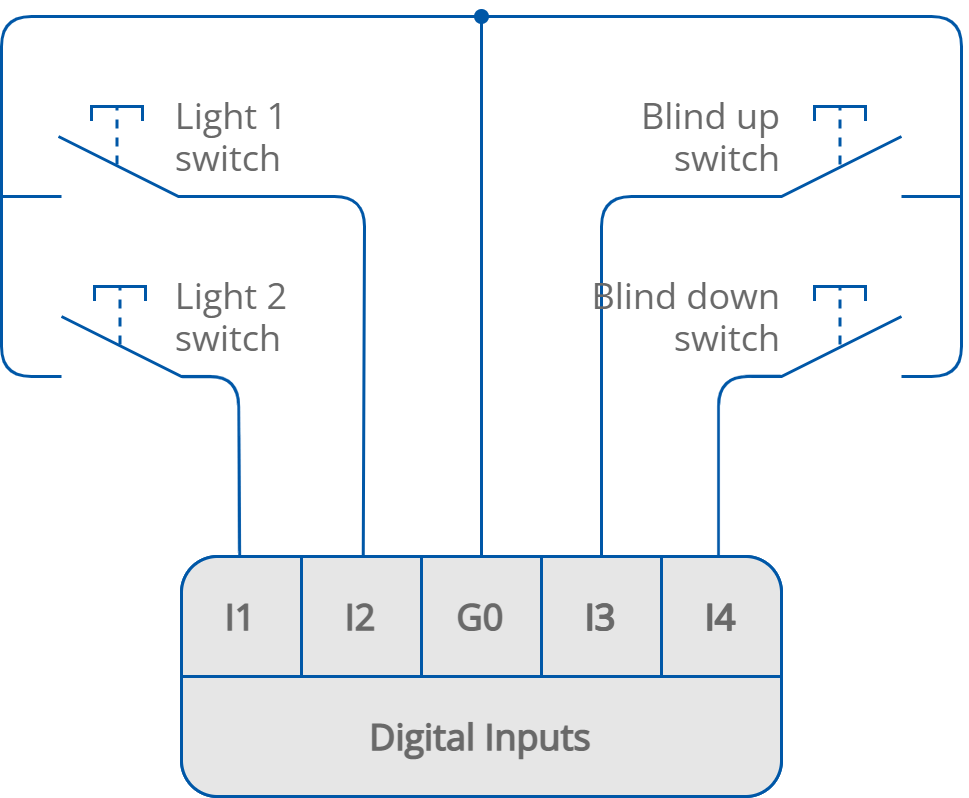

Digital inputs connection
