DI
The DI component allows to control the digital input in the controller.

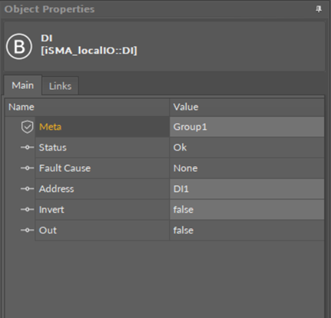

DI component
Slots
The DI component has the following slots:
Status: shows the component’s status;
Available information: OK (the component is working properly), Fault (the component is disabled);
Fault Cause: shows the reason of the Fault status;
Address: allows setting an address of a physical input of the device; once the component has been added to the folder, the slot's default value is 1—for the component to operate properly, the unique address value must be set in this slot.
Available settings: DI1-4.
Invert: a Boolean slot allowing to invert the value read from the digital input of the device;
Out: a real value read from the digital input of the device.
