DI

The DI is a component designed for reading the digital input (true or false). The DI has to be placed under the LocalIO component.

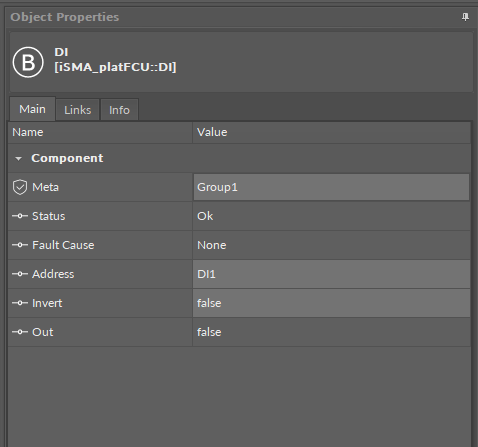

20 DI.png
The DI component

The DI component has the following slots:

  • Status: indicates the status of the DI component;

  • Fault Cause: shows the fault cause description;

  • Address: sets the number of the physical input of the iSMA-B-FCU device (DI1, DI2, DI3, DI4);

  • Invert: shows the value negative to the value read from the digital output of the iSMA-B-FCU device;

  • Out: displays the actual value of the input (true or false).
