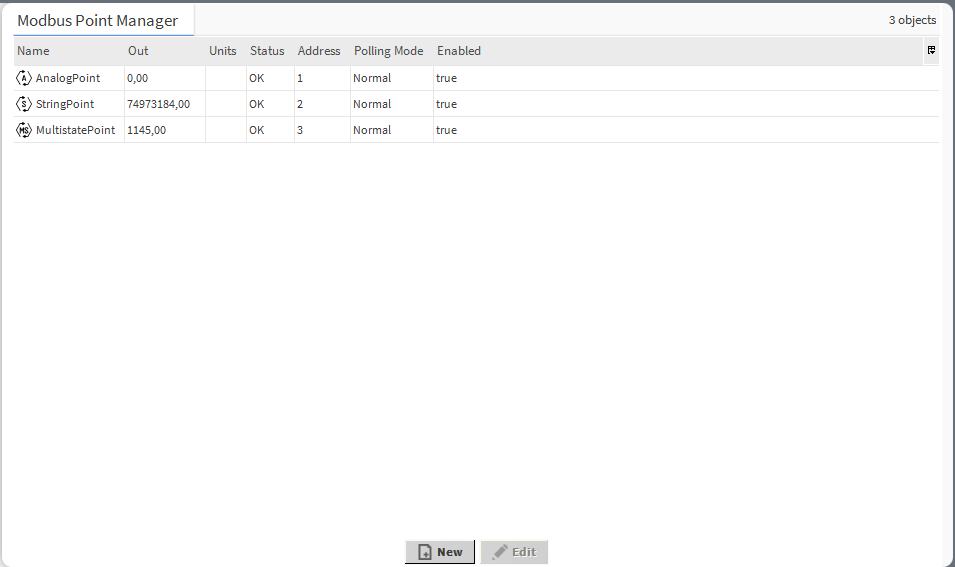

The Modbus Point Manager view is available for each device added to the Modbus network. It lists all Modbus points added to the Device component, and shows their Out slot value, status, object name and ID, polling mode, and enabled or disabled state.
In the Modbus Point Manager, it is possible to:
-

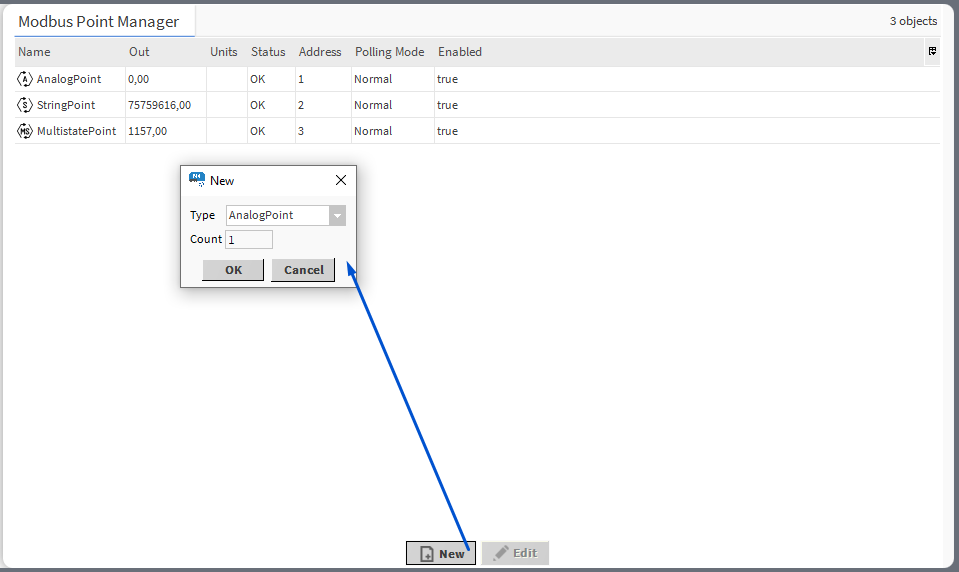

add Modbus points:
-

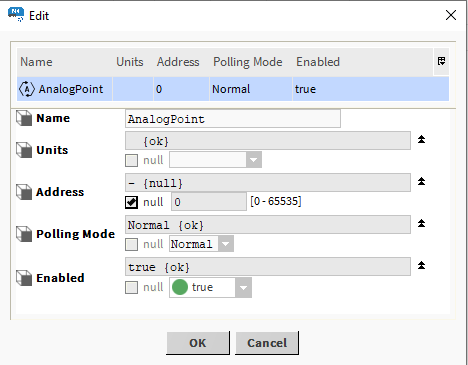

edit the Modbus point’s name, units, address and enable/disable the component:
Note
Editing is possible for more than one point at a time. If multiple points are edited, the same new value is written to common slots, so individual slots, such as Name, cannot be edited in this manner.
-

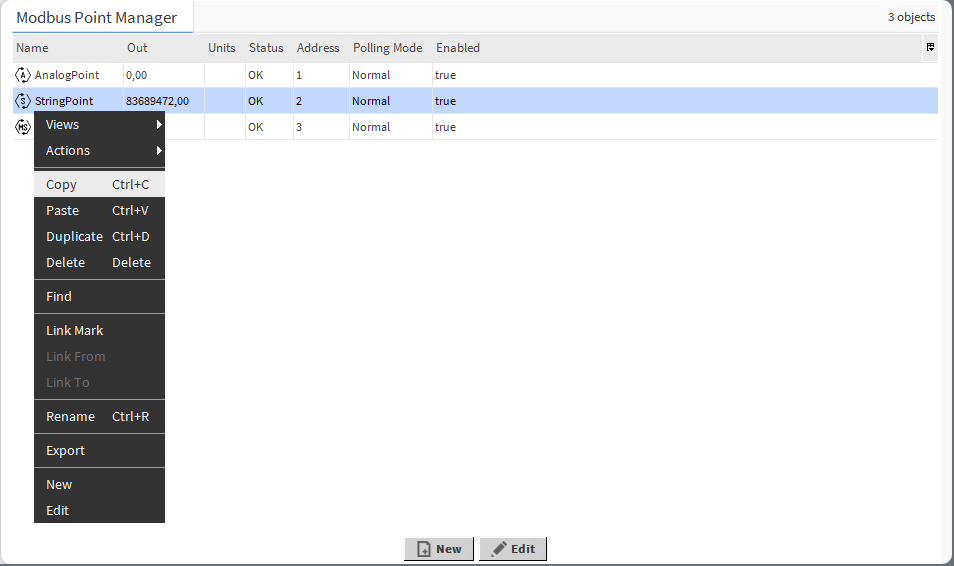

copy/duplicate/remove Modbus points:
Opening the Modbus Point Manager

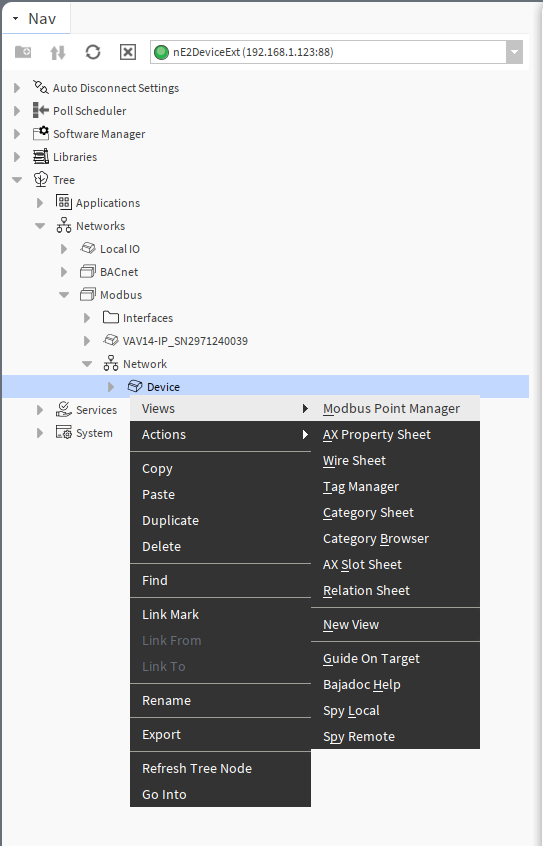

The Modbus Point Manager view is accessible from the context menu of the Device component. It is also automatically opened if the Device component is double-clicked in the nav tree window.
