PA-LED User Manual

Introduction

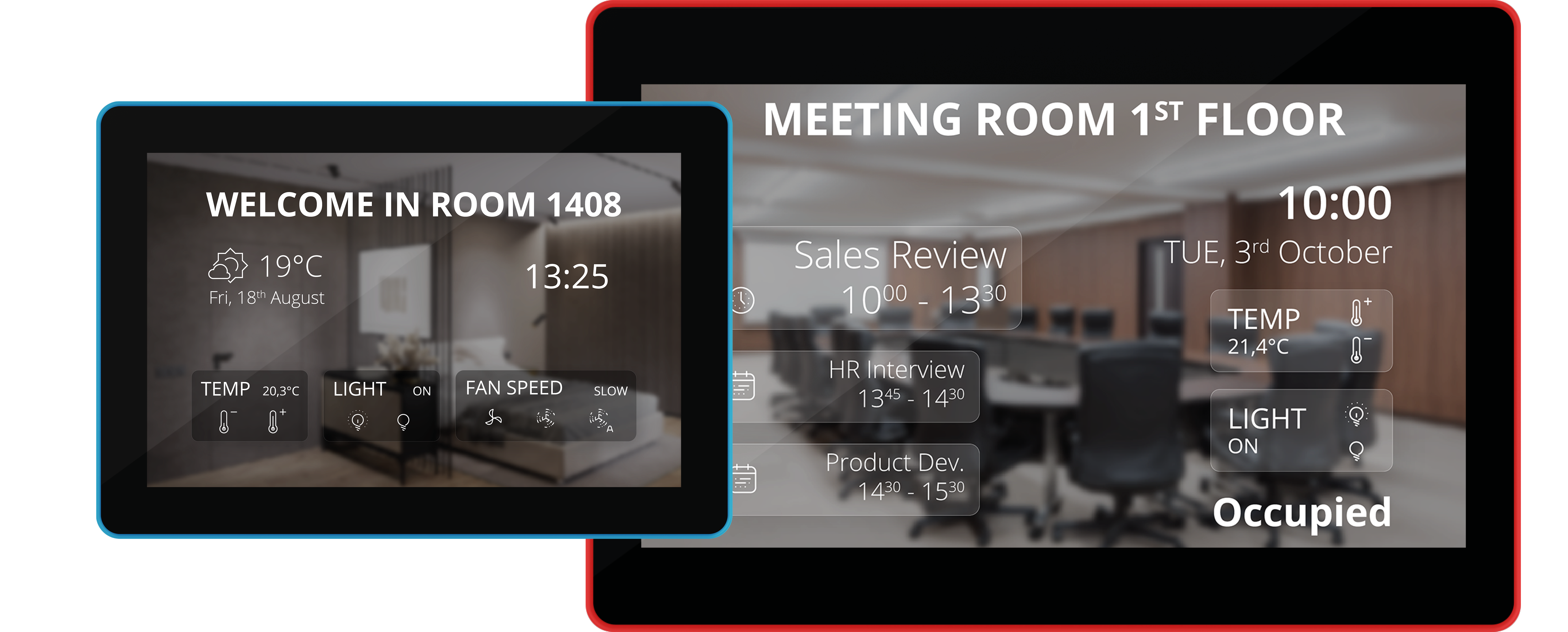

The PA-LED family are LCD room panels with LED bars, designed for commercial applications. Powered by the Android operating system and equipped with the dedicated iC SmartView application, these panels offer excellent operation in a variety of environments

Available in a variety of size options, these LCD room panels with LED bars are versatile and customizable solutions for a wide range of settings in residential and commercial buildings. Their sleek and modern design, complemented with a metal wire slot for a clean and organized installation, ensures they seamlessly blend into any environment.

These panels come with a built-in multicolor LED bar that can be customized to suit specific needs and integrated into applications for enhanced functionality. With a 10-point capacitive touchscreen, they provide an exceptional viewing experience. Whether there is a need for a room management device for hotels, conference rooms, or a dynamic display in lobbies, these panels are up to the task.

In addition to their stunning design and capabilities, the panels offer advanced features, including Power over Ethernet (POE) for convenient power supply, and the iC SmartView app for kiosk mode and remote control. The multitude of interfaces and built-in features make these panels a versatile solution for a wide range of applications.

PA-LED panels

Revision History

Cybersecurity Compliance Note for EN 18031-1 and EN 18031-2

The HMI Android Panels are designed and evaluated in accordance with the principles and protection objectives defined in EN 18031-1 and EN 18031-2, addressing cybersecurity, network security, and privacy protection for connected control equipment used in building management system (BMS) environments.

The BMS environment refers to a dedicated, isolated network intended for building automation and control equipment. It is separated from public or enterprise IT networks and accessible only to authorized personnel, such as system admins, network administrators, or BMS operators. This environment includes both physical and logical access controls (e.g., VLAN segmentation, user and role-based access control) to ensure that only qualified and authorized entities can interact with devices and data within the system.

When deployed within the assumed operational environment as defined in EN 18031-1, the device supports the secure management and protection of network, security, and privacy assets in accordance with the requirements of EN 18031-1 and EN 18031-2.

Specifically:

• Controlled Accessibility
  Access to security-, network-, and privacy-related assets is limited to authorized entities through physical and logical protections implemented in the BMS operational environment.

• Secure Storage and Handling
  Security, network, and privacy assets stored on the device are safeguarded to prevent unauthorized access or modification, ensuring integrity and confidentiality as required by EN 18031-1 and EN 18031-2.

• Protected Communication
  Any communication involving security, network, or privacy assets is protected by physical or logical measures within the target environment. These protections prevent exposure of sensitive assets to unauthorized entities during data transfer.

The device’s public network accessibility, where applicable, is part of its intended functionality and does not compromise the protection requirements defined by EN 18031-1 and EN 18031-2 when deployed in a properly secured BMS infrastructure.
