Setting Output Mode

To change the output mode from current to voltage, it is required to set appropriate values of Modbus registers (40069-40076) and change the position of a jumper inside the module, according to the following picture.

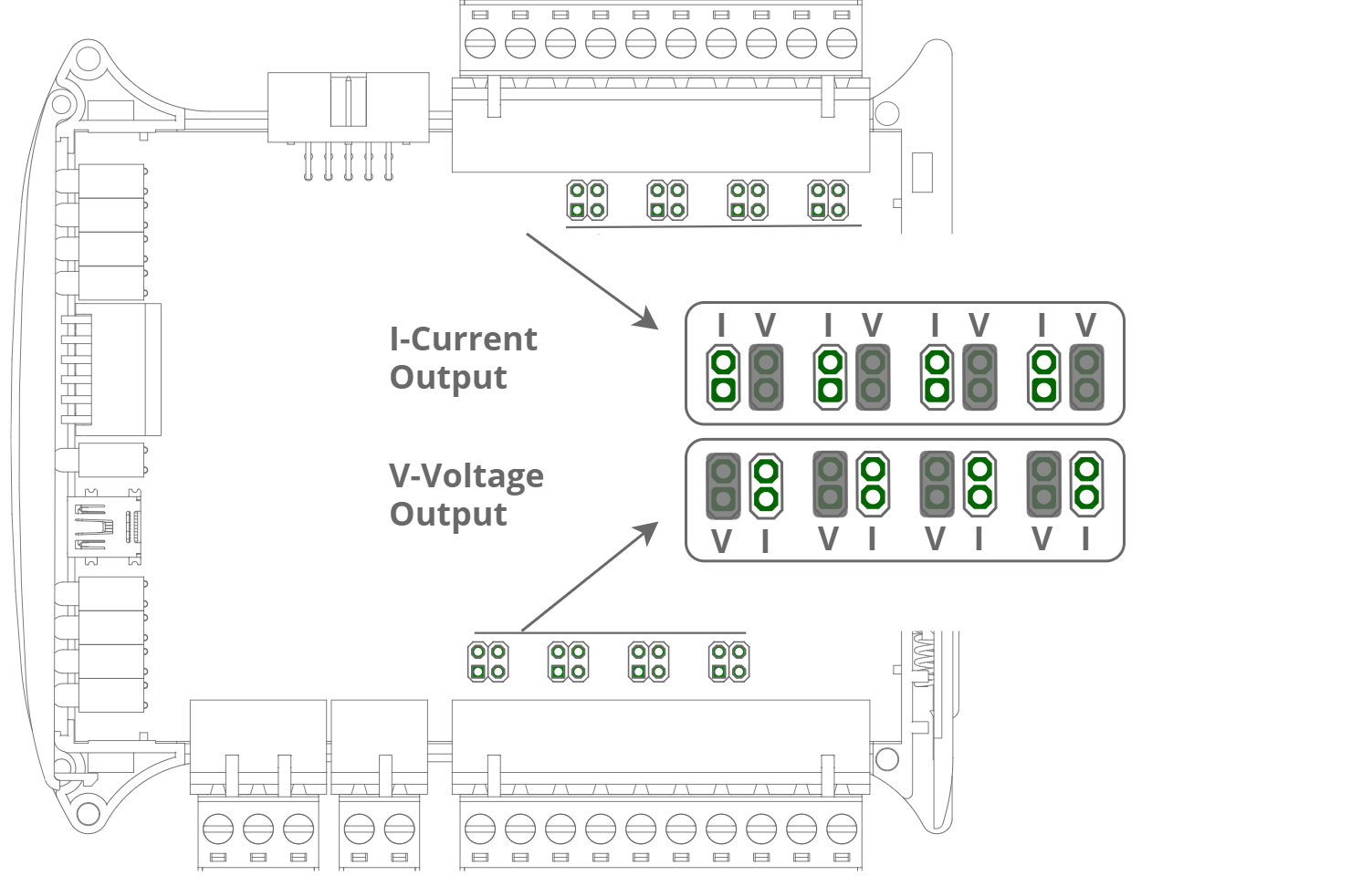

Jumper setting

Opening the Case

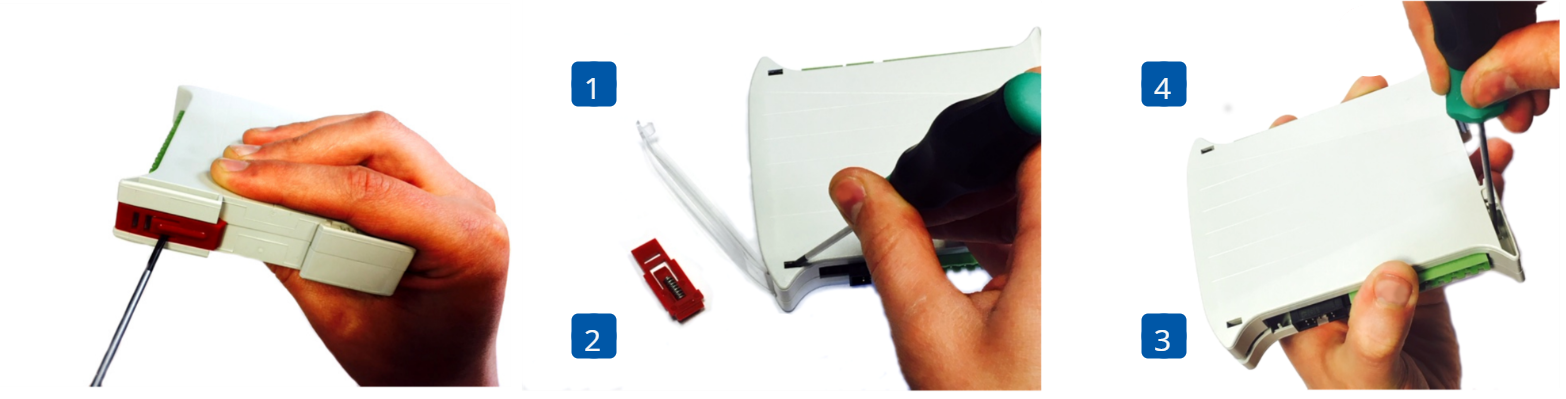

Opening the case
  • Remove the catch by pressing it and moving it towards the center of the case. Mind the spring located under the catch.

  • Separate parts of the case by gently tilting catches located as shown in the picture using a thin tool.
