Palette Structure

The iSMA_CONTROLLI_Library palette is structured into folders by functionalities, and each main folder has subfolders categorized by solutions to facilitate identification of a required device. The main folders of the palette are the following:

  • ModbusAsync: contains device components and pre-configured network points for iC devices working in the Modbus Acync network;

  • ModbusTCPGateway: contains device components and pre-configured network points for iC devices working as the Modbus TCP gateway;

  • ModbusTCP: contains device components and pre-configured network points for iC devices working in the Modbus TCP network;

  • Components: contains components including all digital inputs/outputs (or inputs/outputs working in the digital mode) for the available devices;

  • BACnetNetwork: contains device components and pre-configured network points for iC devices working in the BACnet network.

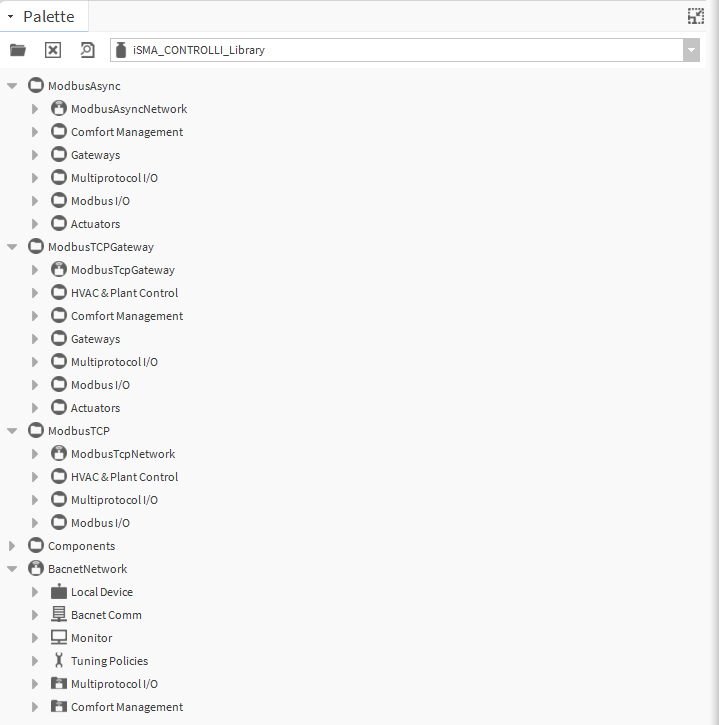

iSMA_CONTROLLI_Library palette

Modbus Devices

Components and points for the Modbus protocol are available for the following devices:

  • iSMA-B-AAC20 (iSMA solution: HVAC & Plant Control)

  • iSMA-B-2D (Comfort Management)

  • iSMA-B-2D1B (Comfort Management)

  • iSMA-B-FCU (Comfort Management)

  • iSMA-B-LP (Comfort Management)

  • Touch Point (Comfort Management)

  • Control Point (Comfort Management)

  • iSMA-B-MG-IP (Gateways)

  • iSMA-B-W0202 (Gateways)

  • iSMA-B-8I (Multiprotocol I/O Modules)

  • iSMA-B-8U (Multiprotocol I/O Modules)

  • iSMA-B-4I4O-H (Multiprotocol I/O Modules)

  • iSMA-B-4U4O-H (Multiprotocol I/O Modules)

  • iSMA-B-4U4A-H (Multiprotocol I/O Modules)

  • iSMA-B-4O-H (Multiprotocol I/O Modules)

  • iSMA-B-4TO-H (Multiprotocol I/O Modules)

  • iSMA-B-MIX18 (Multiprotocol I/O Modules)

  • iSMA-B-MIX38 (Multiprotocol I/O Modules)

  • iSMA-B-12O-H (Multiprotocol I/O Modules)

  • iSMA-B-24I (Multiprotocol I/O Modules)

  • SfAR-1M-1AI1DO (Modbus I/O Modules)

  • SfAR-1M-1TI1DO (Modbus I/O Modules)

  • SfAR-1M-2DI1AO (Modbus I/O Modules)

  • SfAR-1M-2DI2DO (Modbus I/O Modules)

  • SfAR-1M-4DI (Modbus I/O Modules)

  • SfAR-1M-4DI-M (Modbus I/O Modules)

  • SfAR-1M-4DO (Modbus I/O Modules)

  • SfAR-S-6RO (Modbus I/O Modules)

  • SfAR-S-6TI (Modbus I/O Modules)

  • SfAR-S-8AI2DO (Modbus I/O Modules)

  • SfAR-S-8AO (Modbus I/O Modules)

  • SfAR-S-8DI8DO (Modbus I/O Modules)

  • SfAR-S-8DI8RO (Modbus I/O Modules)

  • SfAR-S-8TO (Modbus I/O Modules)

  • SfAR-S-16D (Modbus I/O Modules)

  • SfAR-S-16DI-M (Modbus I/O Modules)

  • SfAR-S-16DO (Modbus I/O Modules)

  • SfAR-S-16RO (Modbus I/O Modules)

  • SfAR-S-ETH (Modbus I/O Modules)

  • EBV (Actuators)

  • MVC503R-MB (Actuators)

  • MVE-2-RS (Actuators)

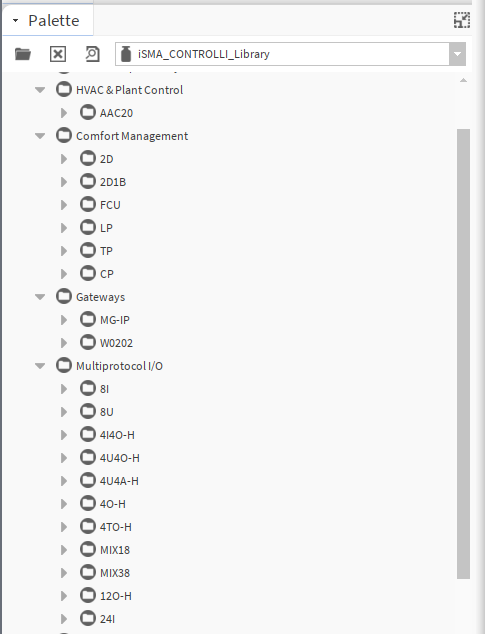

Devices available in the Modbus protocol

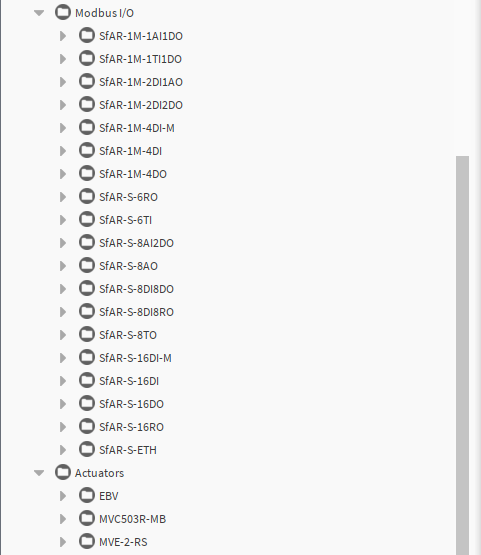

Devices available in the Modbus protocol

BACnet Devices

Components and points for the BACnet protocol are available for the following devices:

  • VAV14-IP (Comfort Management)

  • iSMA-B-8I (iSMA solution: Multiprotocol I/O Modules)

  • iSMA-B-8U (Multiprotocol I/O Modules)

  • iSMA-B-4I4O-H (Multiprotocol I/O Modules)

  • iSMA-B-4U4O-H (Multiprotocol I/O Modules)

  • iSMA-B-4U4A-H (Multiprotocol I/O Modules)

  • iSMA-B-4O-H (Multiprotocol I/O Modules)

  • iSMA-B-4TO-H (Multiprotocol I/O Modules)

  • iSMA-B-MIX18 (Multiprotocol I/O Modules)

  • iSMA-B-MIX38 (Multiprotocol I/O Modules)

  • iSMA-B-12O-H (Multiprotocol I/O Modules)

  • iSMA-B-24I (Multiprotocol I/O Modules)

  • iSMA-B-FCU (Comfort Management)

  • iSMA-B-LP (Comfort Management)

  • Touch Point (Comfort Management)

  • Control Point (Comfort Management)

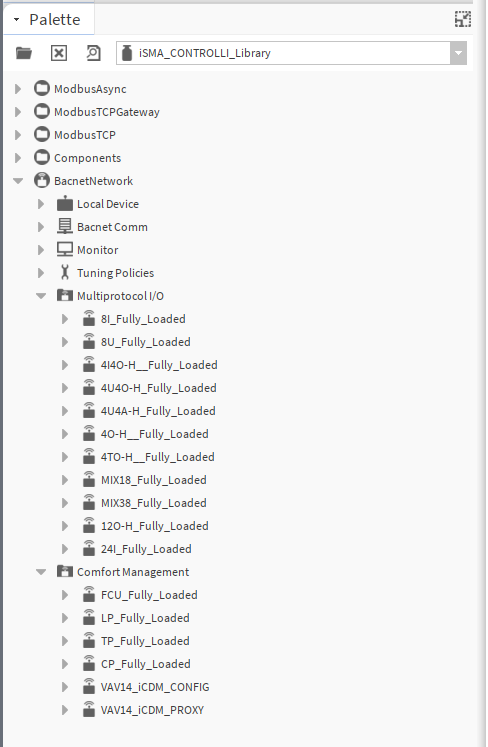

BACnet devices.png
Devices available in the BACnet protocol
