MultiLinear

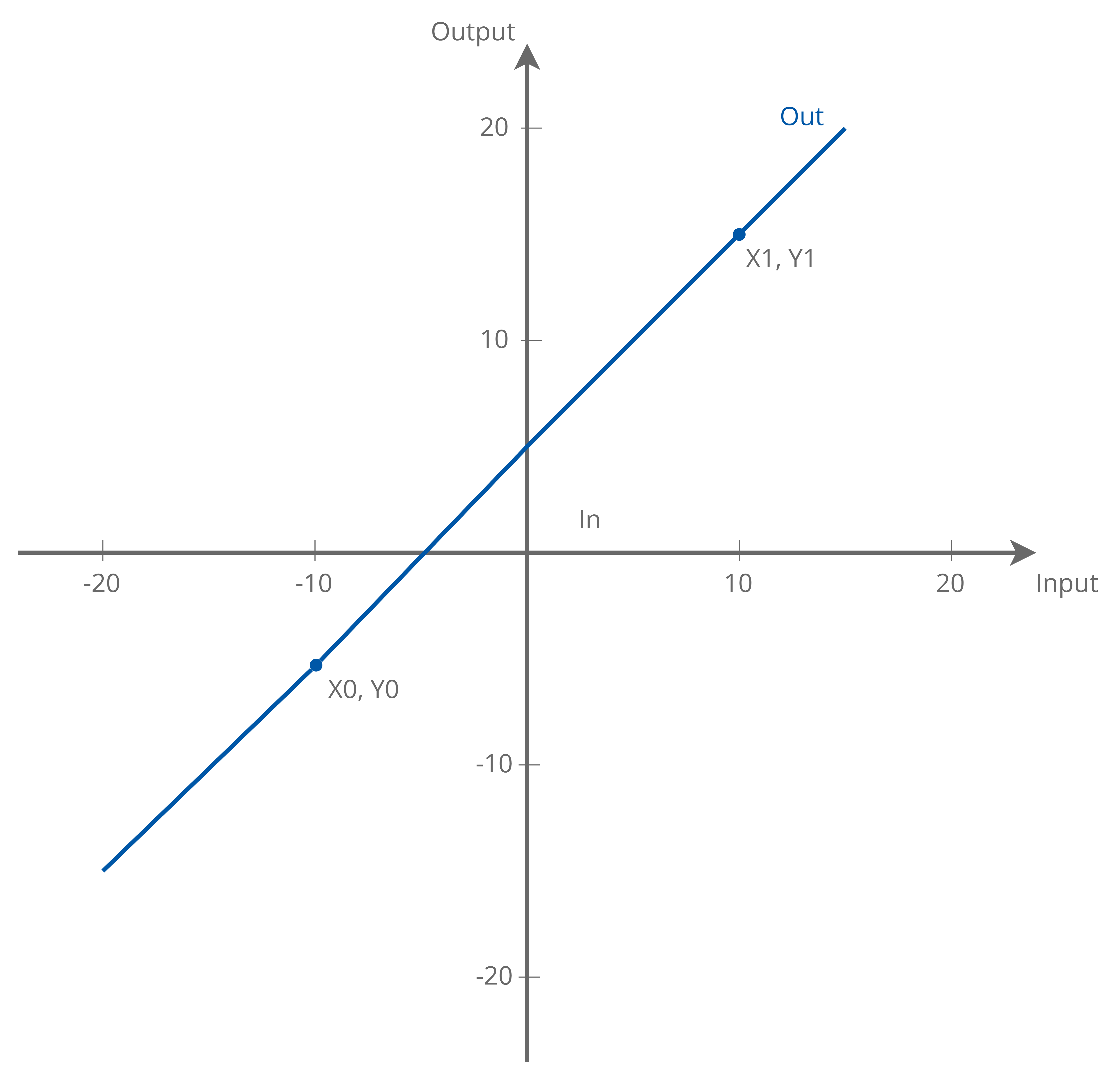

The MultiLinear component allows to scale the Out slot value depending on the set input values interval. With the MultiLinear component it is possible to scale the value to 5 separate outputs. The In slot value is compared with x intervals, and the component estimates the Out slot value based upon the linear function. The component has a Limit slot, which allows to limit the Out slot values to the interval between minimum and maximum y values.

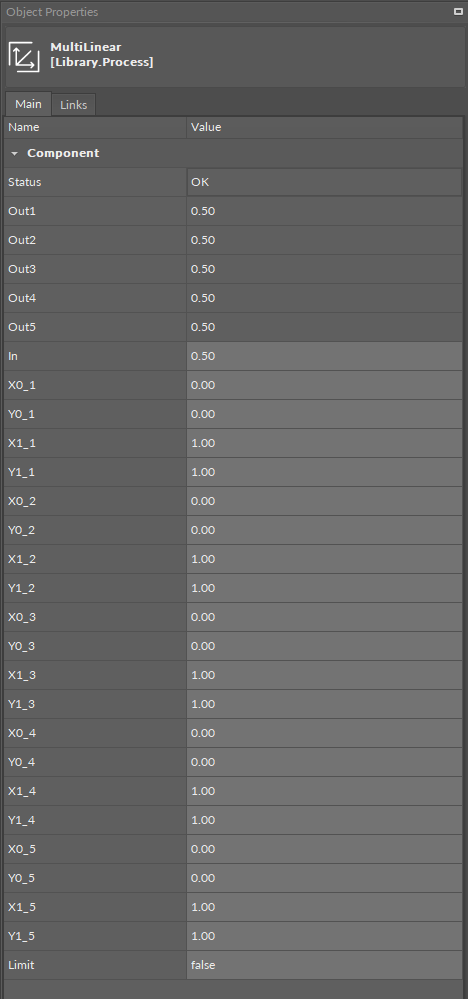

The MultiLinear component has the following slots:

• Status: indicates the current status of the component;

  • Available information: OK, fault;

• Out1-5: the output value estimated based on the linear function of the input value;

• In: the input value;

• X0-X1 (1-5): values representing the intervals for the input value;

• Y0-Y1 (1-5): values representing the internals for the output value;

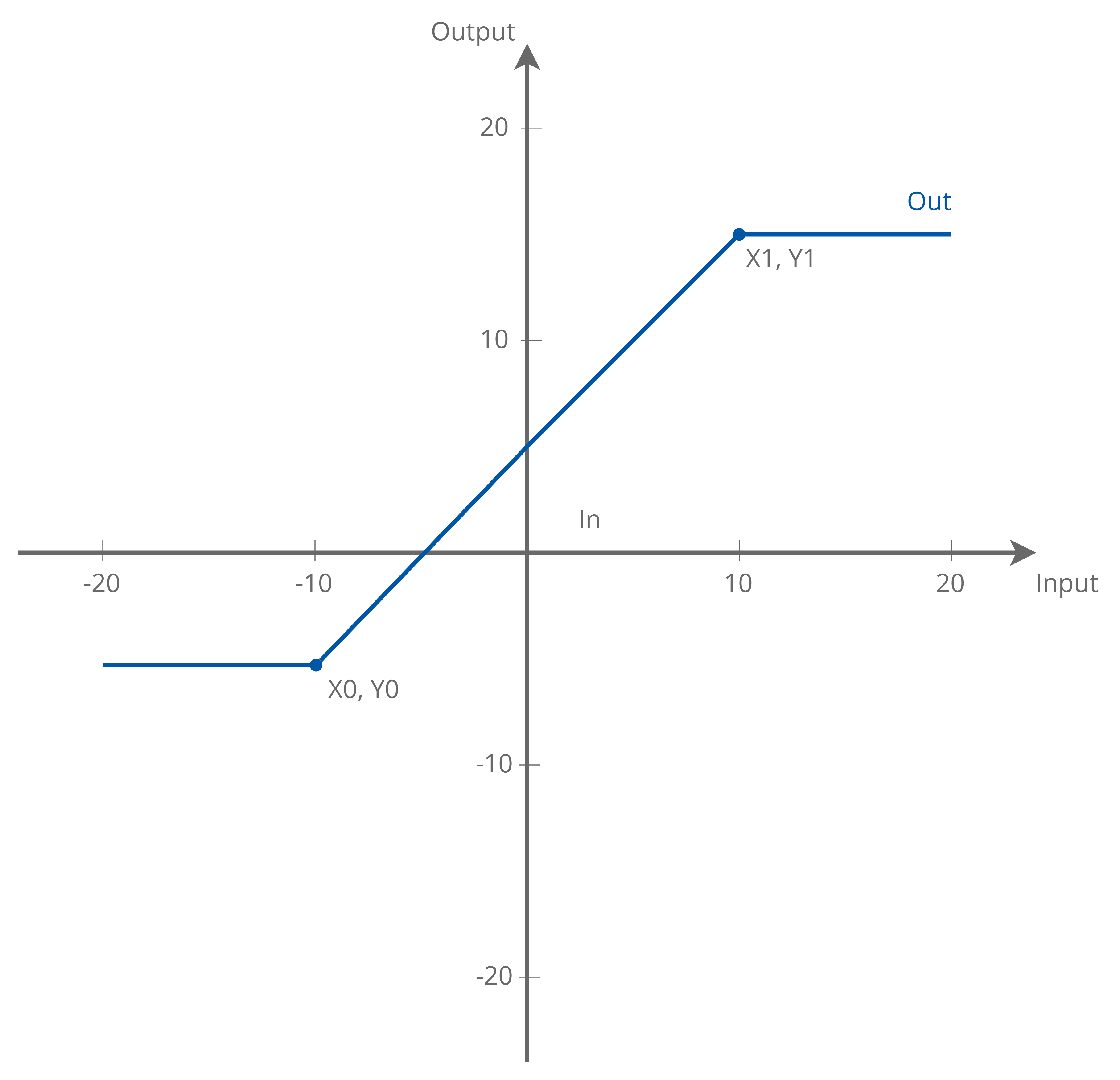

• Limit: allows to limit the Out slots value within y minimum and y maximum interval.
