And

Applicable to library's version 1.0

The And component performs a logical conjunction—the Out slot value is true if and only if all active input values are true; in case any of the In slots is false, the Out value is false.

The And component

Slots

The And component has the following slots:

  • Status: indicates the current status of the component (OK, Fault);
  • Out: the logical conjunction of values of the In slots;
  • InA-InN: 10 or 4 input slots (depending on the component's variant).

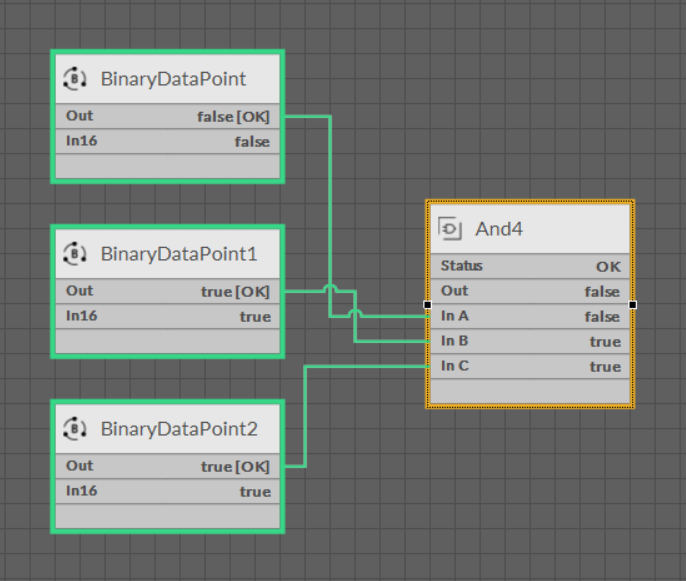

Note: By default, in the Wire Sheet the component shows four slots: Status, Out, 2 In slots.

Variants

The And component comes in two variants—with 10 or 4 In slots. The 4 slots variant uses less memory within application.

  • And10: component with 10 In slots;
  • And4: component with 4 In slots.
