AAC20 - Web - Application and kits download

This document describes how to download the application and kits from iSMA-B-AAC20 using a website.

1. Enter the device's IP address in the browser. The login page will appear. The default login is "platform" and the password is "1000".

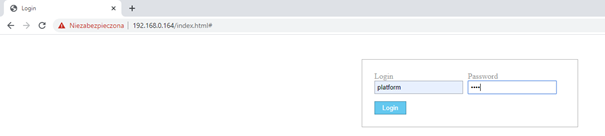

Picture 1. Logging page to iSMA-B-AAC20 controller.

2. After clicking the "Login" button, the user will be taken to the "Device" page of iSMA-B-AAC20 device. Go to the "Device Management" tab.

3. In “Device Management” under the “Sedona Virtual Machine” tab, there are options that should be used to download applications and kits from iSMA-B-AAC20 controller.

4. Clicking "Download Application Backup" will take the application from the device. The file will be saved as "app.sab". By selecting “Download Sedona Kits”, a package of kits used in the application will be downloaded. The file will be named "kits.code".

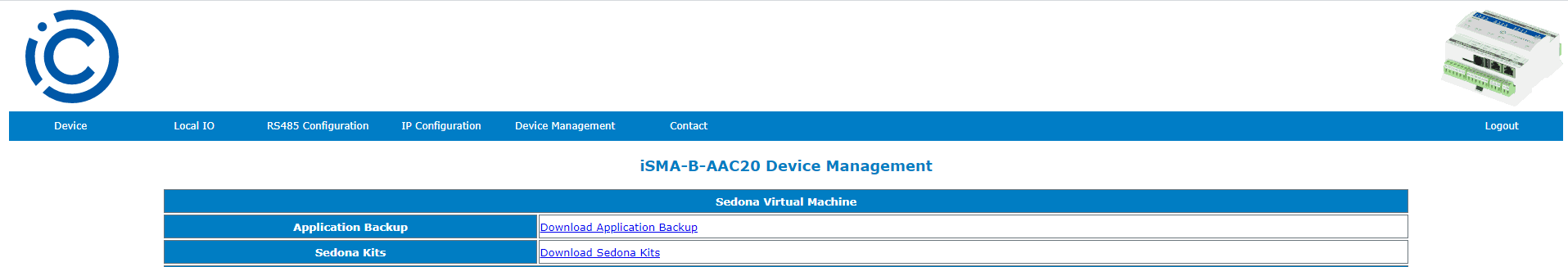

Picture 2. Tabs in “Device Management” for downloading backups from iSMA-B-AAC20.

5. You will need to use Sedona Updater to download these files to the controller. This process is described in this document.
