Purpose and Description of the Module

The SfAR-S-16DI module is an innovative device that provides a simple and cost-effective extension of the number of inputs in popular PLCs.

The module has 16 digital inputs with configurable timer/counter option. In addition, terminals IN1 and IN2, and IN3 and IN4 can be used to connect two encoders. All inputs and outputs are isolated from the power supply and RS485 port using optocouplers. Each channel can be individually configured in one of several modes.

This module is connected to the RS485 bus with a twisted-pair wire. Communication is via Modbus RTU or Modbus ASCII. The use of 32-bit ARM core processor provides fast processing and quick communication. The baud rate is configurable from 2400 to 115200.

The module is designed for mounting on a DIN rail in accordance with DIN EN 5002.

The module is equipped with a set of LEDs to indicate the status of inputs and outputs, power supply, and communication, which is useful for diagnostic purposes and helping to find errors.

Module configuration is done via USB by using a dedicated computer program. It also allows for changing the parameters using the Modbus protocol or set the Modbus address using the DIP switches under the front panel.

Technical Specification

Power Supply



Voltage

10-38 V DC; 10-28 V AC

Power consumption
(with active Modbus transmission and high state on all inputs)

2.4 W at 24 V DC

3 VA at 24 V AC

Digital Inputs







No. of inputs

16

Voltage range

0-36 V

Low state '0'

0-3 V

High state '1'

6-36 V

Input impedance

4 kΩ

Isolation

1500 Vrms

Input type

PNP or NPN

Counters




No. of counters

16

Resolution

32-bit

Frequency

1 kHz (max.)

Impulse width

500 μs (min.)

Temperature


Work

-10°C to +50°C (14°F to 122°F)

Storage

-40°C to +85°C (-40°F to 185°F)

Connectors




Power supply

2 pin

Communication

3 pin

Inputs

2 x 10 pin

Configuration

mini USB

Size



Height

119.1 mm (4.689 in)

Length

110.9 mm (4.366 in)

Width

22.7 mm (0.894 in)

Interface

RS485

Up to 128 devices

Technical specification

Dimensions

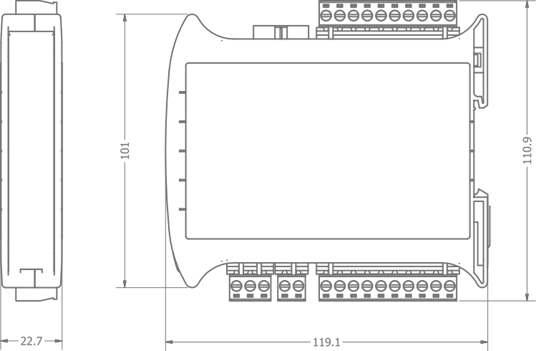

The appearance and dimensions of the module are shown below. The module is mounted directly to the rail in the DIN industry standard. Power connectors, communication, and I/Os are at the bottom and top of the module. USB connector configuration and indicators are located on the front of the module.

Dimensions
