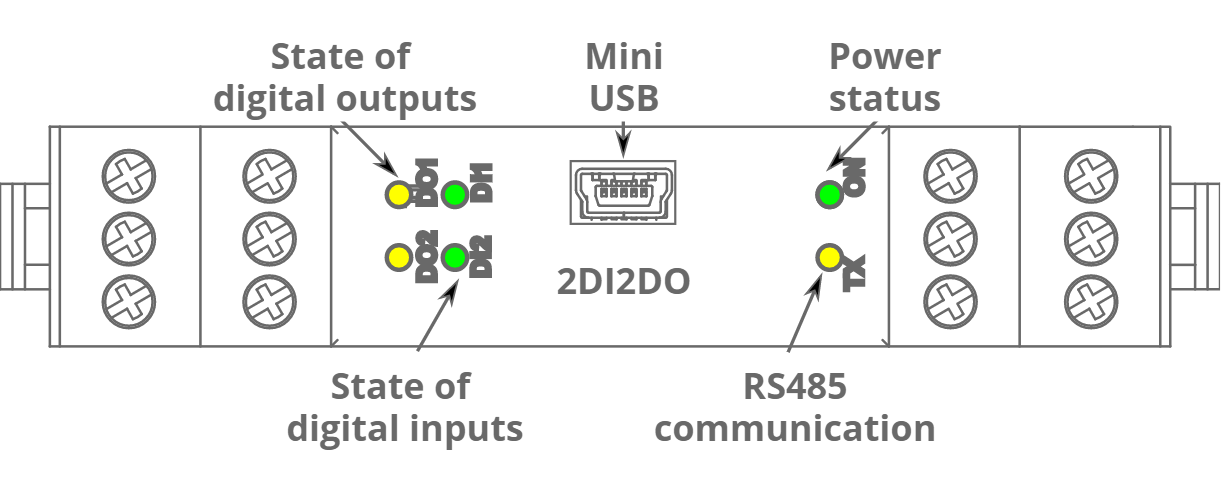

Indicators
|
Indicator |
Description |
|---|---|
|
ON |
The LED indicates that the module is correctly powered |
|
TX |
The LED lights up when the unit received the correct packet and sends the answer |
|
DI1, DI2 |
The LED indicates that on the input is high state |
|
DO1, DO2 |
The LED indicates that the output is on |
Description of indicators
