Inputs and Outputs

The iSMA-B-W0202 module is equipped with:

  • 2 special inputs;

  • 2 digital outputs.

Special Inputs

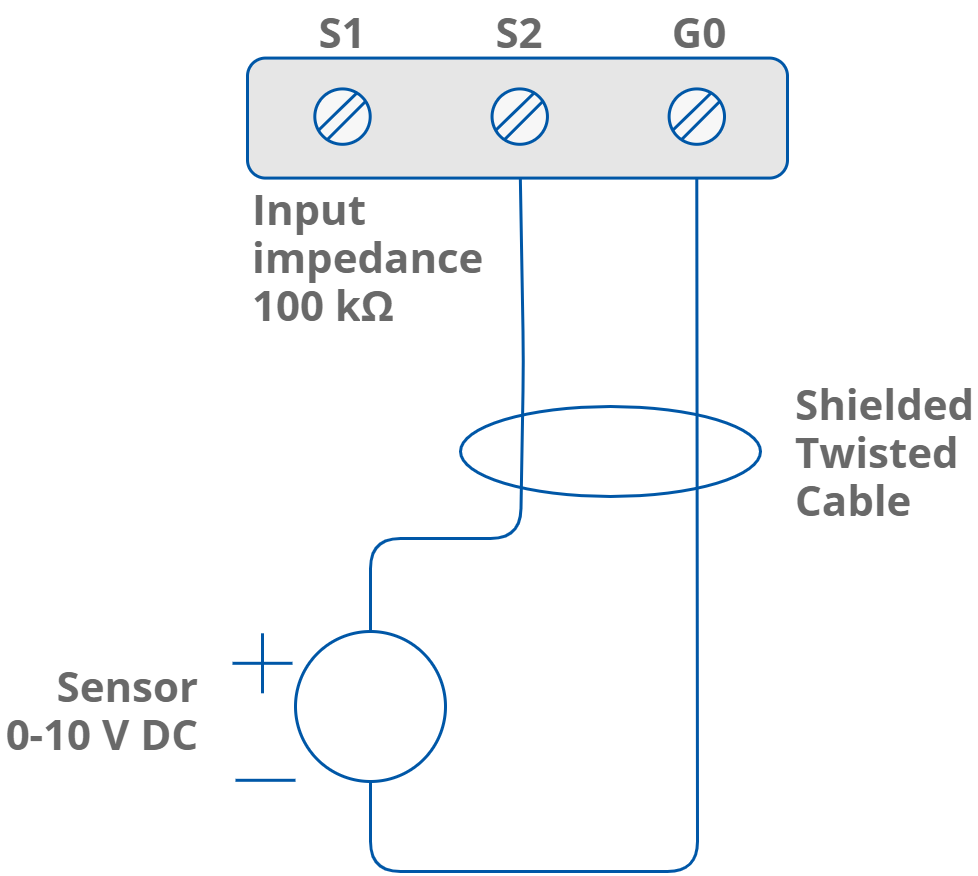

Voltage Measurement (0-10 V)

A special input voltage connection

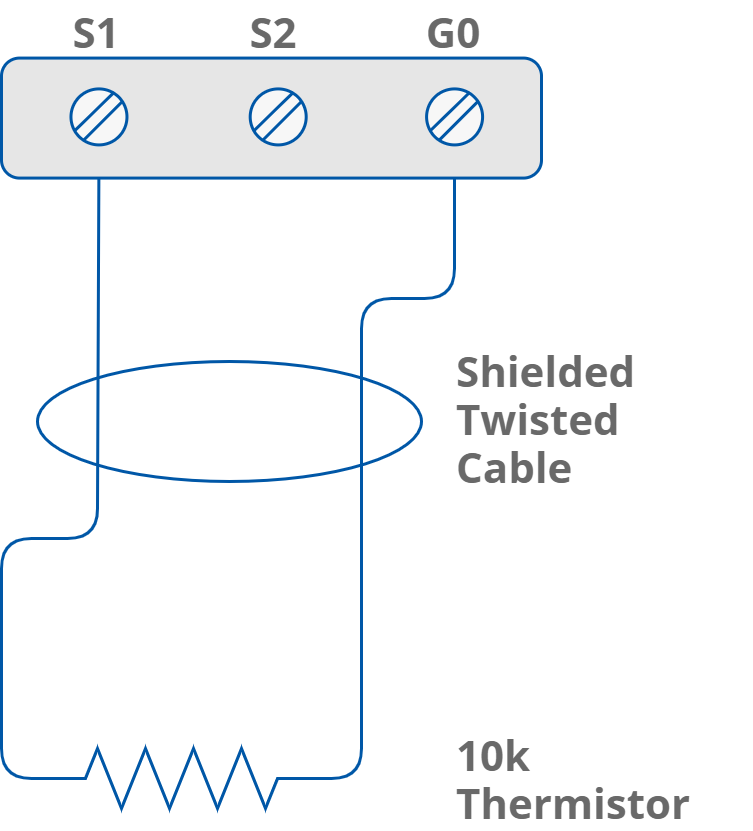

Temperature Measurement

A special input temperature connection

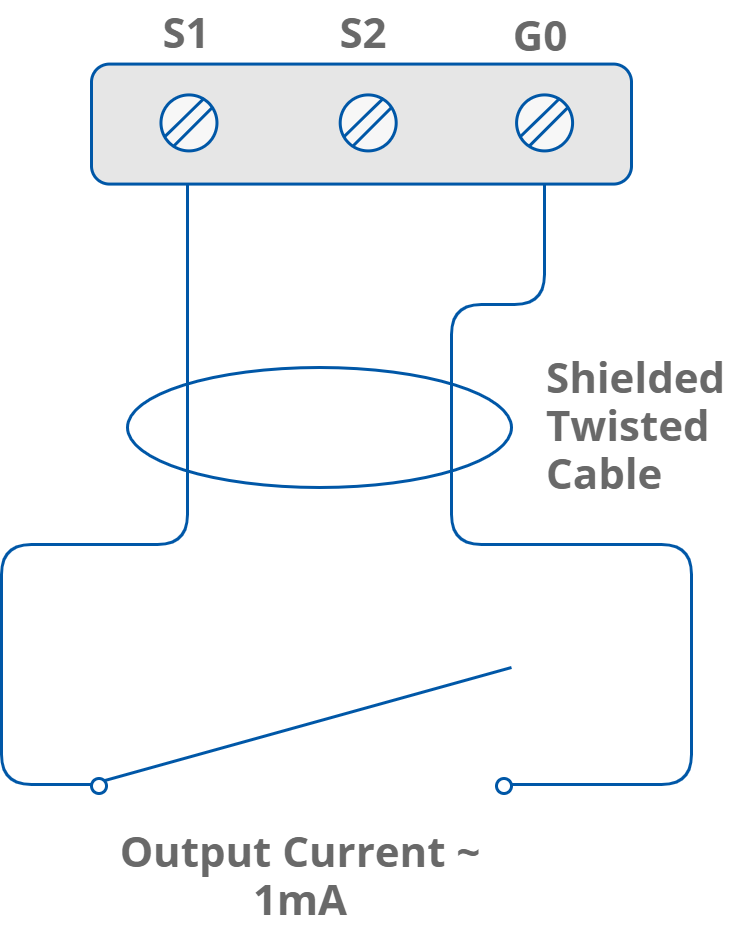

Dry Contact

A special input dry contact connection

Digital Outputs

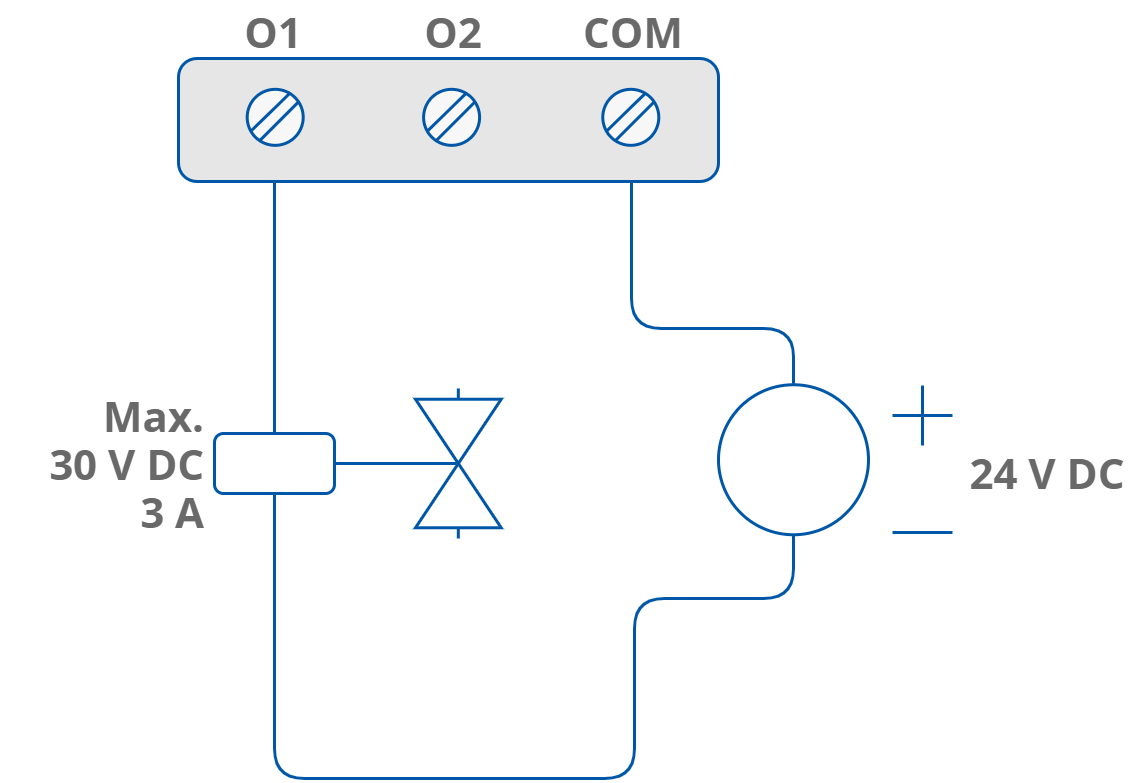

Solenoid Valve

A solenoid valve connection

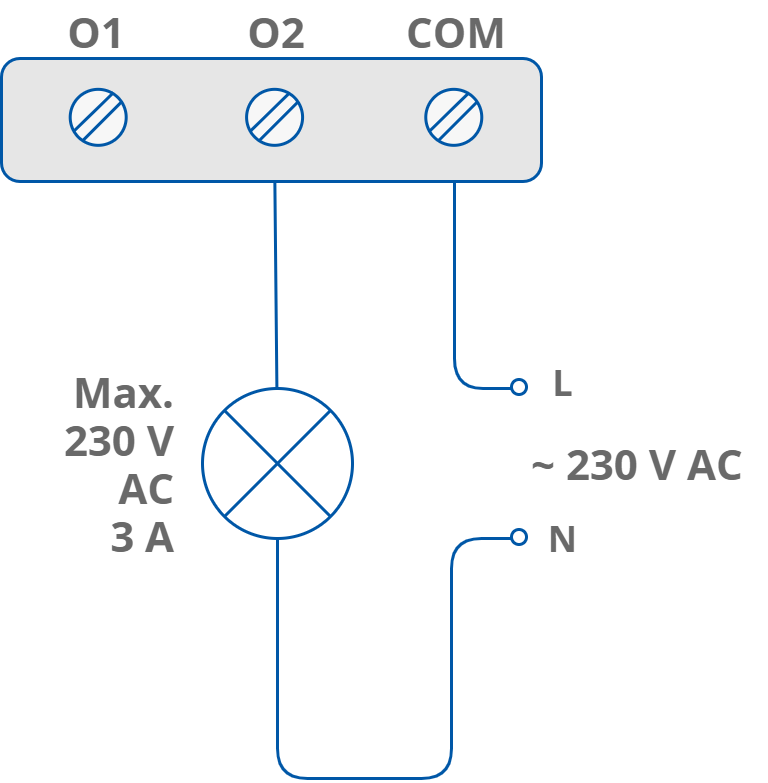

Resistive Load

A resistive load connection
