Configuration
SETPOINT_VISIBILITY (AV 56, Out Of Service Property)
The SETPOINT_VISIBILITY is an out-of-service property of the SETPOINT_VALUE object, which status activates or deactivates the setpoint value visibility. If the status is active, the setpoint value is visible in the main menu. The default status of this object is true (setpoint visible).
SETPOINT_EDITION (AV 56, Property 4200)
The SETPOINT_EDITION is a property number 4200 of the SETPOINT_VALUE object, which status determines the possibility to change the setpoint locally from the room panel. If the status is true, the setpoint is editable, and the user can change the setpoint value by pushing the arrow (up/down) buttons. If the status is false, pushing the arrow buttons sets the room panel in the active mode, and has no effect on the setpoint value. The default status of this object is true (setpoint editable).
OPERATING_MODE (BO 55)
The OPERATING_MODE is a Binary Output object number 55, which status determines the setpoint mode edition. If the status is true, the up and down arrow buttons change the value of the SETPOINT_VALUE object. If the status is false, pushing the up/down arrow buttons changes the value of the SETPOINT_OFFSET object. The default status of this object is true (changing the value of the SETPOINT_VALUE object).
SETPOINT_DISPLAY (BO 56)
The SETPOINT_DISPLAY is a Binary Output object number 56, which status only takes the effect if the OPERATING_MODE (BO 55) status is false (changing the value of the SETPOINT_OFFSET object). This object allows the user to choose, which value is displayed during the offset edition.
If the status is true, the EFFECTIVE_SETPOINT value and SETPOINT_NAME are shown on display during the offset changing.

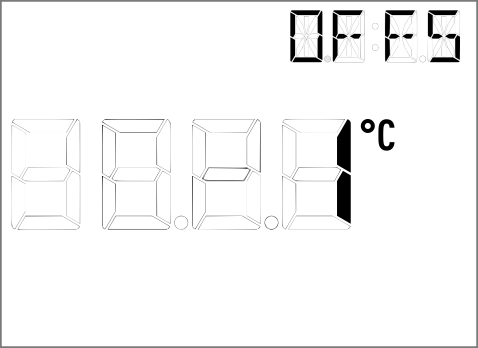

If the status is false, the LCD display shows the OFFSET_SETPOINT value and the OFFSET_NAME. By default, the bit is false.
THIRD_POINT_ACTIVE (AV 56, Property 4202)

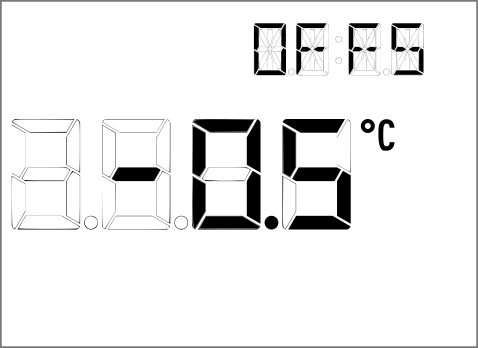

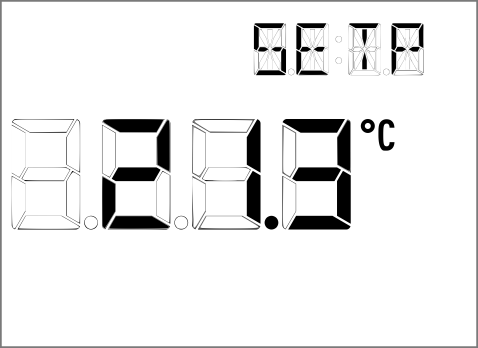

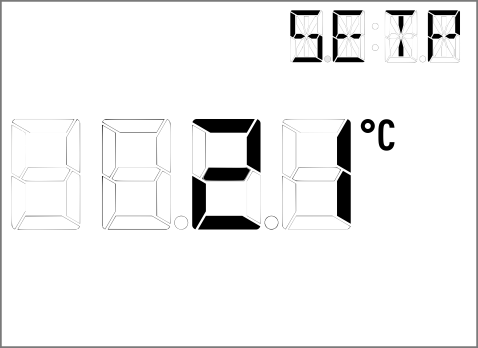

The THIRD_POINT_ACTIVE is a property number 4202 of the SETPOINT_VALUE object, which true status activates the setpoint displaying precision to the first decimal place. If the status is false, the setpoint is displayed as an integer value (without a decimal place). The default value is true.
SETPOINT_FAST_EDIT_MODE (BO 57)
The SETPOINT_FAST_EDIT_MODE is a Binary Output object number 57, which status switches between the setpoint normal edit and the setpoint fast edit modes. If the status is true, the setpoint is in the fast edit mode.
Setpoint Normal Edit mode
If the object’s status is false, the normal edit mode is active. The setpoint can be changed with the arrow buttons. The newly selected setpoint has to be confirmed pushing the OK button.
The new setpoint entering confirmation is signalled by a double blink of the new setpoint and a double beeper signal (if the BEEPER is enabled).
If the setpoint change is complete, the main menu is displayed.
Pushing the Menu button, before confirming the new setpoint with the OK button, cancels the new setpoint setting procedure, and the user gets back to the main menu.
If the new setpoint is not confirmed during the time value stored in the EXIT_EDIT_TIME object, the new setpoint setting is failed, and the main menu is displayed.
Setpoint Fast Edit mode
If the object’s status is true, the fast edit mode is active, and setting the new setpoint does not require any confirmation. The new setpoint is selected by pushing the OK button. Pushing any other button confirms the setpoint choice. The same happens if the time value in the EXIT_EDIT_TIME elapses–the newly selected setpoint is confirmed. The new setpoint entering confirmation is signalled by a double blink of the new setpoint name and a double beeper signal (if the BEEPER is enabled).
If the setpoint change is complete, the main menu is displayed.
By default, the object’ status is false (the normal edit mode).
