AAC20 - Inaccurate floating-point values

Issue

After changing an integer high-value variable to float, the float value is not equal to the initial integer value.

Solution

The issue can be solved in two ways:

Method 1

The example integer value is 72046070:

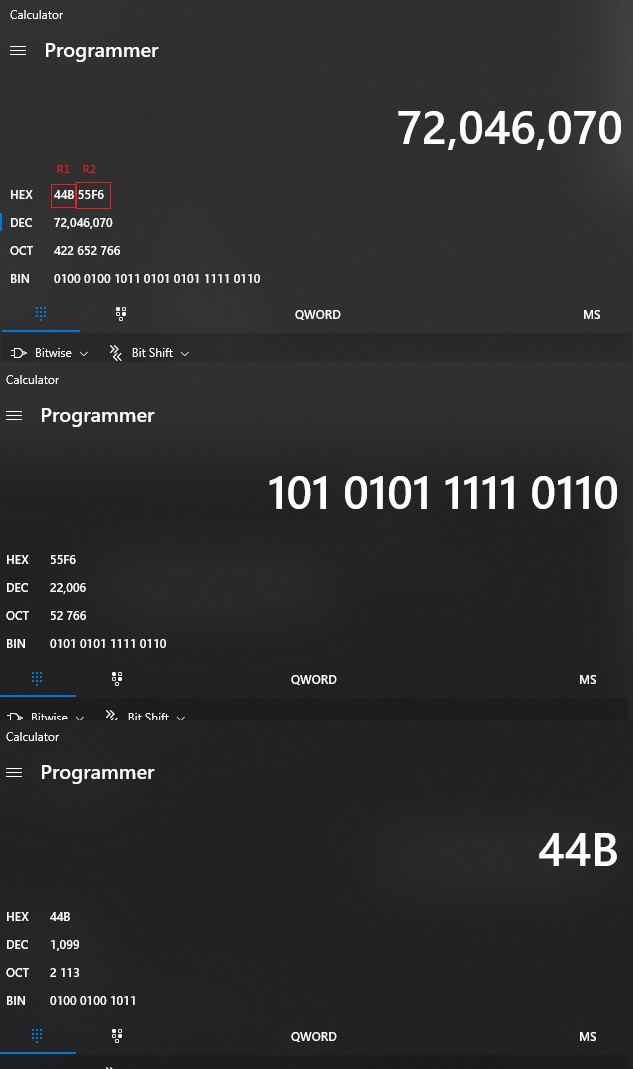

  • first, the variable has to be split into 2 16-bit registers, using, for example, a built-in calculator:

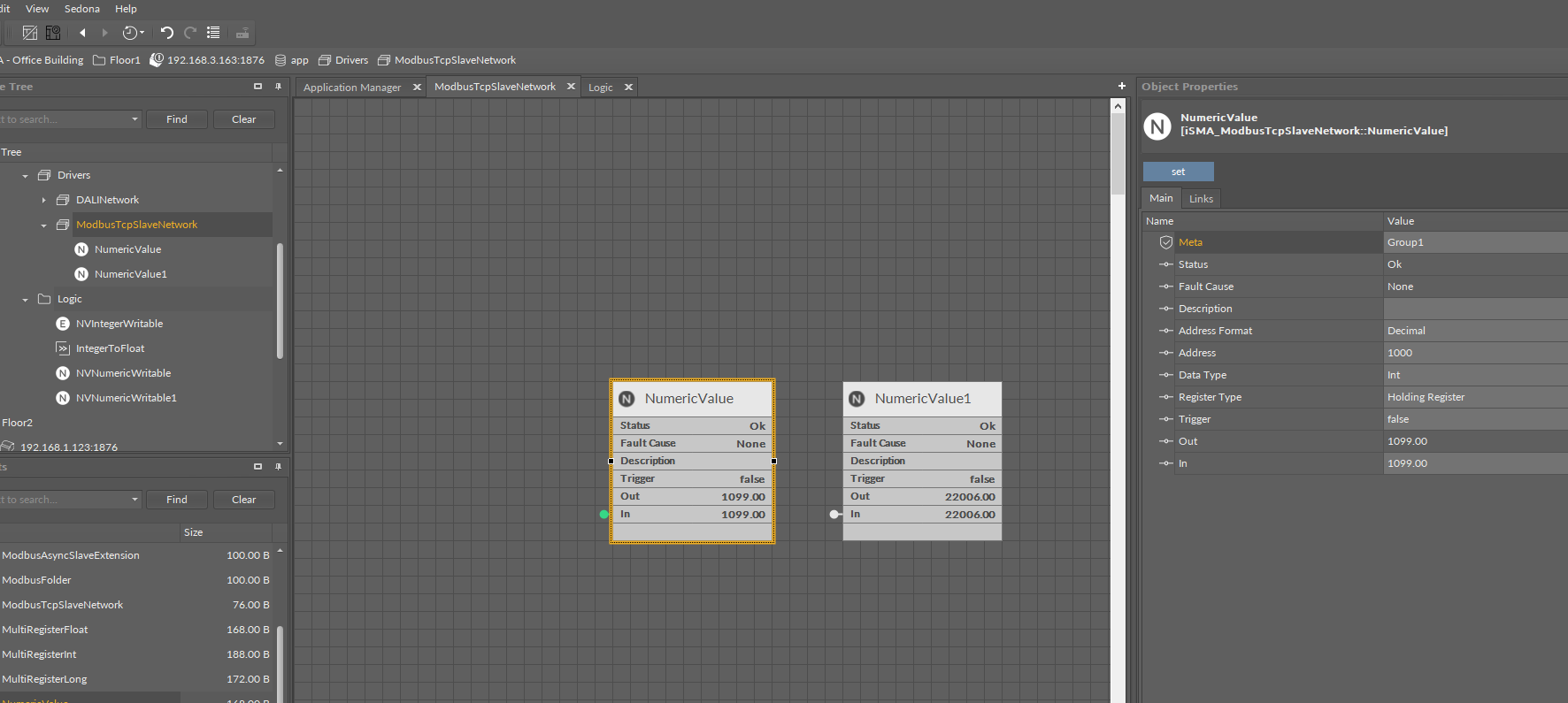

  • then, enter the decimal values from the calculator to the added components (Modbus points):

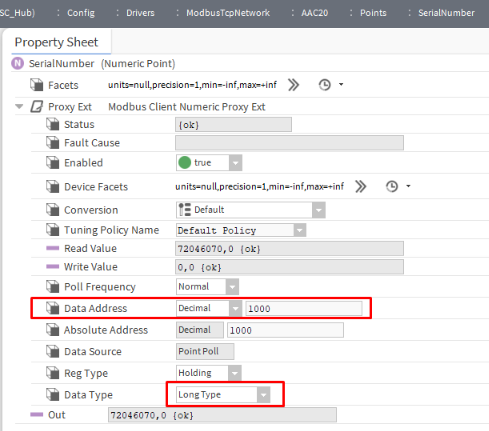

  • read added Modbus points in the higher-level system, for example, Niagara, as a LongType data type:


Method 2

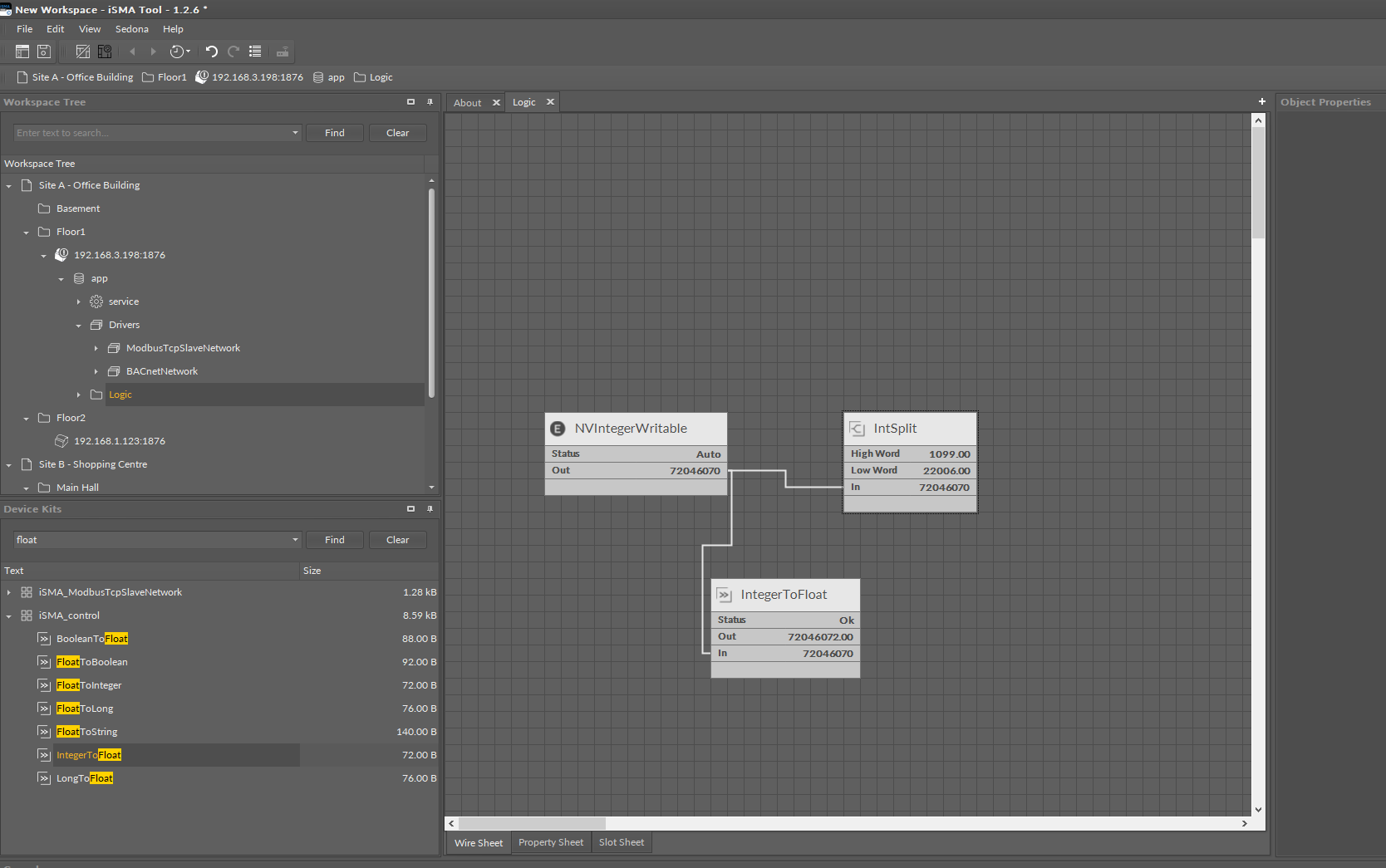

Use the IntSplit component (available from 6.4 firmware version):
