Step 2: Switching Between 1 Heating Stage and 2 Heating Stages Modes

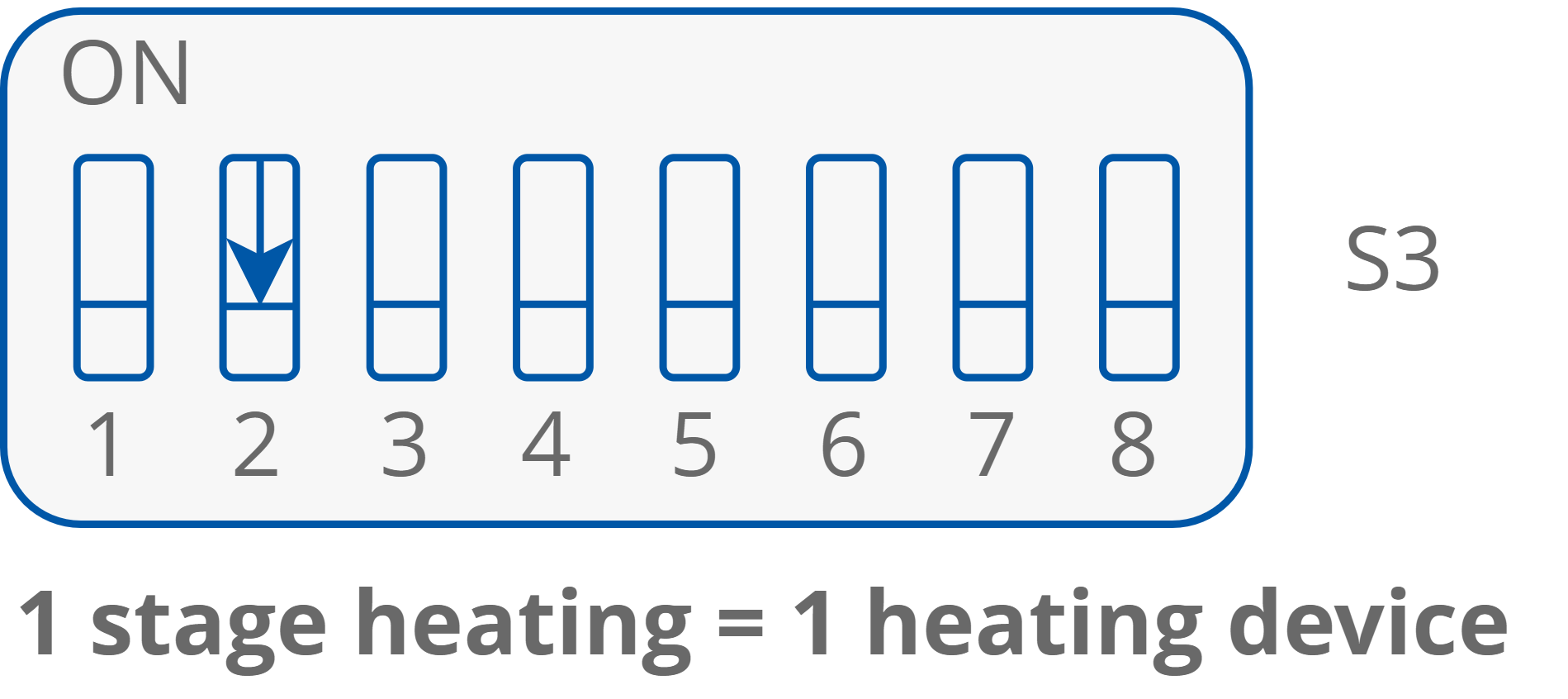

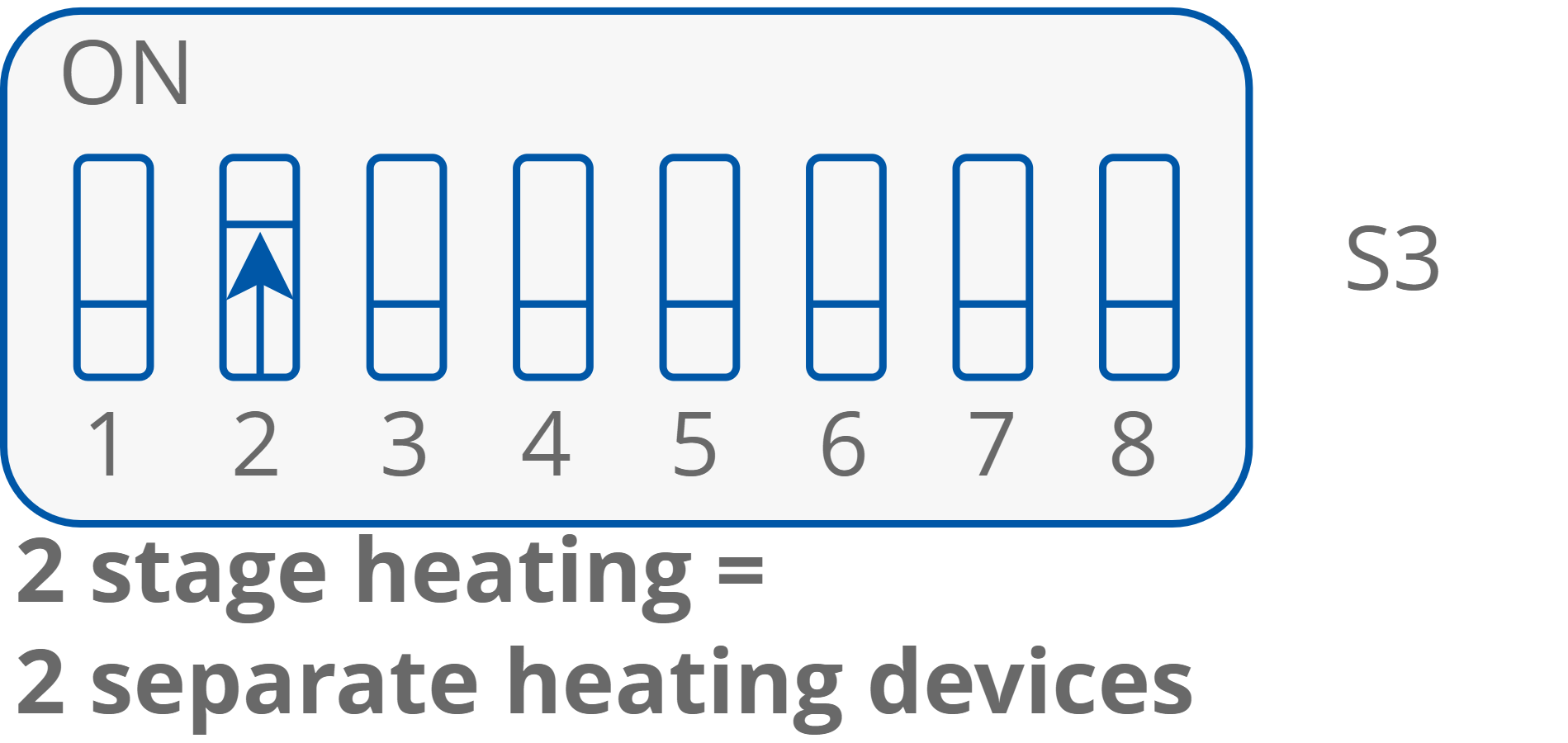

The fan coil unit can operate with one heating device or with two heating devices. It is configured with the 2^nd section of the S3 DIP switch.

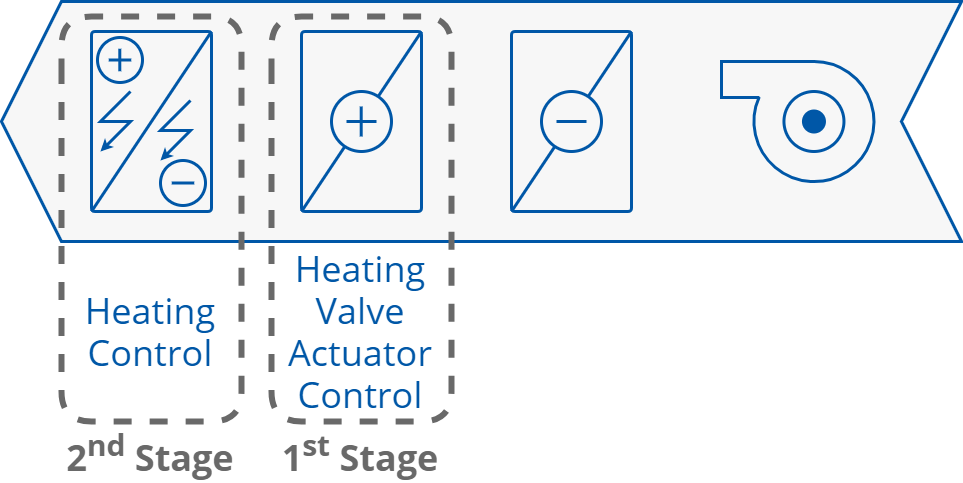

2 Stages of Heating in 4-Pipe Fan Coil Unit
