24 V DC Power Supply Output
The device is equipped with a 24 V DC output for providing power for motion sensors or presence detectors, which demand additional supply. The 24 V DC output is a part of the special inputs block, and it is dedicated specially for providing power for motion sensors / presence detectors connected to special inputs. The maximum load current of all the connected devices must not exceed 300 mA.
WARNING! The maximum load current for the light outputs, blind output, and 24 V DC power supply output is 8 A!
The 24 V DC power supply output allows for supplying devices with power without the need to use external DC power supply.

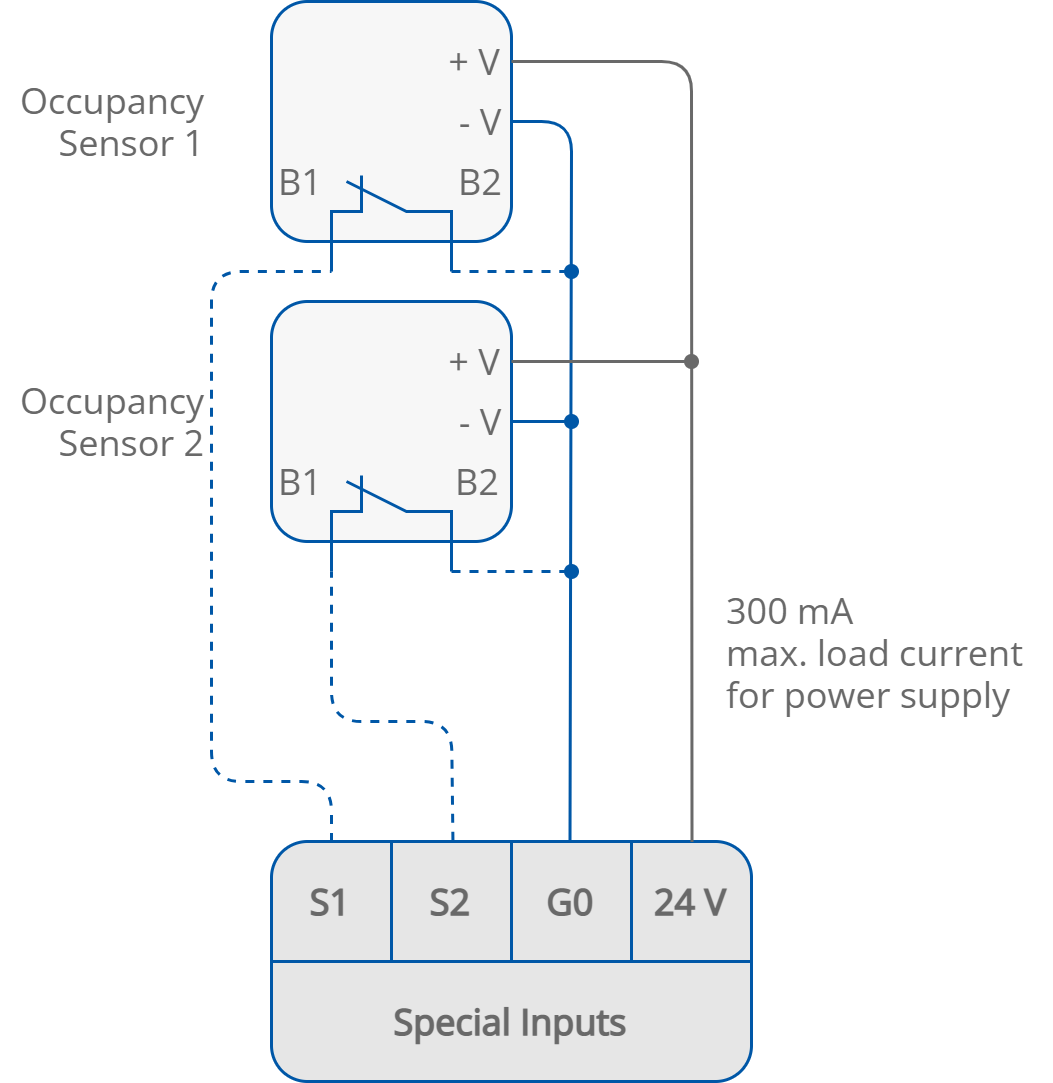

The way of connecting an external motion sensor / presence detector to the special input with 24 V DC power supply output is presented in the figure below.
