LP - Restoring default settings

The article describes how to restore default settings in I/O modules and the LP panel.

I/O Modules

To restore default settings in the I/O modules on all registers, follow the below steps:

Turn off power supply.
Set the 6^th switch on the S3 DIP switch to ON.
Turn the power supply on. The LED diode starts to blink.
Set the 6^th switch on the S3 DIP switch to OFF to restore the default settings.
To stop restoring default settings, turn off the power supply and set the 6^th switch on the S3 DIP switch to OFF.

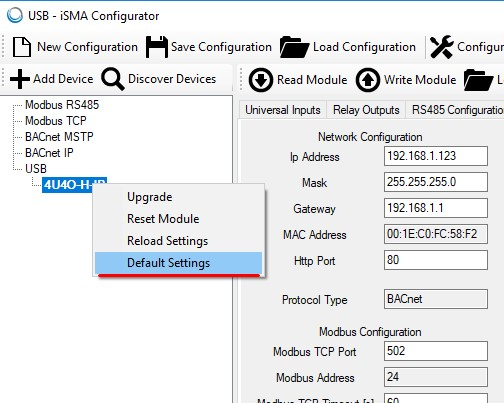

Restoring default settings can also be performed using iSMA Configurator. Use a USB cable to connect to the module and go to the Default Settings option in the context menu as below:

LP Panel

The process is analogical in case of the LP panel. To restore default settings in the LP panel on all registers, follow the below steps:

Turn off power supply.
Set the 1^st DIP switch to ON.
Turn the power supply on. The LCD display starts to blink.
Set the 1^st DIP switch to OFF to restore the default settings.
To stop restoring default settings, turn off the power supply and set the 1^st DIP switch OFF.

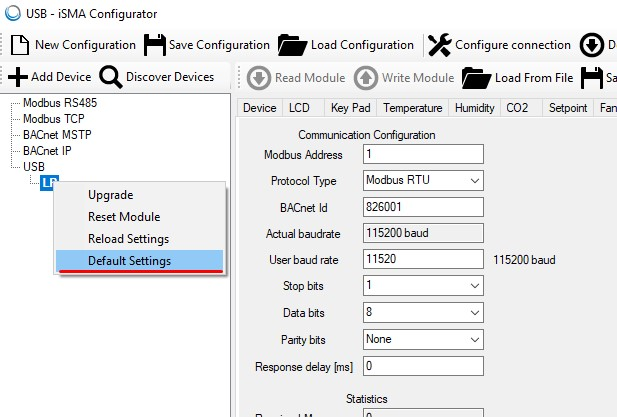

Restoring default settings in the LP panel can also be performed using iSMA Configurator.
