Hardware Specification

Dimensions

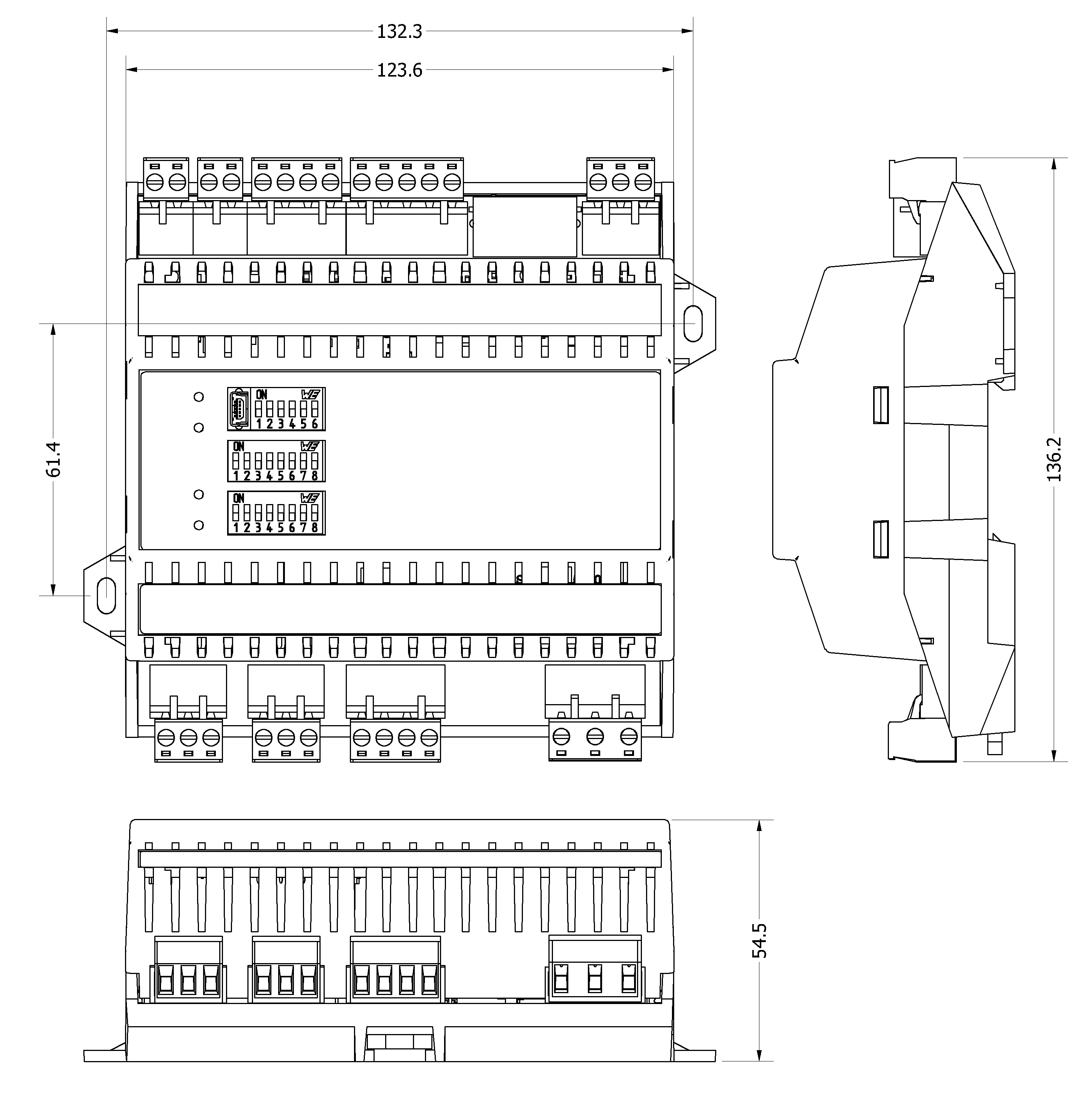

2D1B dimensions

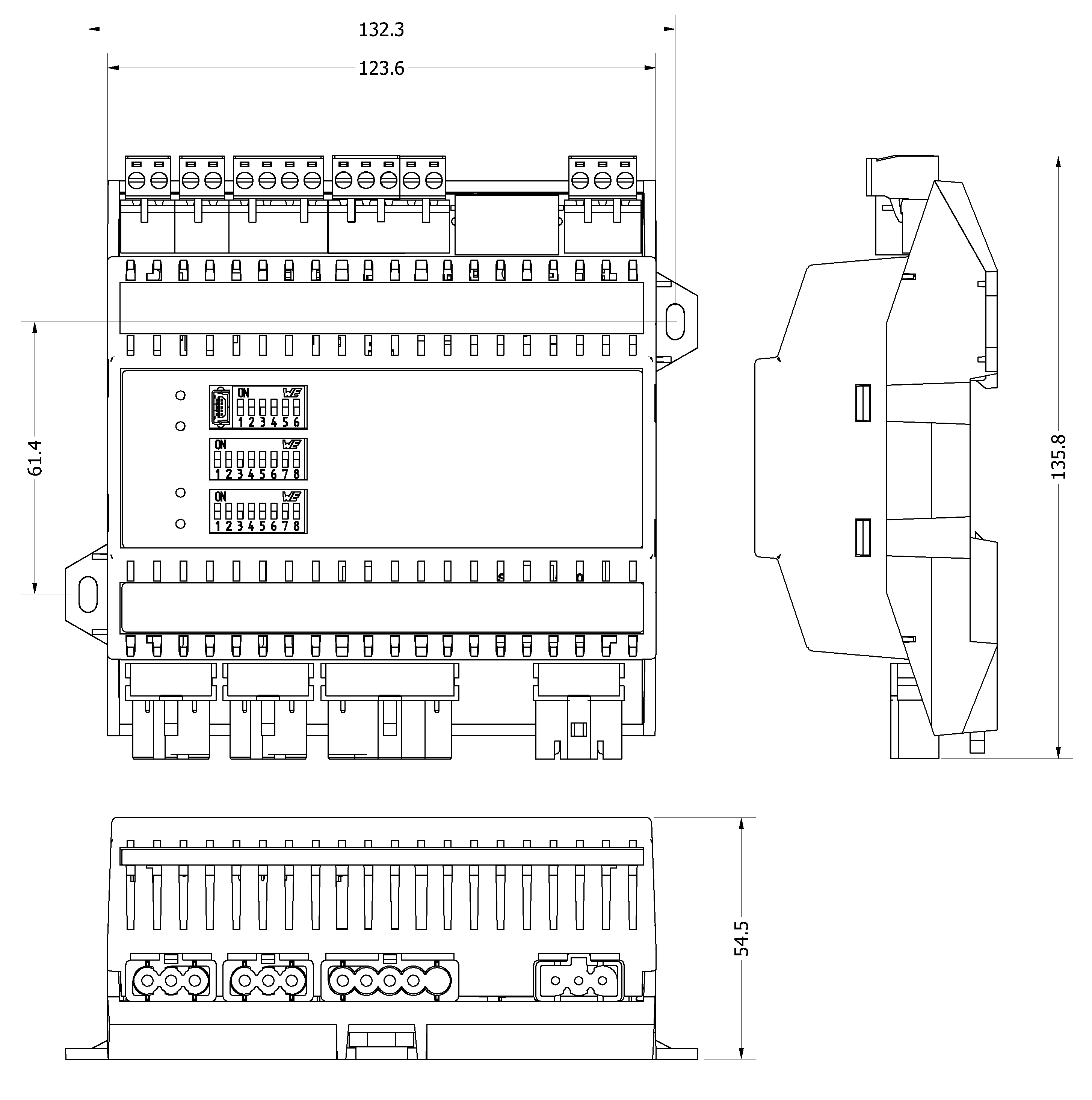

2D1B-WD dimensions

Power Supply

The device is designed to work with 230 V AC power supply. Appropriate circuit breaker for overcurrent protection is 10 A class B.

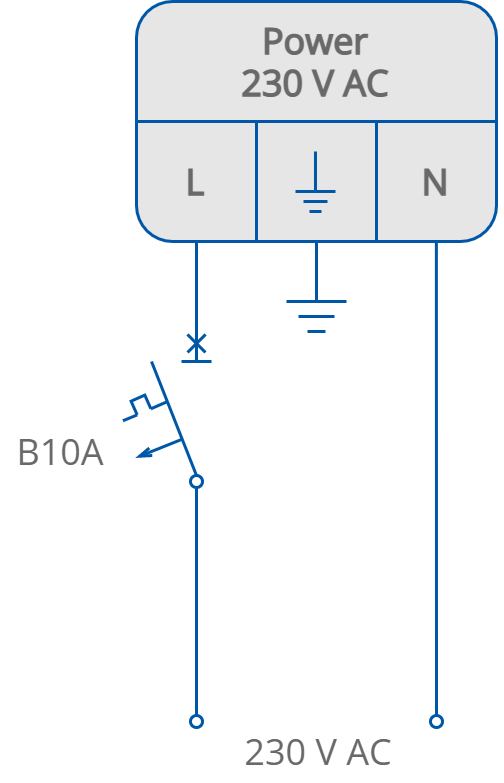

230 V AC power supply connection

WARNING! The maximum current for all the outputs is 8 A!

24 V DC Power Supply for External Equipment

The device is equipped with a 24 V DC 80 mA power supply output dedicated to power motion sensors / presence detectors, which require an external power supply.

The 24 V DC power supply terminal connection is labeled +24, G0, and it is placed next to the special input connectors.

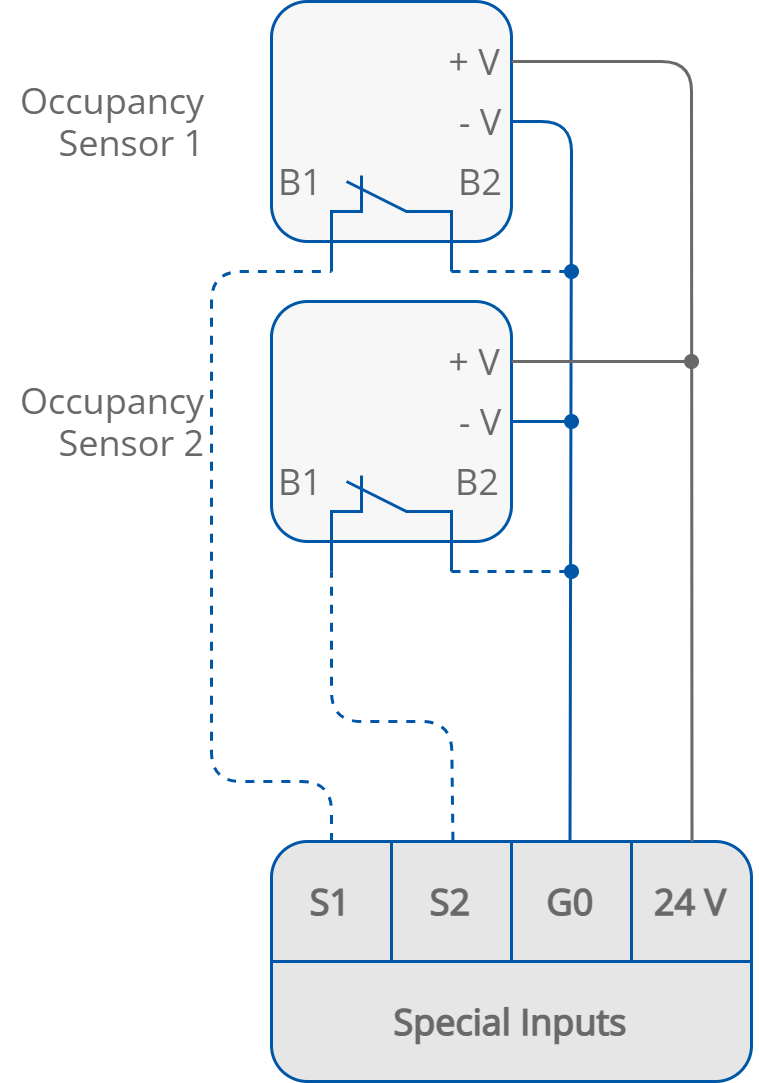

24 V DC power supply connection
