FanSpeed

Note: Component applicable for the LP, Touch Point, and FP panels.

The FanSpeed component is responsible for configuring fan settings in the panel.

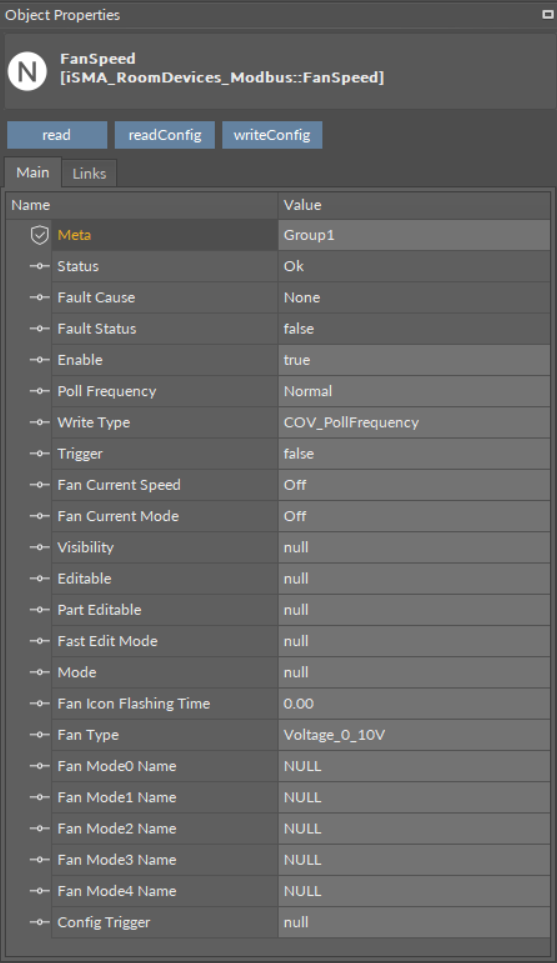

FanSpeed component

The FanSpeed component has the following slots:

  • Status: shows the component’s status;

  • Fault Cause: shows the fault cause description;

  • Fault Status: informs about the point error status (true: point read/write error);

  • Enable: enables or disables the component (true: enabled, false: disabled);

  • Poll Frequency: allows to set the reading poll frequency (fast, normal, slow);

  • Write Type: defines a method of writing values (COV, COV_PollFrequency, PollFrequency, COV_LinkSet);

  • Trigger: allows to force sending values on rising edge;

  • Fan Current Speed: sets the current speed of fan (Off, ManualSpeed1, ManualSpeed2, ManualSpeed3, AutoSpeed1, AutoSpeed2, AutoSpeed3)

  • Fan Current Mode: sets the current mode of fan (Off, ManualSpeed1, ManualSpeed2, ManualSpeed3, Auto).

  • Visibility: allows to activate or deactivate the point on the display (only for the LP panel);

  • Editable: enables or disables editing of a fan speed in the panel;

  • Part Editable: allows to set an editing mode in the panel (FullyEditable, AutoOffMode);

  • Fast Edit Mode: enables a fast edit mode in the panel (only for the LP panel);

  • Mode: identifies a way of controlling the panel (LocalMode, BmsMode);

  • Fan Icon Flashing Time: allows to set a flashing time of icons on the display (only for the LP panel);

  • Fan Type: sets a type of fan (0-10 V, 1-speed, 2-speed, 3-speed);

  • Fan Mode0 Name-Fan Mode4 Name: allows to set different fan mode names (up to 4, only ASCII characters; only for the LP panel);

  • Config Trigger: on rising edge sends configuration parameters to the device components (Editable, Part Editable, Mode, Fan Type).

The FanSpeed component has the following actions:

  • Read: reads the panel’s fan values and updates the Fan Current Speed and Fan Current Mode slots;

  • Read Config: reads configuration parameters from the panel (Editable, Part Editable, Mode, Fan Type);

  • Write Config: writes configuration parameters to the panel (Editable, Part Editable, Mode, Fan Type).
