DIPSwitch

The DIPSwitch is a component designed to read states of eight binary signals set by the CFG DIP switch, mounted in the iSMA-B-FCU device. Using the CFG DIP switch is recommended to manage the configuration of the application. The DIPSwitch component has to be placed under the LocalIO component.

The DIPSwitch component has the following slots:

• Status: indicates the status of the DIPSwitch component;

• Fault Cause: shows the fault cause description;

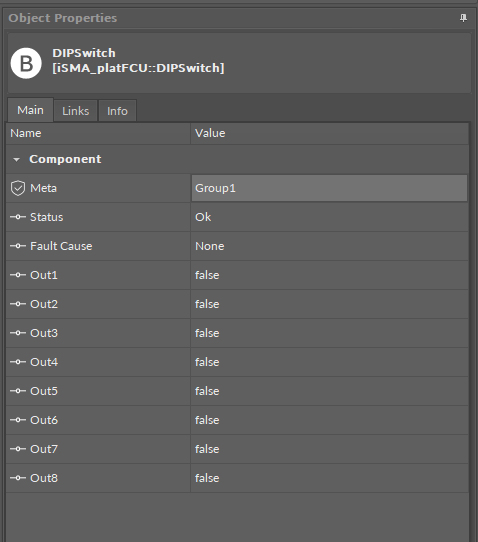

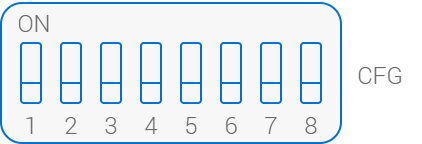

• Out1-Out8: displays the actual states of each binary signal from the GFG DIP switch, according to the figure below:
